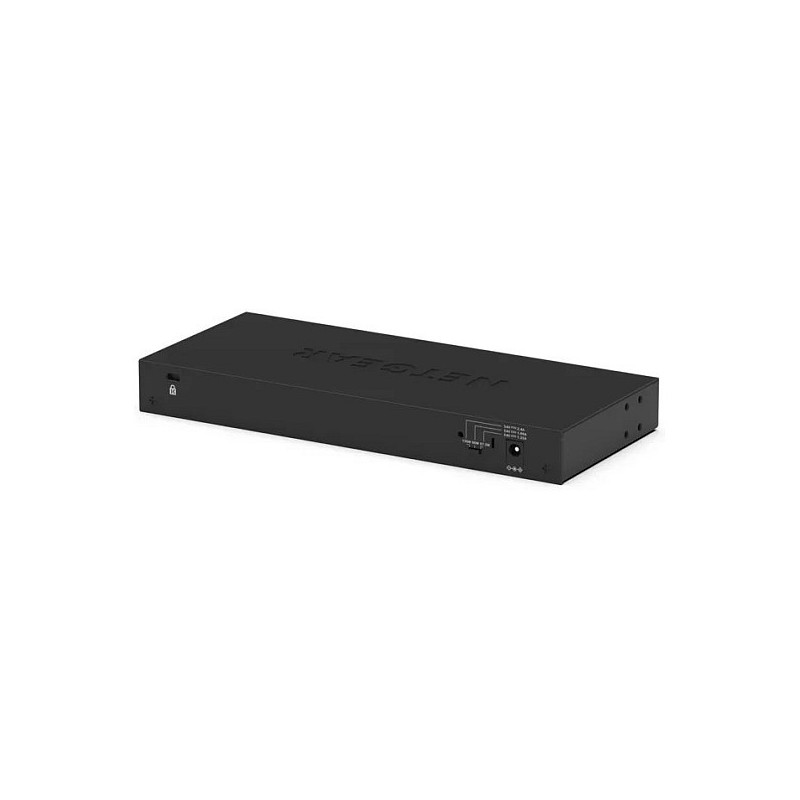

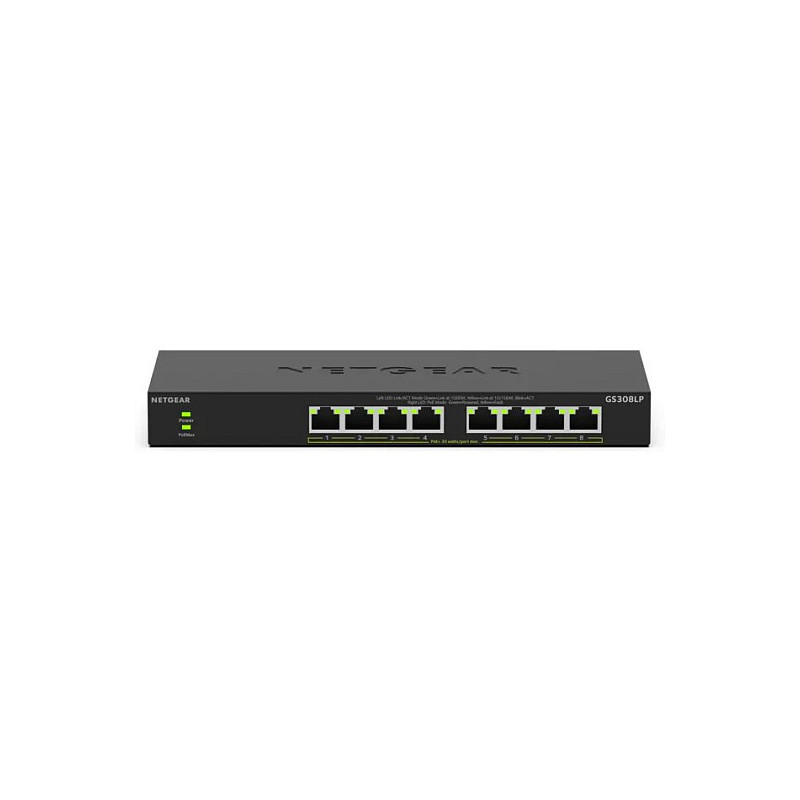

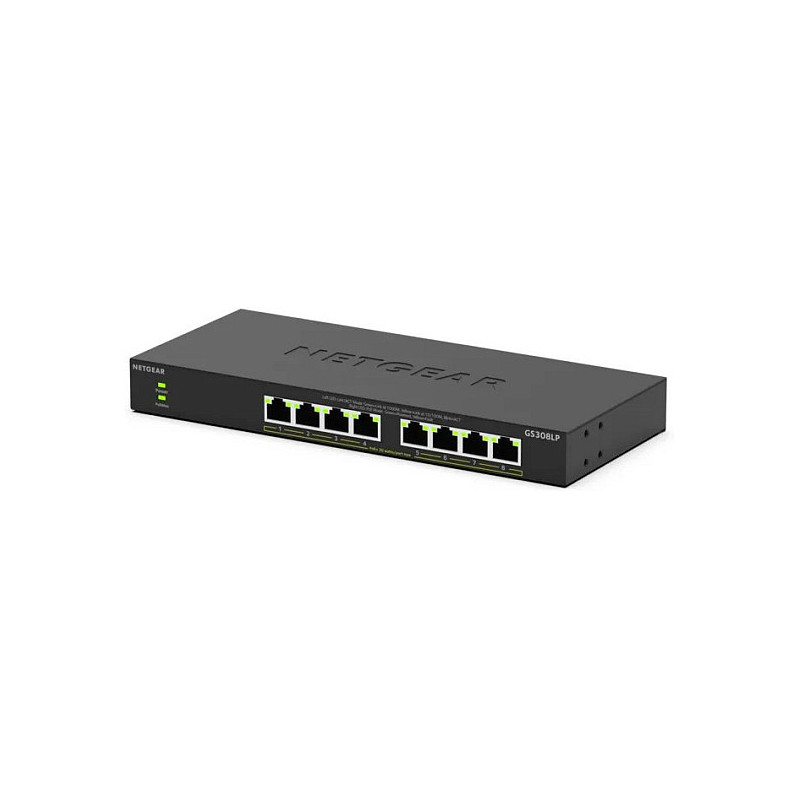

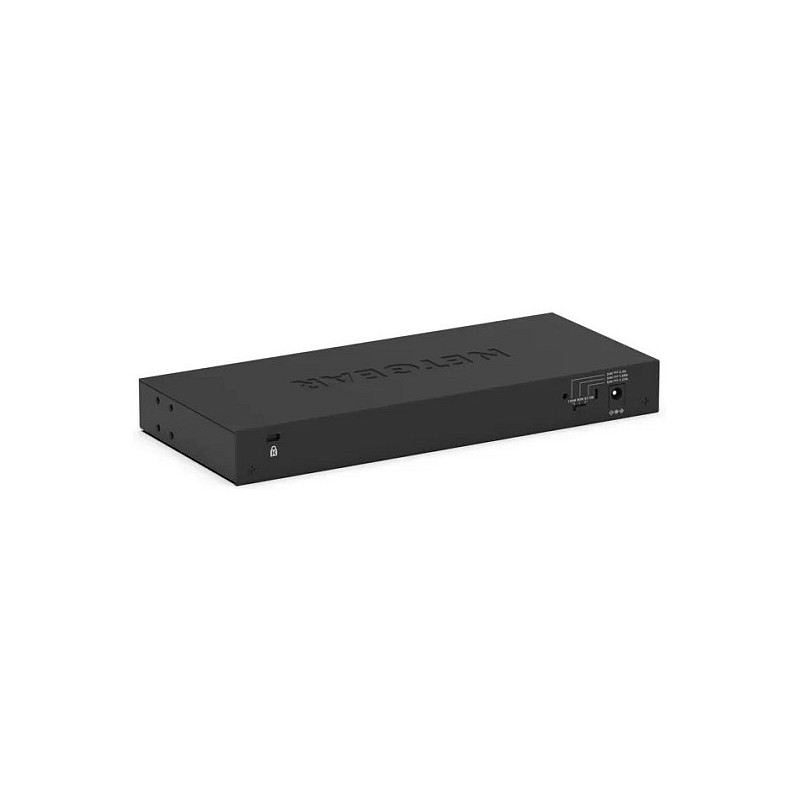

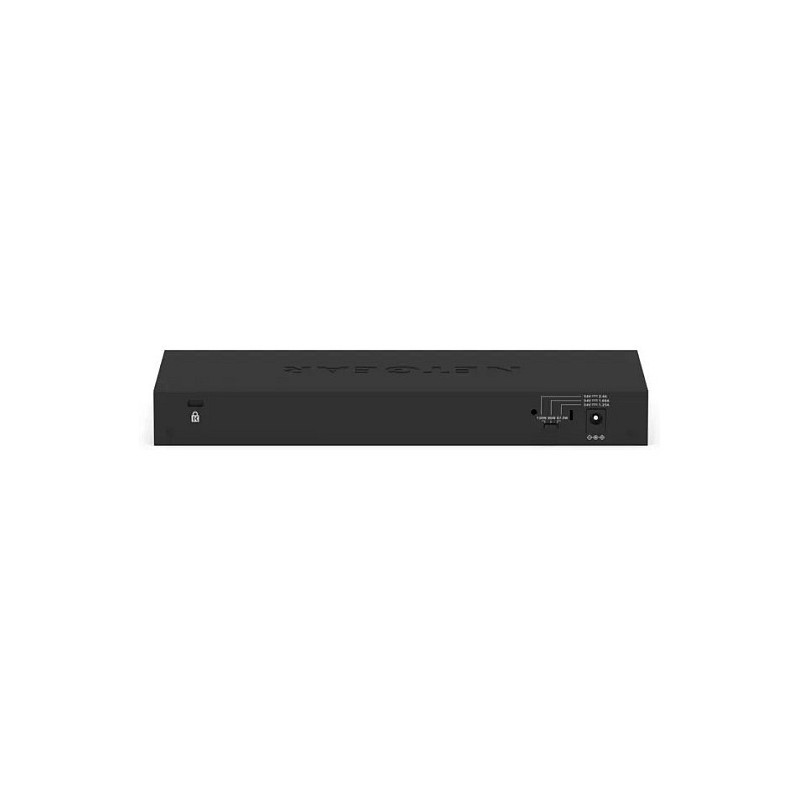

NETGEAR GS308LP

NETGEAR GS308LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: Desktop
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Feature: Traffic classification

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-sensing
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 16 Gbit/s
Throughput: 16 Gbit/s
Forwarding rate: 1.488 Mpps
MAC address table: 4000 entries
Latency (1 Gbps): 2.6 µs
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1488000 pps
Packet buffer memory: 0.192 MB

Security

Queue scheduling algorithms: Weighted Round Robin (WRR)
MAC address entries: Dynamic MAC address entries

Design

Feature: Rack mounting
Form factor: Desktop
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

Performance

Feature: Fanless
Mean time between failures (MTBF): 2752476 h

Power

Power source: DC
Feature: Power supply included
Number of power supply units: 1
DC input voltage: 54 V
Input current: 1.25 A
Input voltage: 54 V
Power consumption (max): 67.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 230.85 BTU/h

Weight dimensions

Width: 236 mm
Depth: 102 mm
Height: 27 mm
Weight: 600 g

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD)
