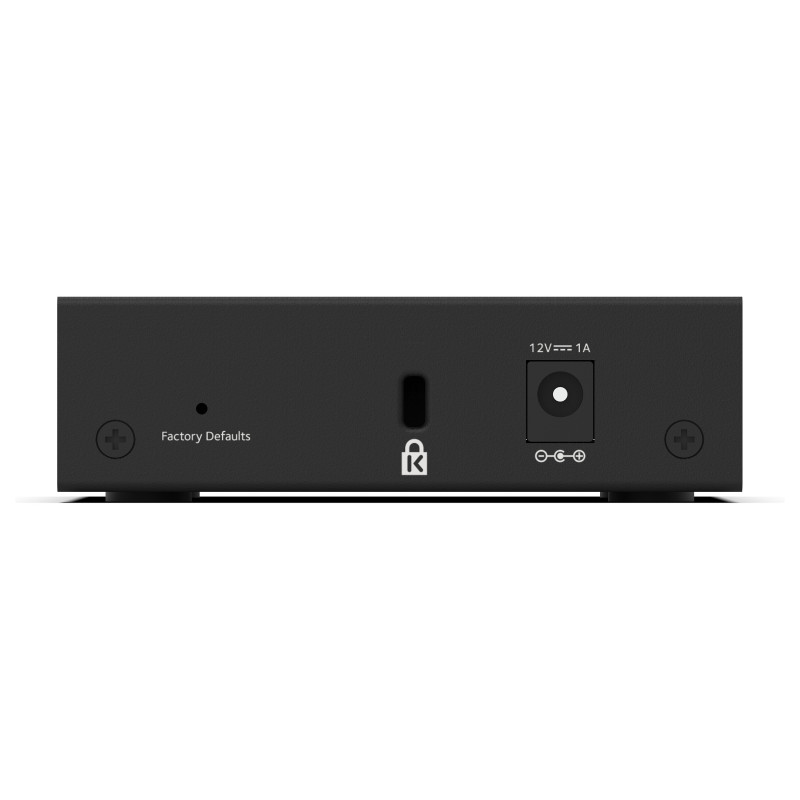

NETGEAR GS305E

NETGEAR GS305E. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Virtual Cable Test (VCT)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Rate limiting
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Port-based VLAN
Number of VLANs: 64

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Feature: Password protection
Feature: DoS attack prevention

Design

Product colour: Black
LED indicators: Activity, Link, Power, Speed, System

Performance

Noise level: 0 dB
Buffer size: 128 KB
Mean time between failures (MTBF): 2531294 h

Other features

Warranty period: 3 year(s)

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 94 mm
Depth: 100 mm
Height: 27 mm
Weight: 250 g

Packaging data

Package type: Box
Package width: 153 mm
Package depth: 237 mm
Package height: 61 mm
Package weight: 600 g

Technical details

Shipping (inner) case height: 28 cm
Shipping (inner) case width: 49.7 cm
Shipping (inner) case length: 34.4 cm
Shipping (inner) case net weight: 10.1 kg
Products per shipping (inner) case: 15 pc(s)

Logistics data

Master (outer) case width: 344 mm
Master (outer) case length: 497 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 10.2 kg
Products per master (outer) case: 15 pc(s)
