NETGEAR GS305

NETGEAR GS305. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Management features

Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

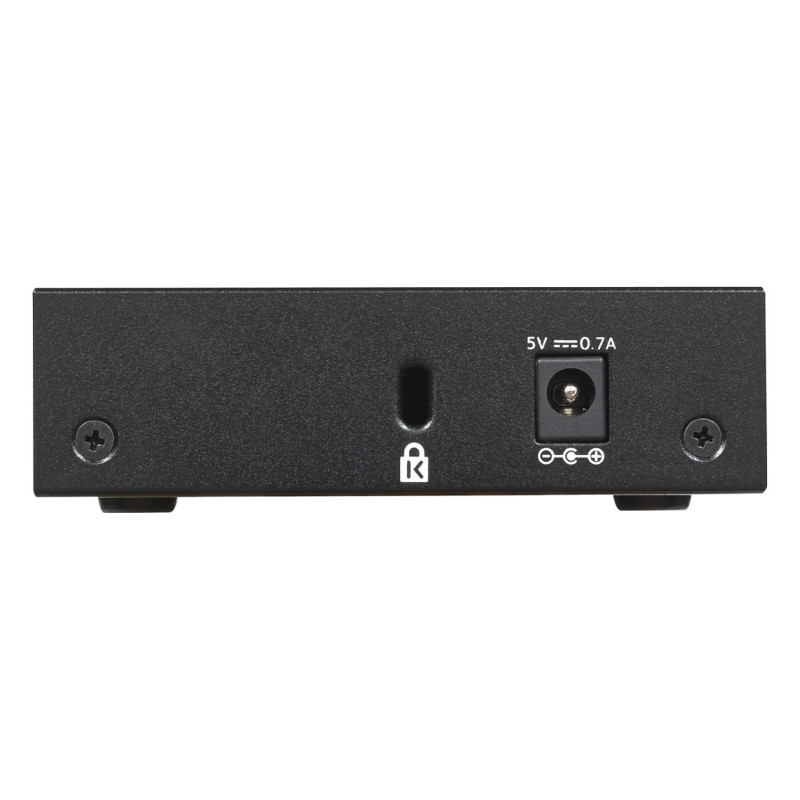

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-sensing
Feature: Cable length detection

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 1.448 Mpps
MAC address table: 2000 entries
Latency (1 Gbps): 2.6 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 128 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
Feature: Wall mountable

Performance

Mean time between failures (MTBF): 3831422 h

Power

Power consumption (max): 2.15 W

Other features

Warranty period: 3 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 7.35 BTU/h

Weight & dimensions

Width: 101 mm
Depth: 94 mm
Height: 29 mm
Weight: 250 g

Technical details

Shipping (inner) case height: 35.7 cm
Shipping (inner) case width: 49.9 cm
Shipping (inner) case length: 31.8 cm
Shipping (inner) case net weight: 10.7 kg
Products per shipping (inner) case: 20 pc(s)

Certificates

Certification: CE MarkFCC Part 15 Class BIC Class BRCMVCCI

Logistics data

Harmonized System (HS) code: 85176990
