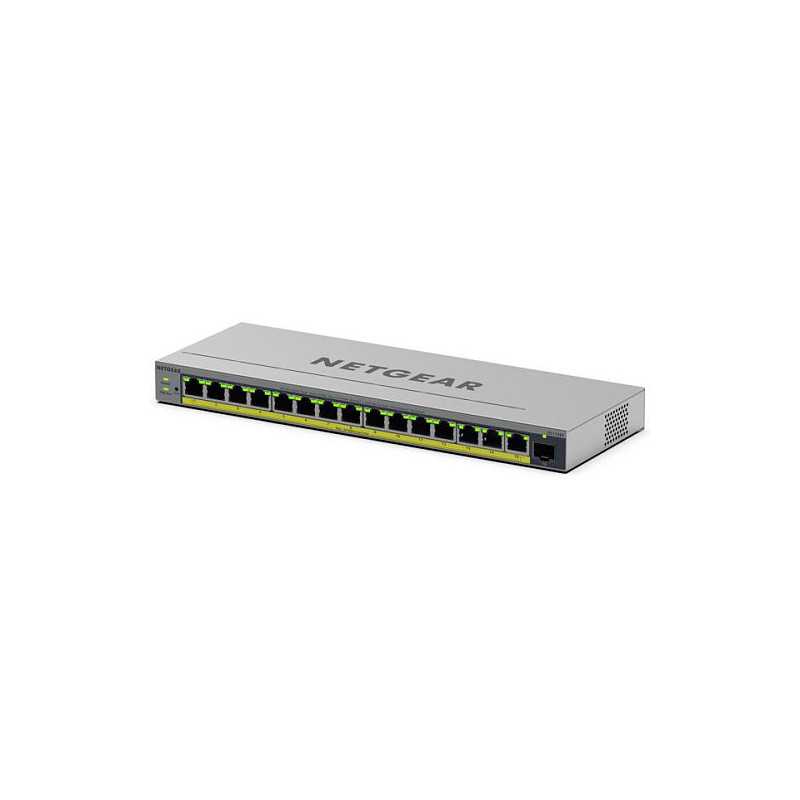

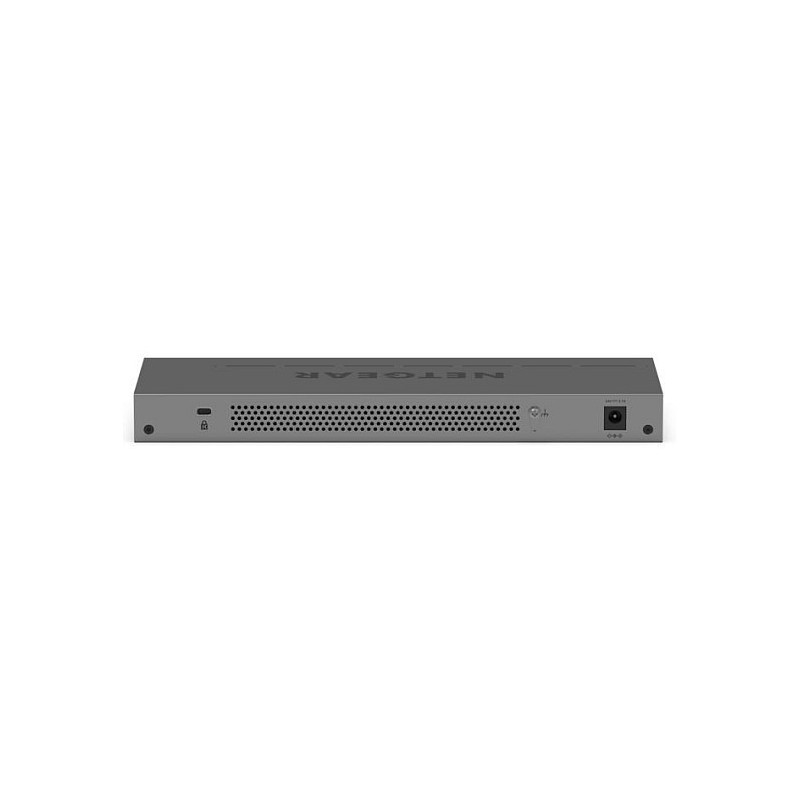

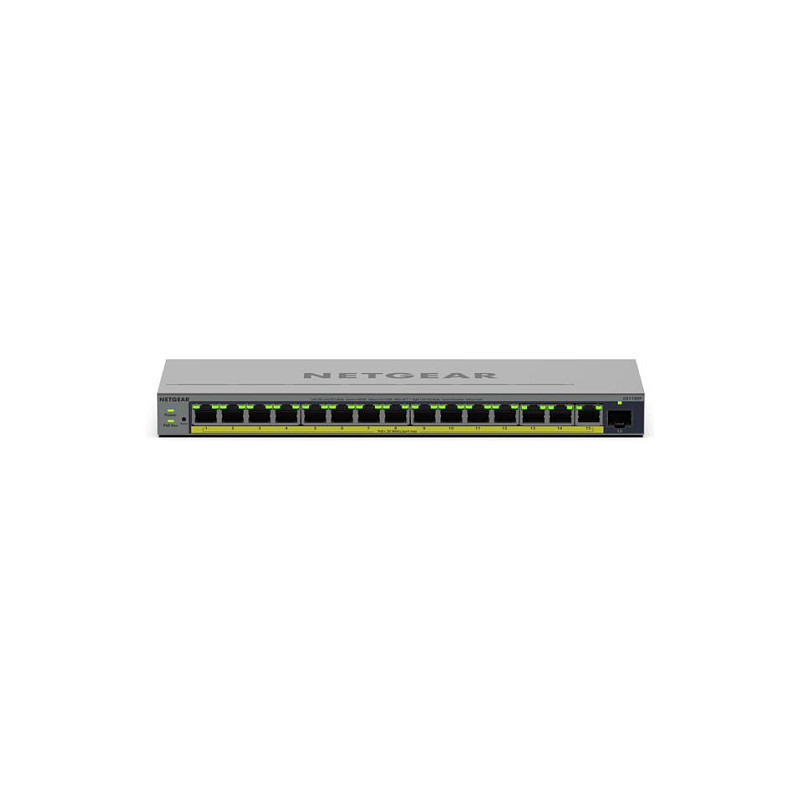

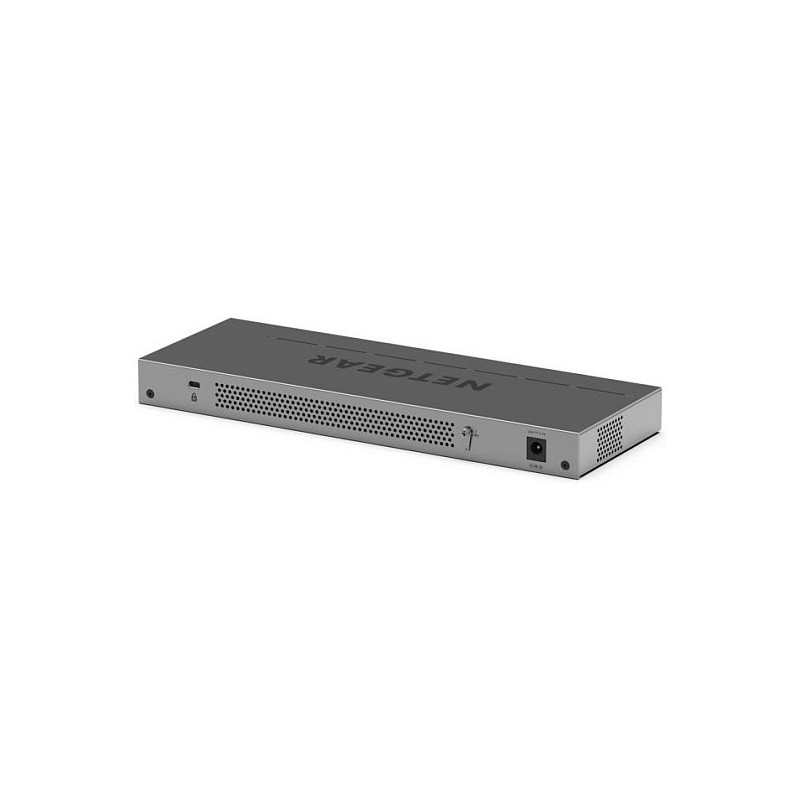

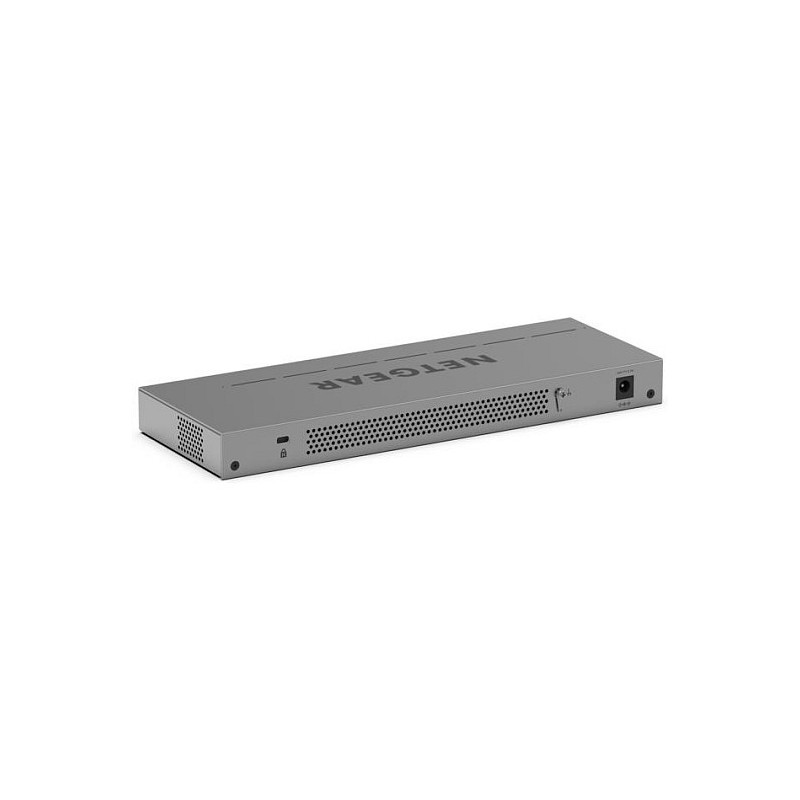

NETGEAR GS116EP

NETGEAR GS116EP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 1. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az. Power over Ethernet (PoE)

GIGABIT ETHERNET AND FIBER

15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections

EASY POE CONTROLS

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices

VERSATILE MOUNTING OPTIONS

Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 1
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.1p, IEEE 802.3az
Feature: Rate limiting
Ethernet LAN data rates: 1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN
Number of VLANs: 64

Data transmission

Switching capacity: 1 Gbit/s
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

Feature: IGMP snooping
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 128

Design

Product colour: Grey
Housing material: Metal

Performance

Mean time between failures (MTBF): 784742 h

Power

Power source: AC/DC
Power consumption (max): 198.7 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 15
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 180 W

Other features

Bandwidth: 32 Gbit/s
Warranty period: 5 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 286 mm
Depth: 101 mm
Height: 27 mm
Weight: 830 g

Packaging content

Feature: Quick start guide
Feature: Manual

Certificates

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, VCCI
