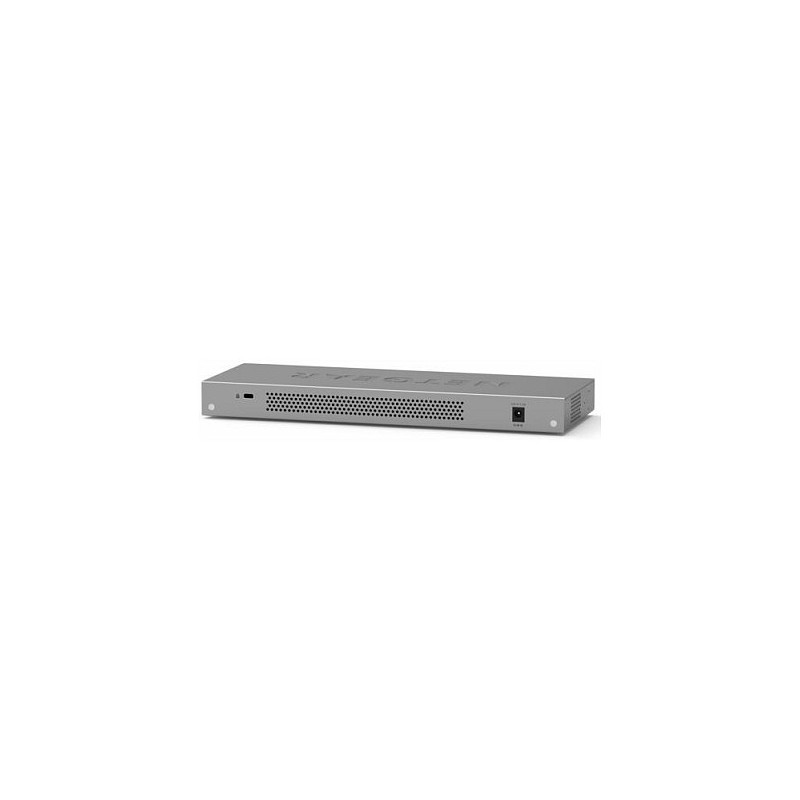

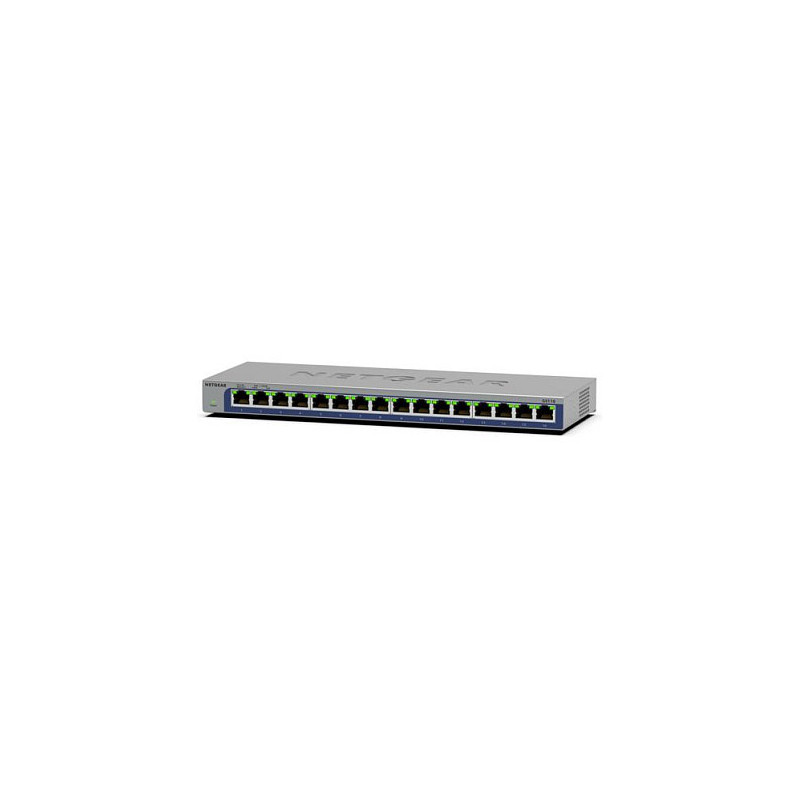

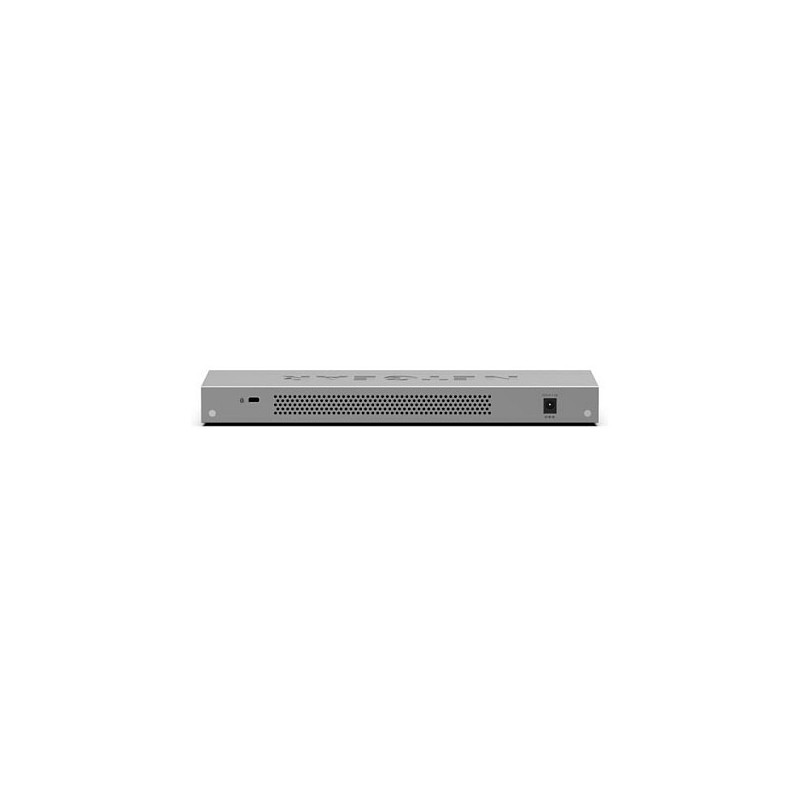

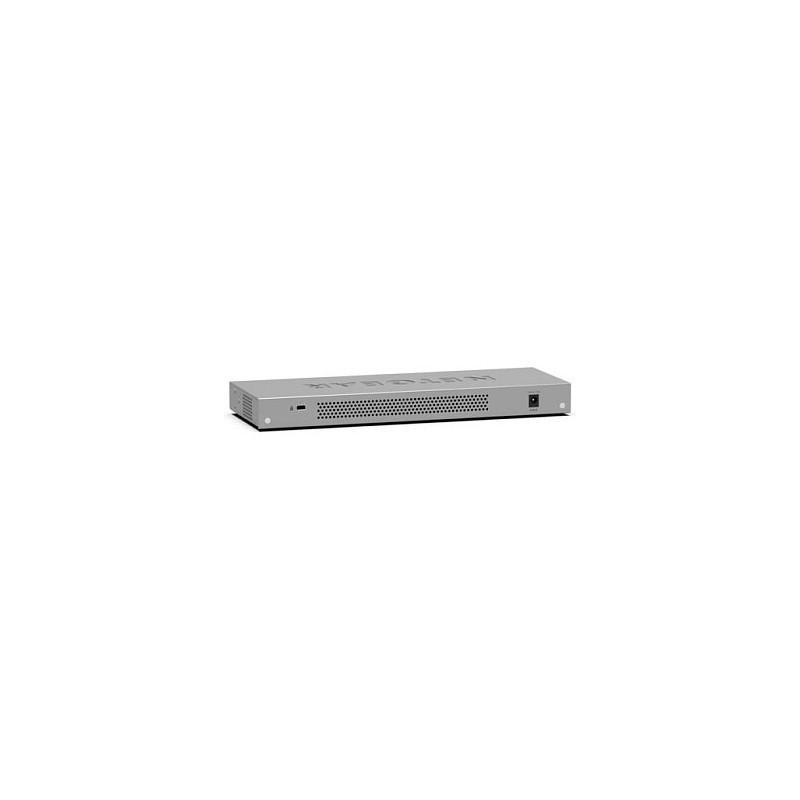

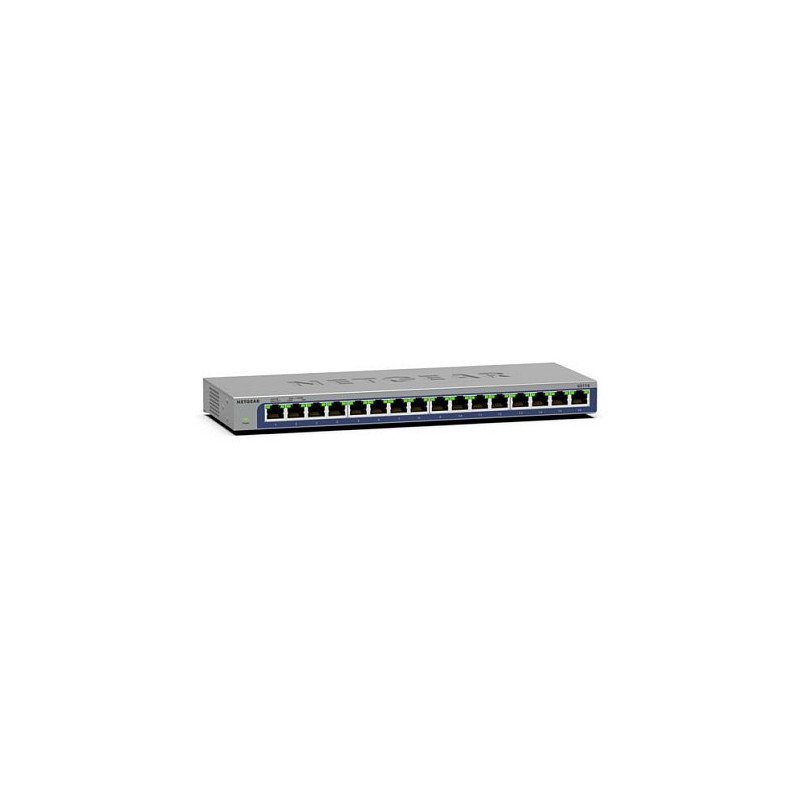

NETGEAR GS116

NETGEAR GS116. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance

Management features

Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Port mirroring
Feature: Rate limiting
Feature: VLAN support
Virtual LAN features: Port-based VLAN

Data transmission

Feature: Jumbo frames support

Security

Feature: IGMP snooping

Design

Product colour: Black
Safety: CE/LVD, EN 60950, CB, CCC
Electromagnetic compatibility: CE mark (commercial), EN 55022 (CISPR 22) Class A, FCC Part 15 Class A, VCCI Class A, C-Tick

Performance

Compatible operating systems: Microsoft Windows 7/Vista/XP

Power

Input current: 1.5 A
Input voltage: 12 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 286 mm
Depth: 102 mm
Height: 27 mm
Weight: 890 g

Packaging content

Feature: Quick start guide
Feature: User guide
Feature: Manual

Logistics data

Harmonized System (HS) code: 85176990
