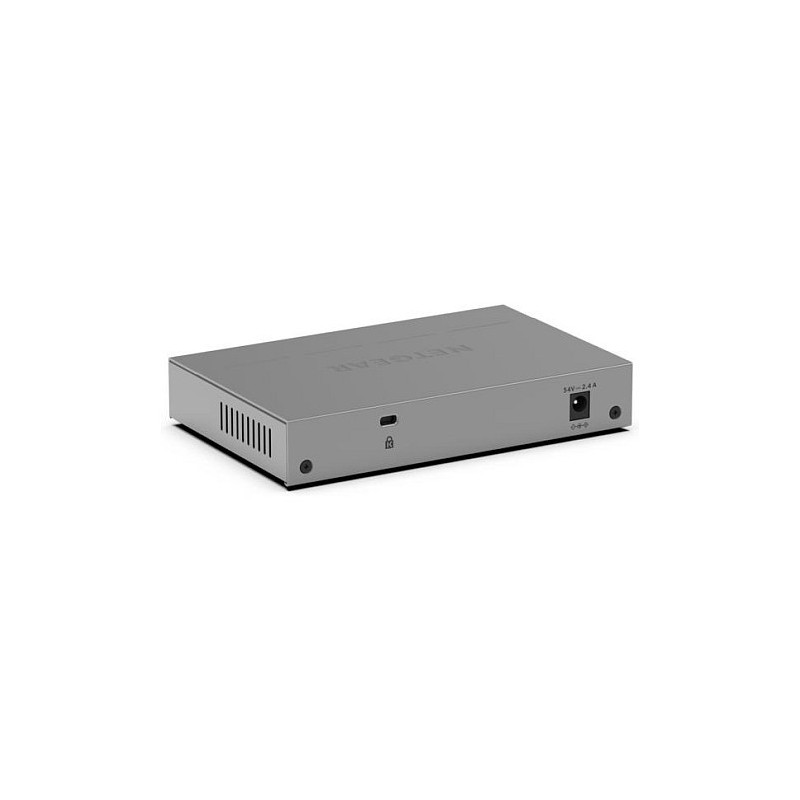

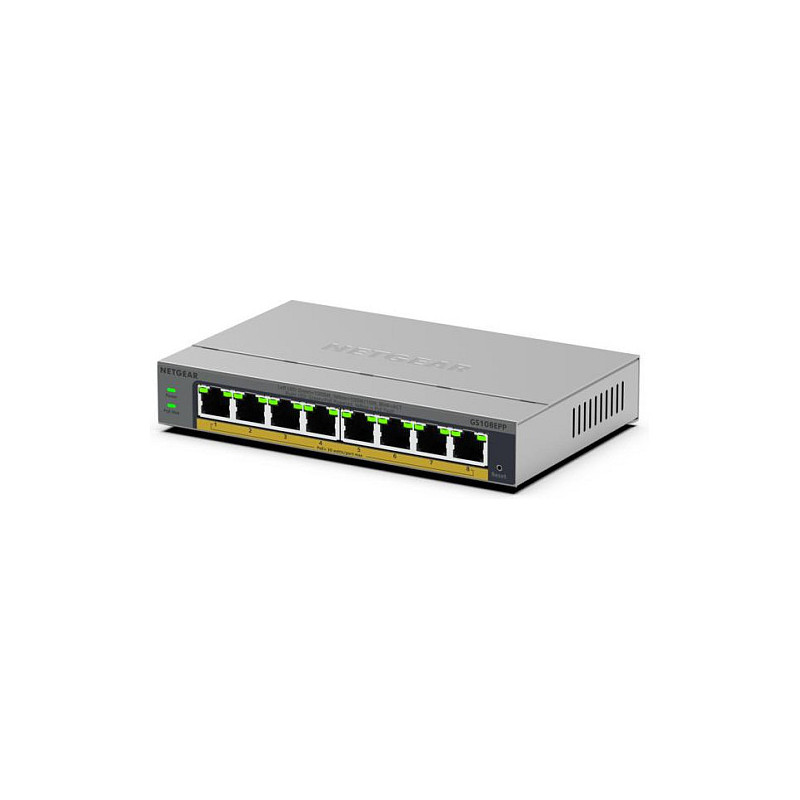

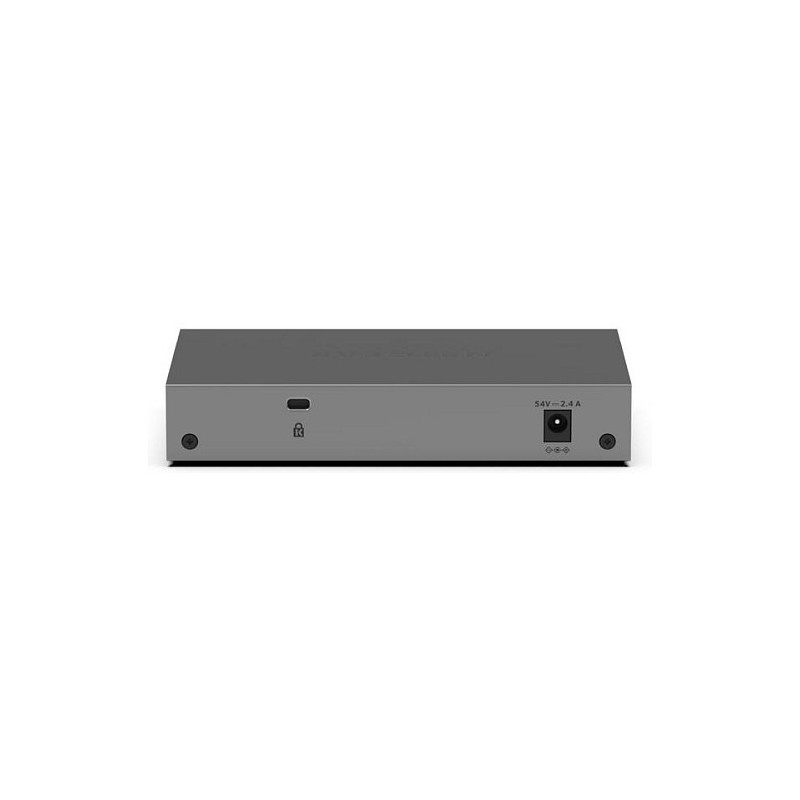

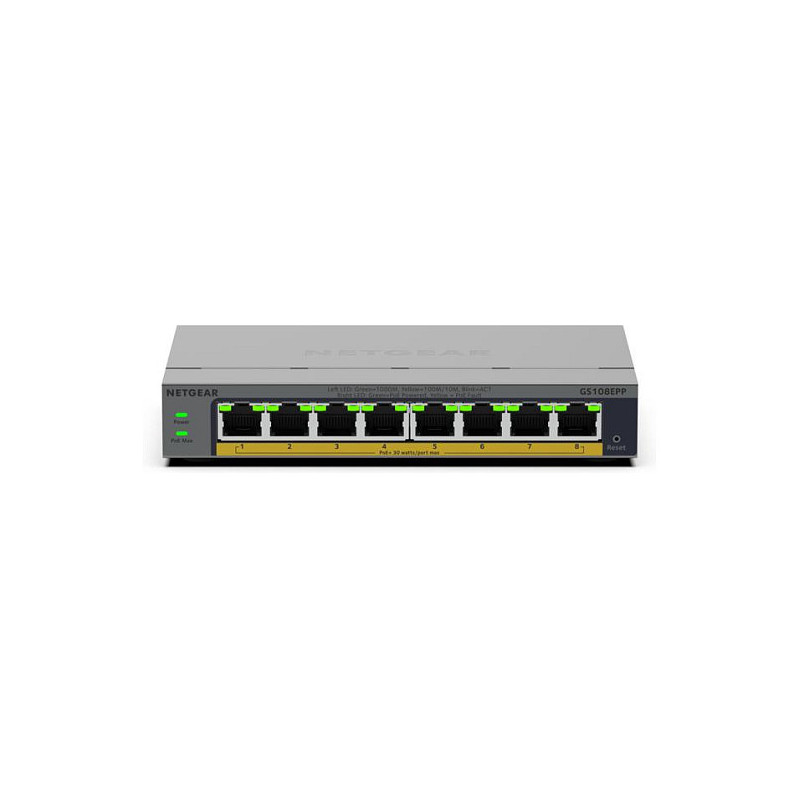

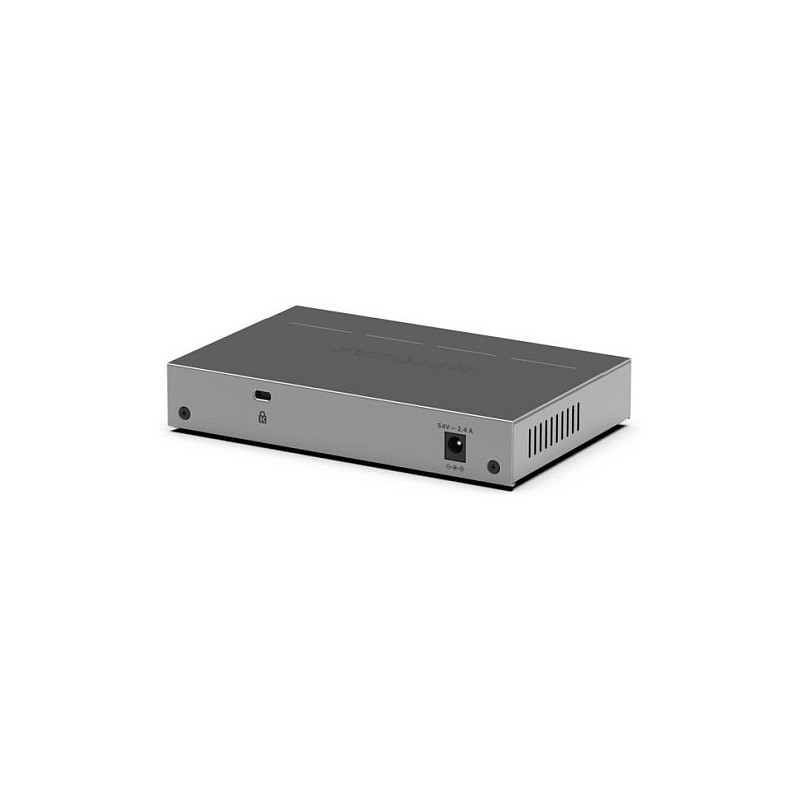

NETGEAR GS108EPP

NETGEAR GS108EPP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 54 V. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting

EASY POE CONTROLS

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices

GIGABIT ETHERNET

5 ports provide gigabit Ethernet connectivity to your devices

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: VLAN support

Data transmission

MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping

Multicast features

Multicast MAC address table: 4000 entries

Design

Form factor: Desktop/Wall-Mounting
Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, PoE, Power, Speed, Status

Performance

Feature: Fanless
Mean time between failures (MTBF): 842428 h

Power

Power source: AC/DC
DC input voltage: 54 V
Input current: 1.66 A
Power consumption (max): 141.4 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 123 W

Other features

Bandwidth: 10 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 3.24 BTU/h

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 27 mm
Weight: 400 g

Packaging content

Feature: Quick start guide
Feature: Manual

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC)
Certification: CB, CE LVD, CSA
