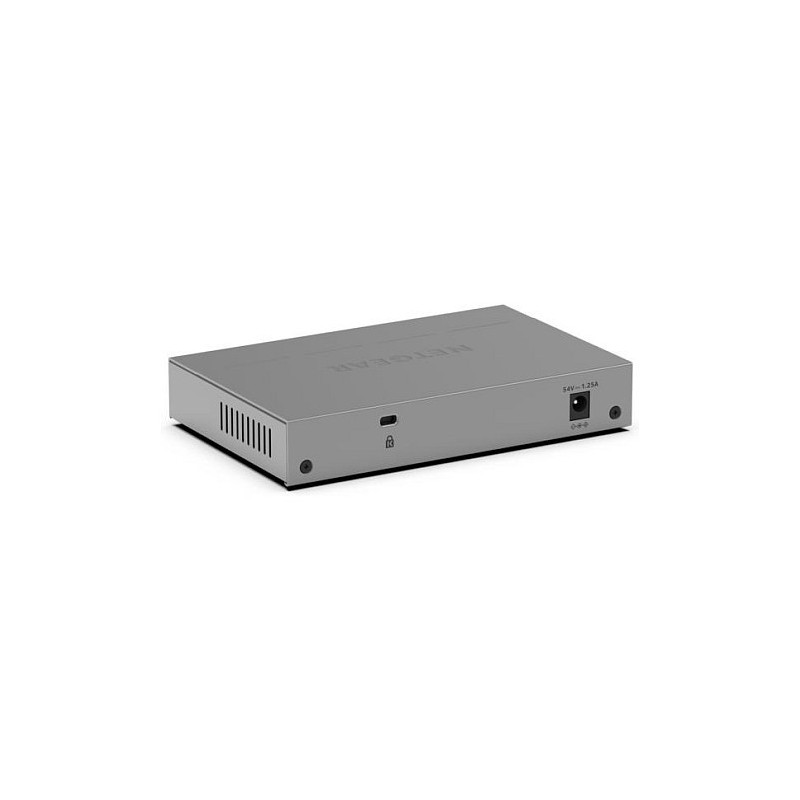

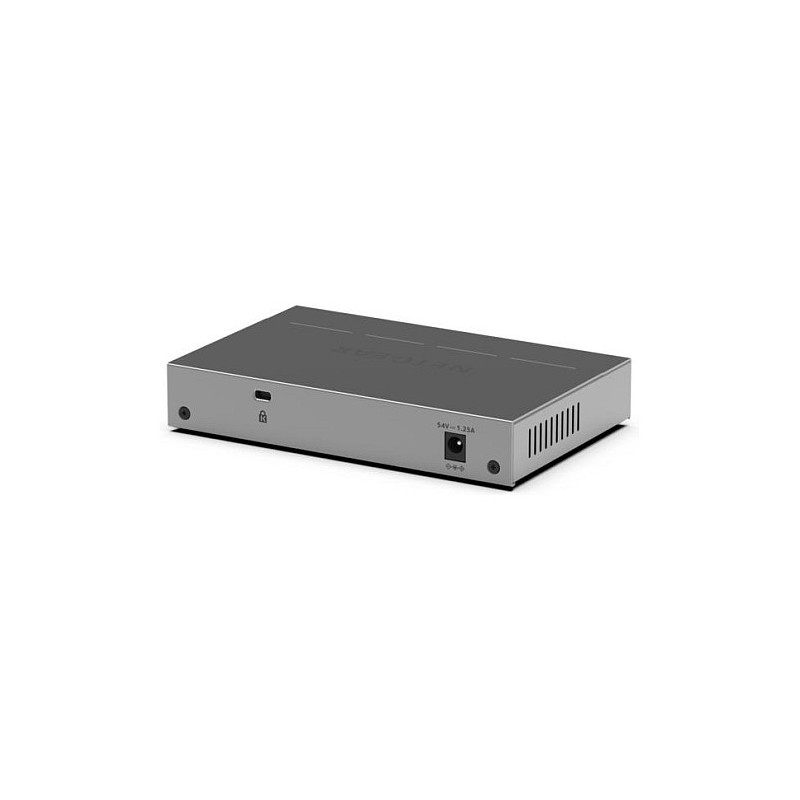

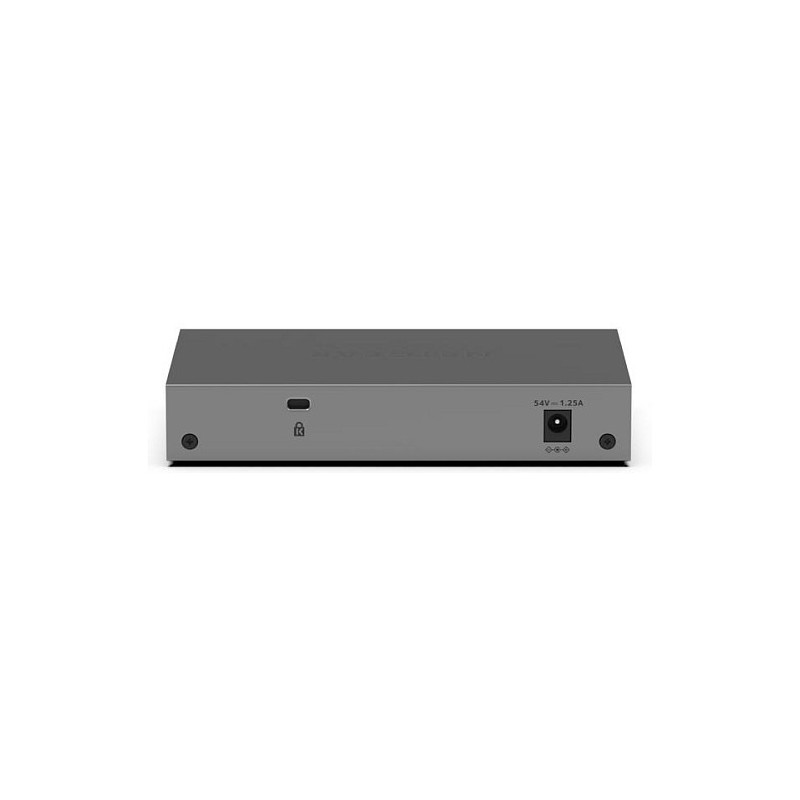

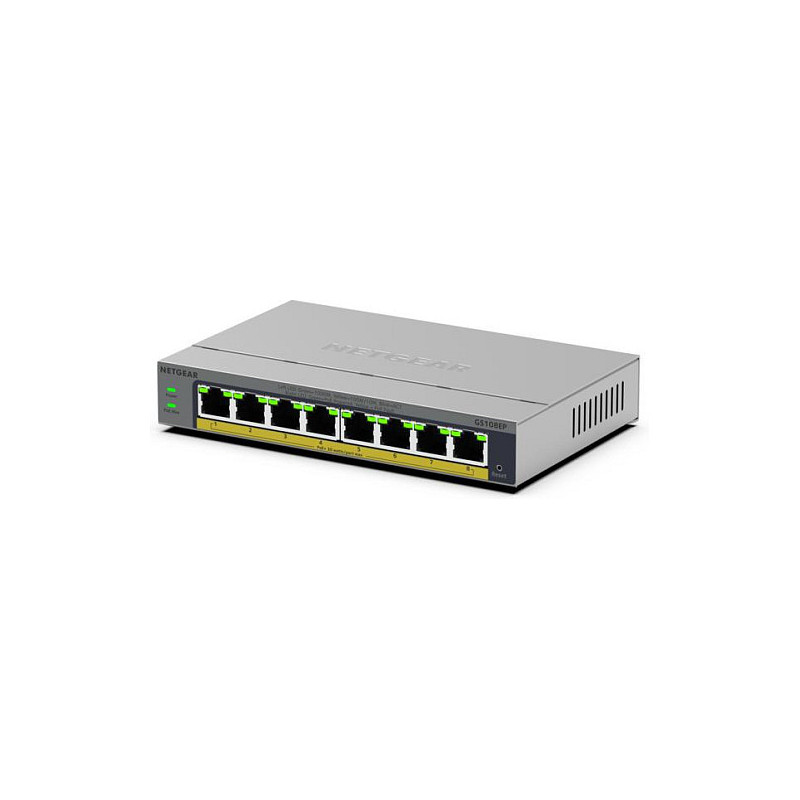

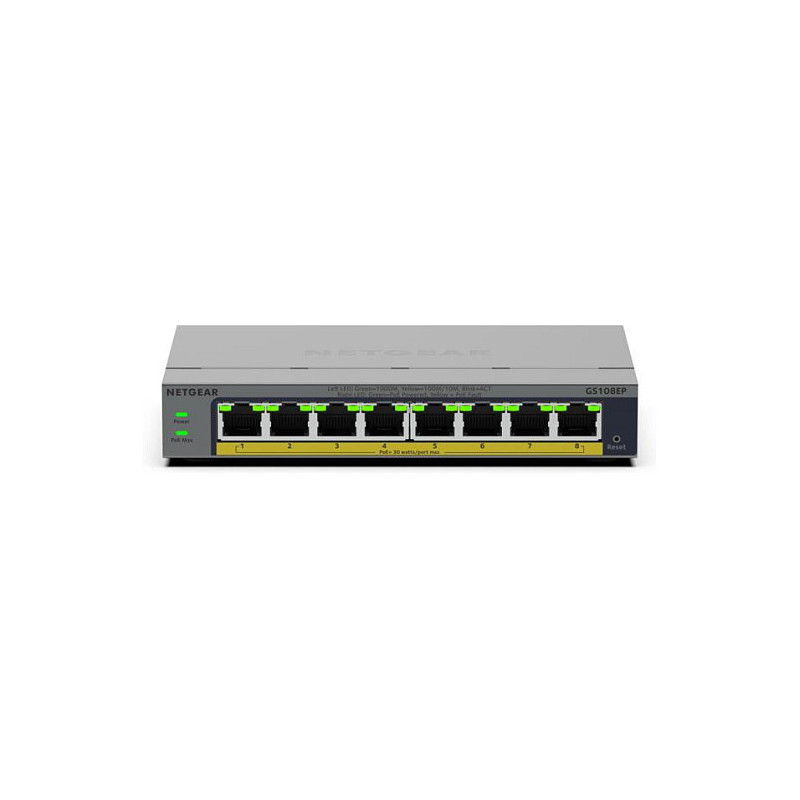

NETGEAR GS108EP

NETGEAR GS108EP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az

More Capabilities beyond Plug-and-play Connectivity

Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited confi guration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.

Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS108E switch comes in a sturdy metal case with a fan-less design for silent operation.

NETGEAR Green

- Up to 60% lower power consumption than the non-Green version;
- Auto power-down and cable-length detection for energy savings;
- Packaging manufactured with at least 80% recycled materials.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az
Feature: Port mirroring
Feature: Port trunking
Feature: Flow control support
Feature: Rate limiting
Feature: VLAN support
Virtual LAN features: Port-based VLAN
Number of VLANs: 64

Data transmission

Supported data transfer rates: 10/100/1000 Mbps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Password protection
Queue scheduling algorithms: Priority queuing (PQ), Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Number of multicast groups filtered: 128

Design

Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, PoE, Power, Speed, System

Performance

Mean time between failures (MTBF): 859126 h

Power

Power source: AC/DC

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 62 W

Other features

Connectivity technology: Wired
Bandwidth: 16 Gbit/s
Power requirements: 100 - 240 VAC
Networking features: Ethernet, Fast Ethernet, Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Weight & dimensions

Weight: 522 g

Certificates

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, VCCI
Certification: CE, EN, FCC, VCCI
