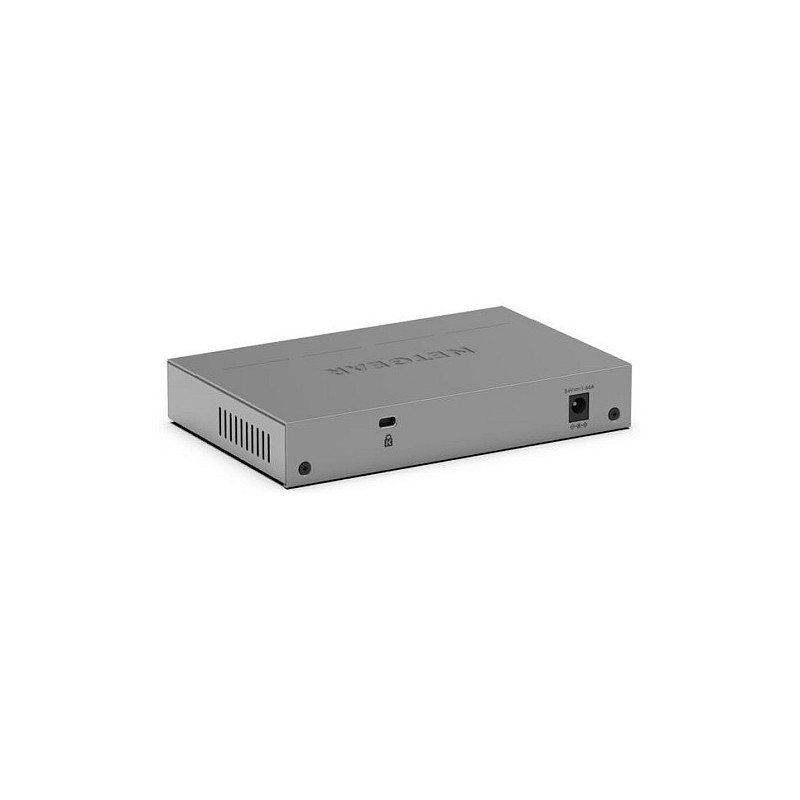

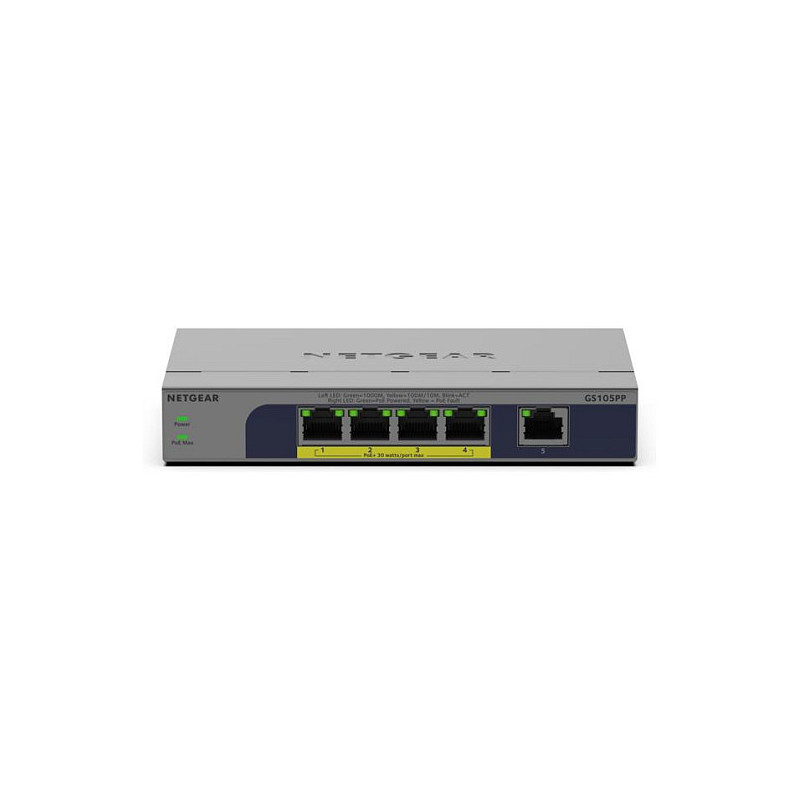

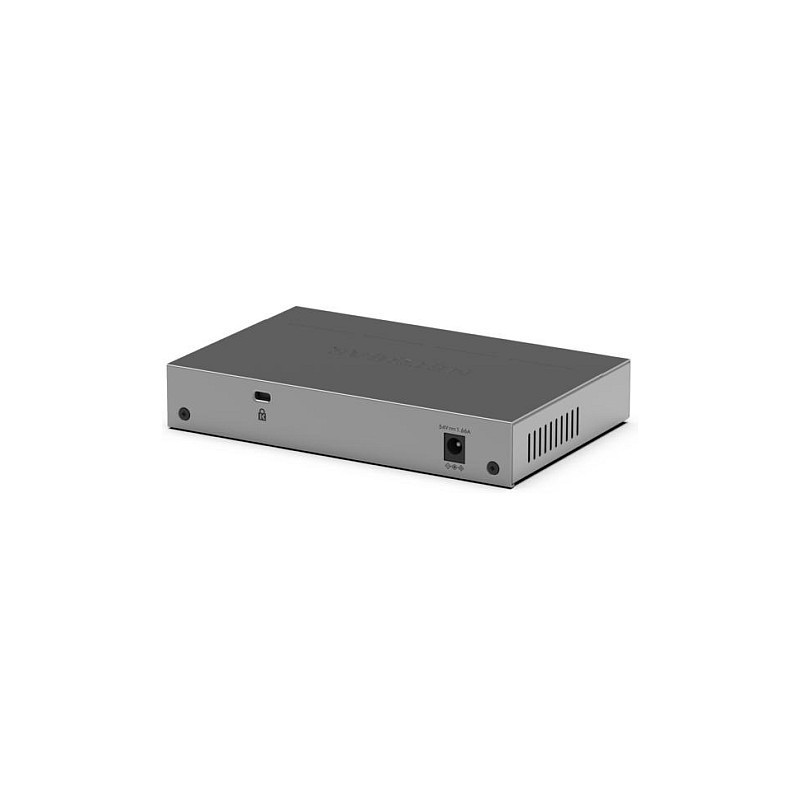

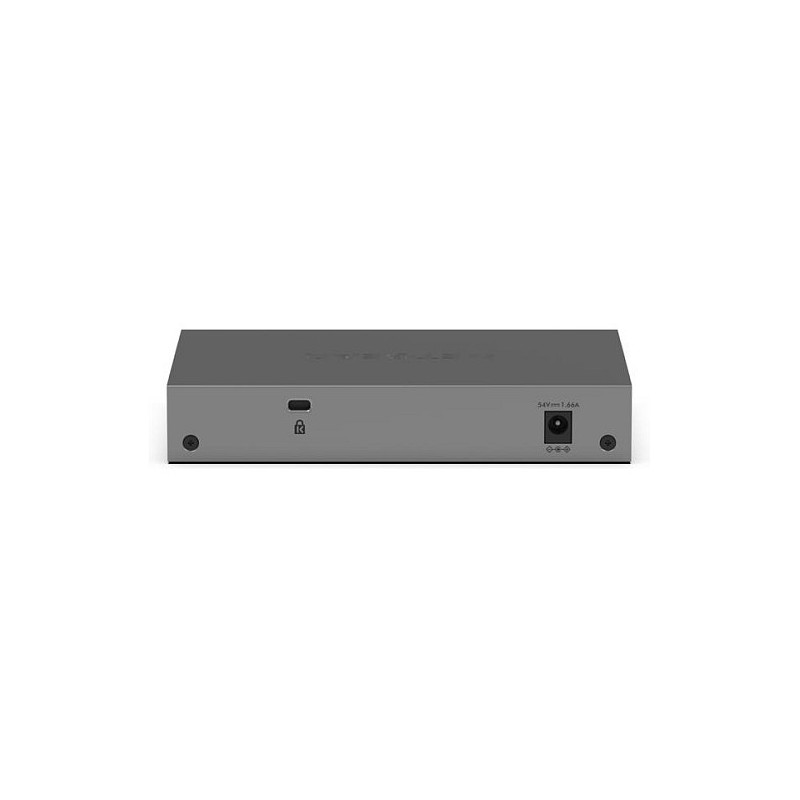

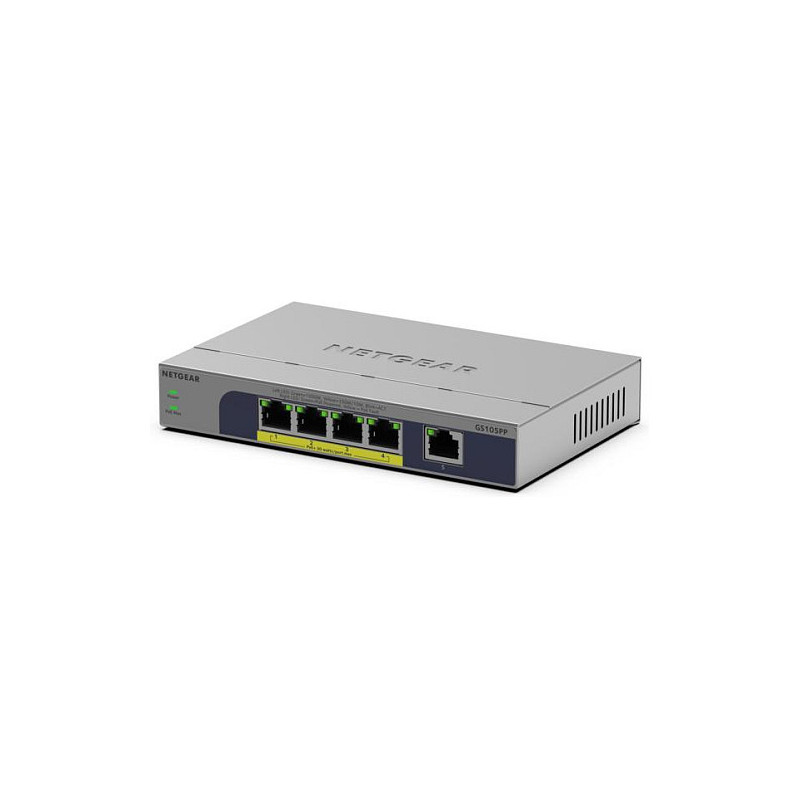

NETGEAR GS105PP

NETGEAR GS105PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 54 V. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting

POWER-OVER-ETHERNET

4 PoE+ ports delivering up to 30W per port with a 83W total power budget for wireless APs, IP Cameras, IP Phones and much more.

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING

Non-blocking switching architecture for maximum throughput at wire speed

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS

Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: VLAN support

Data transmission

MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.128 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping

Design

Form factor: Desktop/Wall-Mounting
Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, PoE, Power, Speed, Status

Performance

Feature: Fanless
Mean time between failures (MTBF): 4113947 h

Power

Power source: AC/DC
DC input voltage: 54 V
Input current: 1.66 A
Power consumption (max): 67.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 83 W

Other features

Bandwidth: 10 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 3.24 BTU/h

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 27 mm
Weight: 400 g

Packaging content

Feature: Quick start guide

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC)
Certification: CB, CE LVD, CSA
