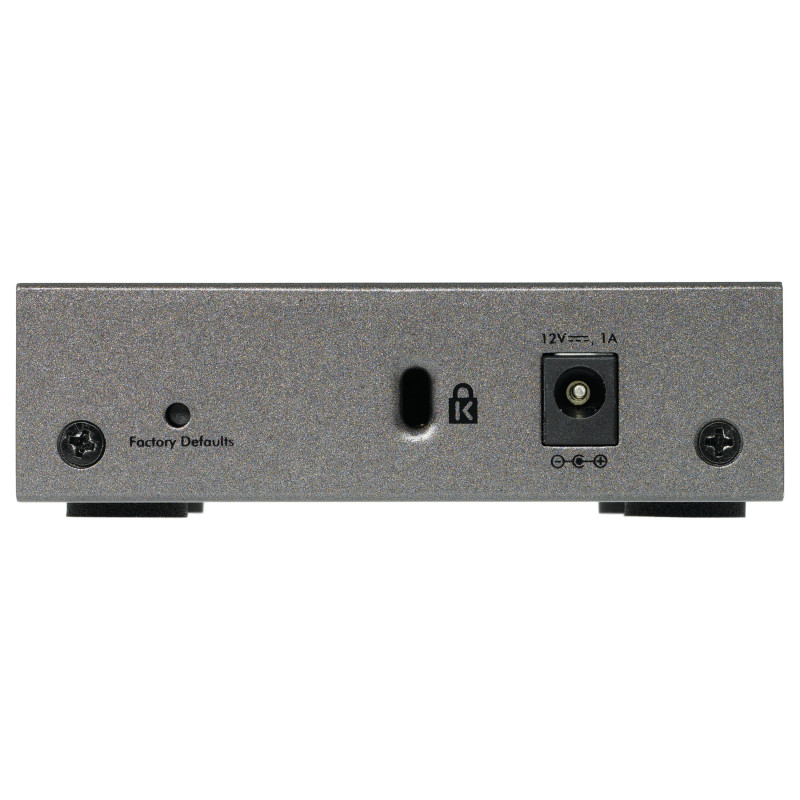

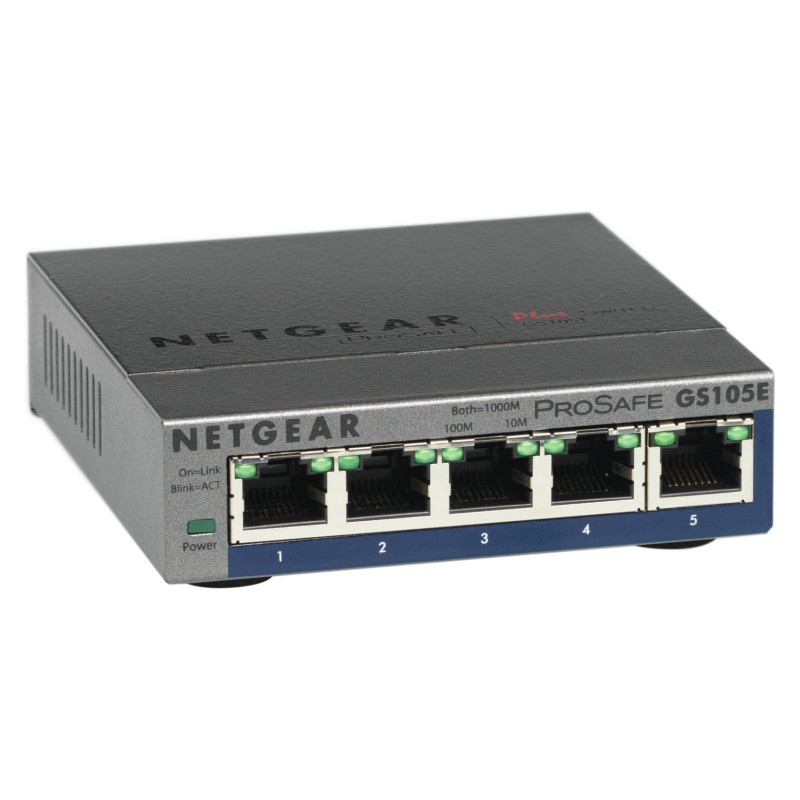

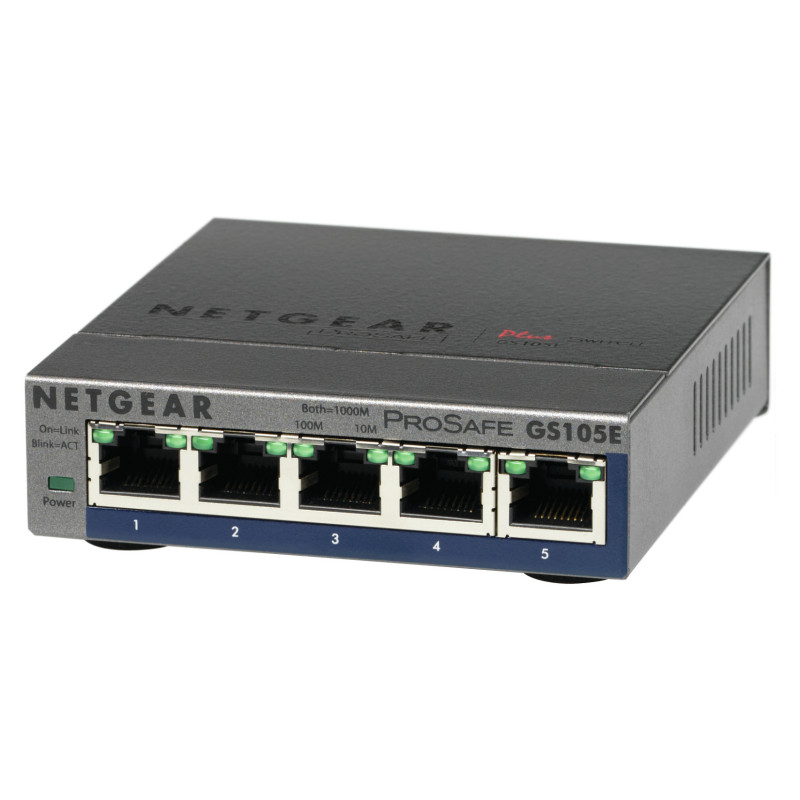

NETGEAR GS105E-200PES network switch

NETGEAR GS105E-200PES. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE...

More Capabilities beyond Plug-and-play Connectivity
Today's growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced
training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate
connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: VLAN support
Number of VLANs: 64

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Jumbo frames support

Security

DHCP features: DHCP client
Feature: IGMP snooping

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 128

Design

Product colour: Grey
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 94 mm
Depth: 101 mm
Height: 26 mm
Weight: 270 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CE,CSA (CSA 22.2 #950)UL (UL 1950)/cUL IEC 950/EN 60950FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick,EN50082-1, EN55024, CCC

Logistics data

Harmonized System (HS) code: 85176990
