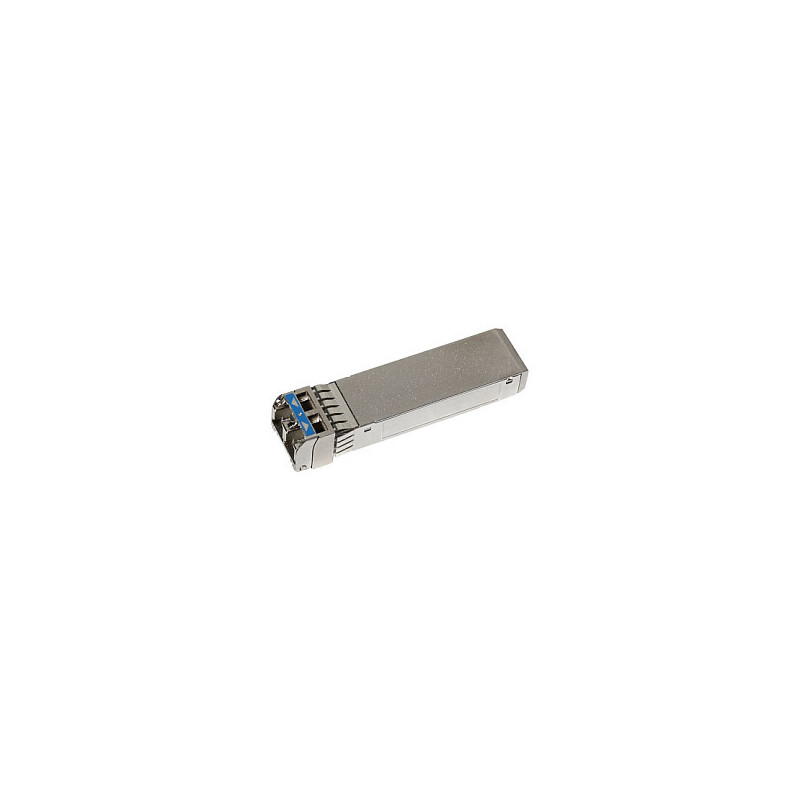

NETGEAR AXM764 network transceiver module

NETGEAR AXM764. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Compatible products: NETGEAR M5300, M6100, M7100, M7300. Quantity per pack: 1 pc(s)
AXM764 is NETGEAR 10GBASE-LR "Lite" SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn't a replacement for standard 10GBASE-LR optics: it is just relevant alternative for "shorter" reach SMF applications.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LR
Maximum transfer distance: 2000 m
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology: 10GBASE-LR
Auto MDI/MDI-X: Yes

Features

Hot-Plug support: Yes
Compatible products: NETGEAR M5300, M6100, M7100, M7300

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85369010
