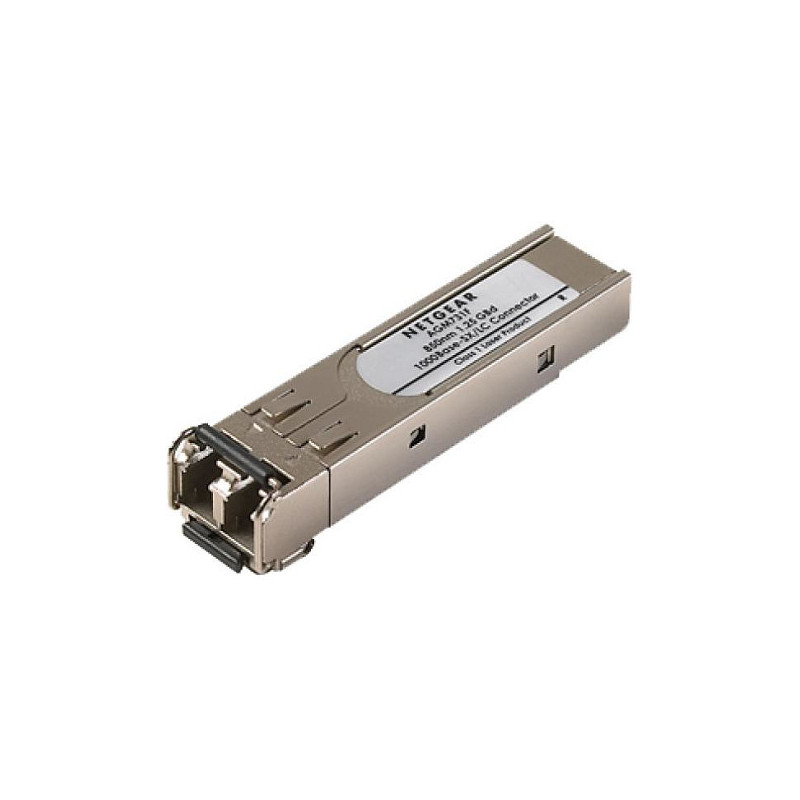

NETGEAR AGM731F network transceiver module

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Metal, Mean time between failures (MTBF): 87658 h. Input voltage: 3.3 V, Power consumption (typical): 0.5 W. Compliance certificates: CE, RoHS, Safety: UL 1950, CSA 22.2 No.60 950. Width: 57 mm, Depth: 13.8 mm, Height: 8.5 mm
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Multi-mode fiber (MMF) supported: Yes
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
SFP transceiver standard: SX
Maximum transfer distance: 1000 m
Wavelength: 850 nm
Ethernet LAN: Yes
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Duplex system: Full

Features

Product colour: Silver
Housing material: Metal
Mean time between failures (MTBF): 87658 h

Power

Input voltage: 3.3 V
Power consumption (typical): 0.5 W

Certificates

Compliance certificates: CE, RoHS
Safety: UL 1950, CSA 22.2 No.60 950

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 57 mm
Depth: 13.8 mm
Height: 8.5 mm

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85369010
