NetAlly EtherScope nXG (EXG-300) network analyser

NetAlly EtherScope nXG (EXG-300) Network Testing Device. Product type: Site diagnostics & measurement device, Product colour: Green, Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Interface: RJ-45/USB-A/USB-C, USB connector type: USB Type-A, USB Type-C. Power source type: Battery, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 103 mm, Depth: 195 mm, Height: 55 mm. Display type: LCD, Display diagonal: 12.7 cm (5"), Display resolution: 720 x 1280 pixels

Ethernet Network Tester & WiFi Diagnostics Tool
Taking on the complexity of ever-changing access networks, EtherScope nXG is a powerful network tester & WiFi 6 diagnostics tool that helps engineers and technicians to quickly deploy, maintain, monitor, analyze and secure WiFi, Bluetooth/BLE and Ethernet access networks.

- Verify up to 10G Ethernet link performance for critical servers, key end devices, and validate WiFi network performance
- Supports LANBERT™ Media Qualification testing to quickly validate if your existing cable plant can support higher speeds
- Portable network analyzer for WiFi 6/6E surveying (with AirMapper™ Site Survey), troubleshooting, diagnostics, and security audits
- Supports 2.4GHz and 5GHz spectrum analysis with the optional NXT Portable Spectrum Analyzer adapter
- Automatically discover and instantly generate a topology map of your wired and WiFi networks using Link-Live™ reporting and analysis platform
- Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve tough problems at remote sites, saving time and cost of travel

Speed up your workflows and improve end user experience with the industry's first handheld analyzer for Ethernet network troubleshooting and analysis, WiFi 6/6E surveying, and security audits.

Use advanced testing apps and purpose-built hardware

Quickly install, test, verify, and troubleshoot technology upgrades, NBASE-T, 10G, Bluetooth/BLE, and WiFi 6/6E networks with advanced testing apps and purpose-built ruggedized hardware.

Verify and validate up to 10G Ethernet network performan ce

Verify up to 10G Ethernet link performance for critical servers, uplinks, key end devices; uses LANBERT to easily and quickly assess the quality of transmission and available bandwidth.

Easily document complex network deployments

Empower technicians who may not have access to network management systems or other engineer-level tools to assess and document complex network deployments with multiple VLANs and WiFi SSIDs.

Faster and easier WiFi and Bluetooth/BLE surveys with AirMapper™ Site Survey

Supports both active and passive surveys to help validate client performance and roaming. Create and share visual heatmaps* of key performance metrics via Link-Live™ or AirMagnet® Survey PRO.

Attain complete device visibility and detect network changes

Automatically discover and instantly map* your wired Ethernet and WiFi networks in Link-Live; identifies network changes, discovers wireless security threats, and keeps network documentation up to date.

Centralized test data management, enables teamwork and collaboration

Seamlessly consolidate and manage field test data and integrate with network management systems via Link-Live™ collaboration, reporting, and analysis platform.

How to use a WiFi and Ethernet network analyzer?
Test it yourself and see how easy it is to use an EtherScope nXG. Click on the orange dots to explore.

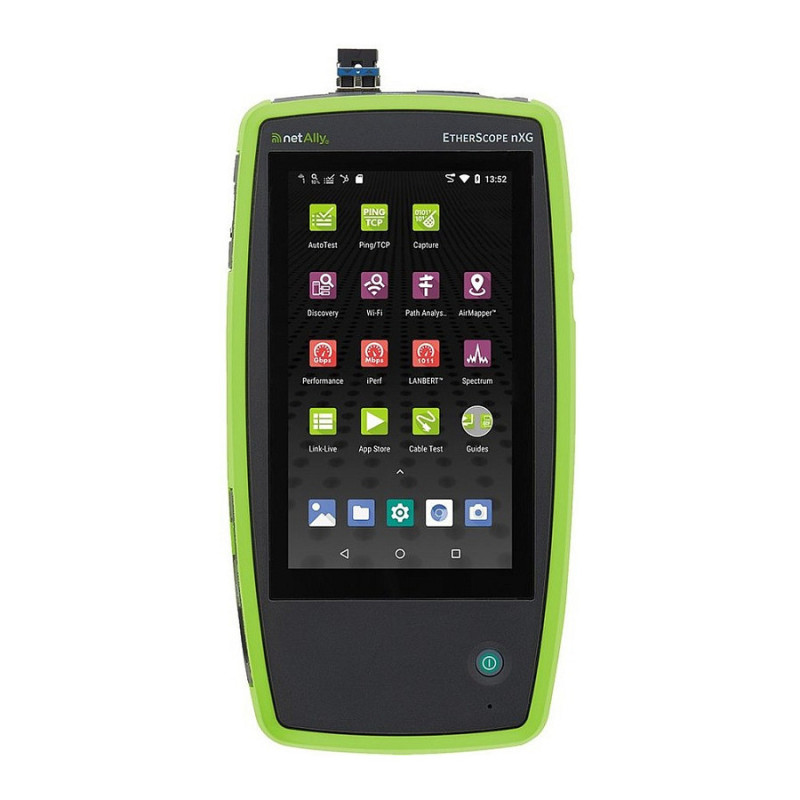

Home Screen
The EtherScope nXG is the first Android-based WiFi and 10G wired network analyzer. It has a dedicated set of Ethernet and WiFi management interfaces which support remote control and additional testing. It has a BlueTooth/BLE radio, and Android apps downloaded from the Link-Live collaboration, reporting, and analysis platform can use these interfaces for testing and communication purposes.

Benefit:
As a light-weight, handheld, multi-function instrument, EtherScope is perfect for remote site validation and troubleshooting, eliminating the need to purchase multiple testers, and the need to carry a fragile laptop PC or tablet. Android apps make the user's workflow more efficient by expanding the usage of the instrument beyond testing, allowing the user to check trouble tickets, run speed tests, configure networked devices, and complete other tasks with its smartphone-like features.

EtherScope nXG Portable Network Expert
Includes: EXG-300 mainframe (FULL TRI-BAND) with one year of AllyCare support (EXG-300-1YS), Li-ION battery, G3-PWRADAPTER, SFP+MR-10G850, Inline RJ-45 coupler, WIREVIEW 1, Quick Start Guide, and Shoulder Bag

Features

Product colour: Green
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Product type: Site diagnostics & measurement device

Ports & interfaces

Interface: RJ-45/USB-A/USB-C
USB connector type: USB Type-A, USB Type-C

Power

Power source type: Battery
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Battery type: Built-in battery

Weight & dimensions

Width: 103 mm
Depth: 195 mm
Height: 55 mm
Weight: 760 g

Packaging content

Feature: Quick start guide

Display

Display type: LCD
Display diagonal: 12.7 cm (5")
Display resolution: 720 x 1280 pixels

Antenna

Antenna type: Internal & external
Antenna gain (2.4 GHz): 1.5 dBi
Antenna gain (5 GHz): 2.7 dBi

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery life: 4 h
Battery capacity: 46 Wh
Feature: Rechargeable battery

System requirements

Windows operating systems supported: Yes
