NET POE+ INJECTOR / POE160S TP-LINK
Product reference:
2-6935364073084
NET POE+ INJECTOR / POE160S TP-LINK
Product reference:
2-6935364073084
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available

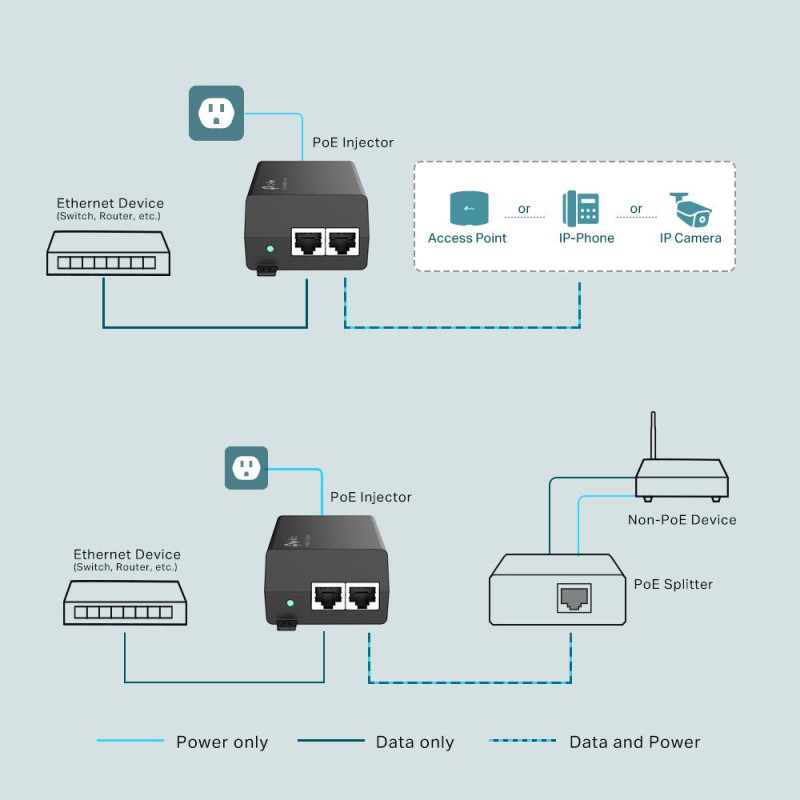

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Cabling technology | 10/100/1000 |
| Certification | FCC, CE, RoHS |
| Depth | 59.4 mm |
| Ethernet interface type | Gigabit Ethernet |

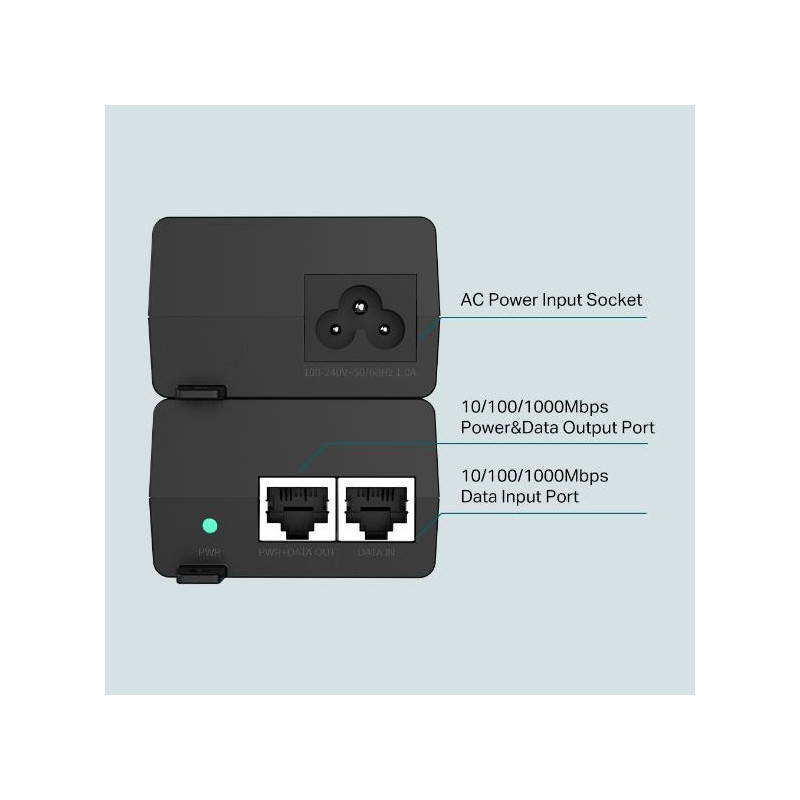

| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Harmonized System (HS) code | 85044095 |
| Height | 36.8 mm |
| LED indicators | Power |
| Maximum operating distance | 100 m |
| Model name | PoE+ Injector |
| Networking standards | IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output power | 30 W |
| Package depth | 230 mm |
| Package height | 80 mm |
| Package type | Box |
| Package weight | 460 g |
| Package width | 170 mm |

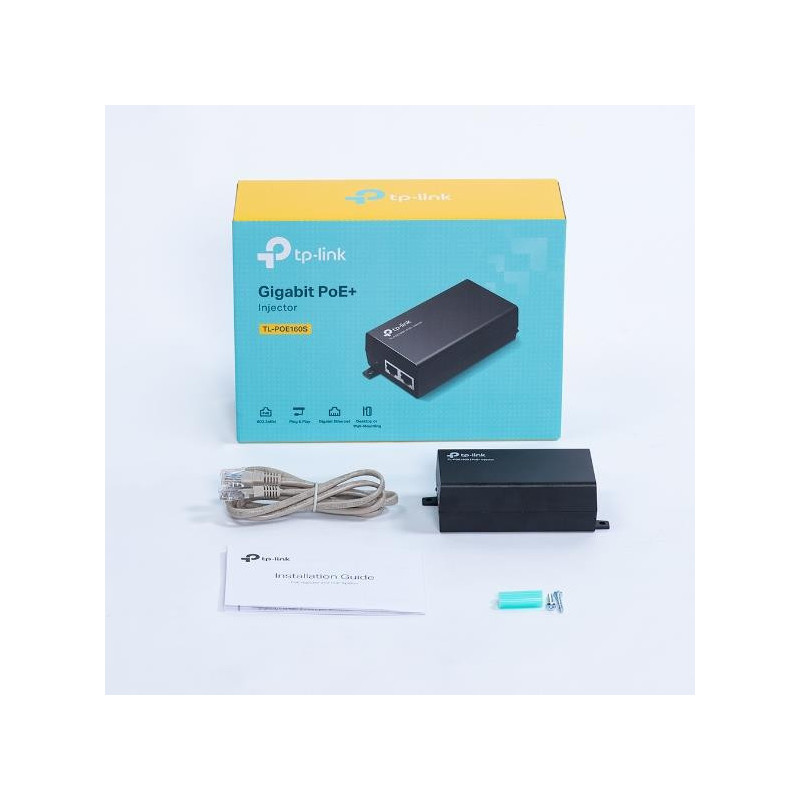

| Packaging content | TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits |
| Plug and Play | Yes |
| Power cord included | Yes |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| Product Net Weight | 0.16 kg |
| Quick installation guide | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Shipping Box Depth | 47 cm |
| Shipping Box Height | 35.5 cm |
| Shipping Box Weight | 9.64999961853027 kg |
| Shipping Box Width | 36.5 cm |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | TP-Link PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.17 |
| Unit Calculated Volume | 0.003806 cubm |
| Unit Calculated Weight | 0.603 kg |
| Units per Shipping Box | 16 |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/accessory/tl-poe160s/#overview |
| Wall mountable | Yes |
| Wall mounting kit | Yes |
| Width | 125 mm |
