NET POE CONVERTER EOC / LR1002 DAHUA
Product reference:
2-819290022889
NET POE CONVERTER EOC / LR1002 DAHUA
Product reference:
2-819290022889
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available

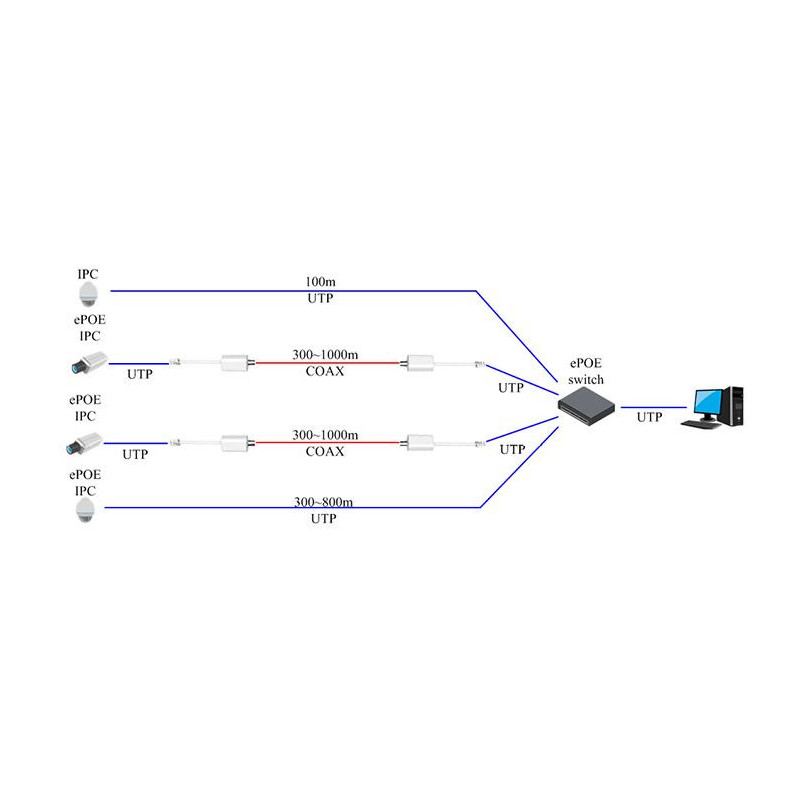

The ePoE technology of Dahua adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat5 or coaxial cable media. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Supports IEEE802.3, IEEE802.3u standards
Port: 1*RJ45 10/100Mbps, 1*BNC
Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Supports MDI/MDIX self-adaption
Supports long range power supply transmission via coaxial cable
Operating Temperature: -40°C-60°C
| BNC | 1 |
| Dimensions | 56mm×27mm×21mm |
| Operating temperature range | -40°C-60°C |
| Product Net Weight | 0.028 kg |
| RJ45 | 1 |
| Unit Box Height | 0.027 |
| Unit Box Length | 0.189 |
| Unit Box Width | 0.132 |
| Unit Calculated Volume | 0.0006736 cubm |
| Unit Calculated Weight | 0.088 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | www.dahuasecurity.com/products/productDetail/16511 |
