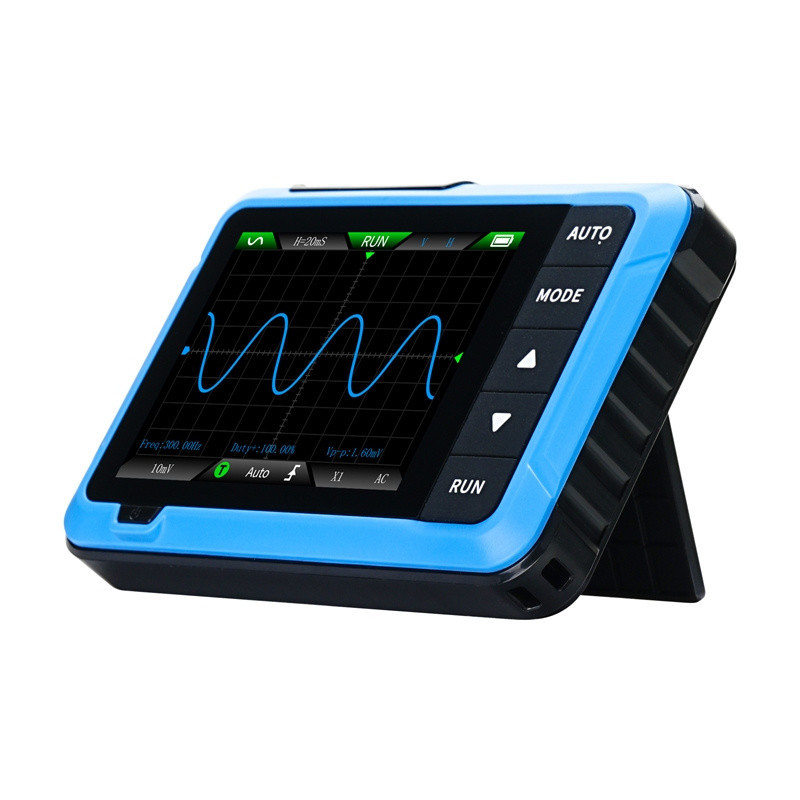

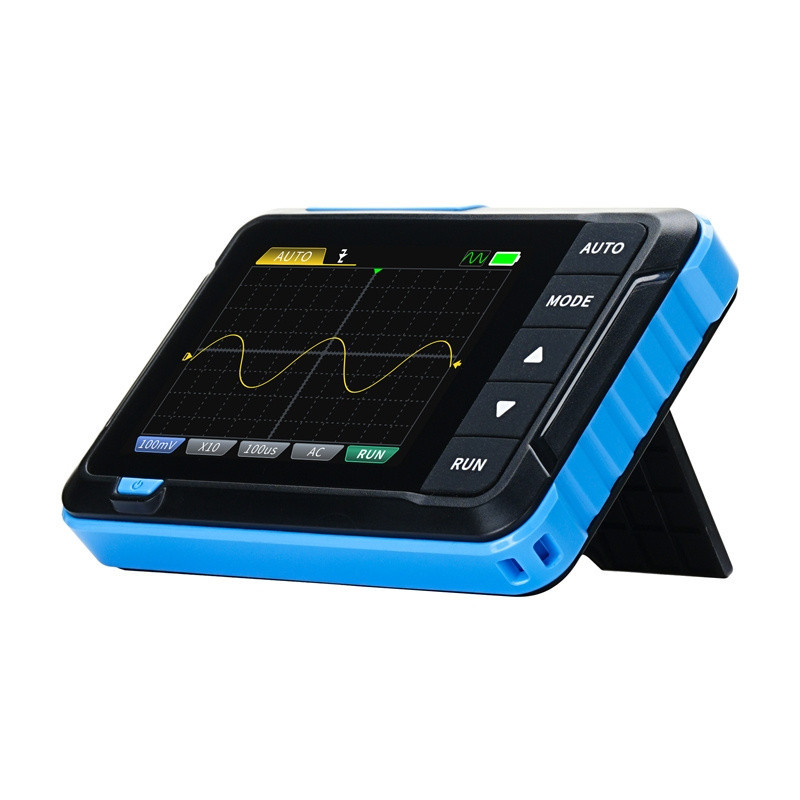

Portable oscilloscope - FNIRSI DSO510 10MHz Oscilloscope Signal Generator USB-C
Product reference:
14-5907085527321
FNIRSI DSO510 is a portable oscilloscope and signal generator with 10 MHz bandwidth and 13 adjustable waveforms. It features a built-in 1000 mAh battery, USB-C charging, as well as auto-adjustment, video recording, and waveform analysis functions.
Portable oscilloscope - FNIRSI DSO510 10MHz Oscilloscope Signal Generator USB-C
Product reference:
14-5907085527321
FNIRSI DSO510 is a portable oscilloscope and signal generator with 10 MHz bandwidth and 13 adjustable waveforms. It features a built-in 1000 mAh battery, USB-C charging, as well as auto-adjustment, video recording, and waveform analysis functions.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
FNIRSI DSO510
FNIRSI DSO510 is a portable oscilloscope and signal generator with 10 MHz bandwidth and 13 adjustable waveforms. It features a built-in 1,000 mAh battery, USB-C charging, and features such as auto-adjustment, video recording, and waveform analysis.
- Portable 2-in-1 oscilloscope and signal generator with 10 MHz bandwidth for universal signal analysis.
- Intelligent features including auto-adjustment, trigger level display and video recording for precise waveform analysis.
- Integrated signal generator with 13 adjustable waveforms, perfect for learning and experiments.
- Compact design with a foldable stand and long-lasting 1000 mAh battery for convenient use in various environments.
Features | |
|---|---|
| Product type | Portable oscilloscope and signal generator |
| Brand | FNIRSI |
| Model | DSO510 |
Specifications | |
| Bandwidth | 10MHz |
| Sample rate | 48 Ms/s |
| Time base range | 50 ns - 20 s |
| Voltage measurement range | 400V |
| Frequency range | 0 - 50 KHz |
| Duty cycle | 0 - 100% |
| Amplitude | 0.1 - 3V |
| Types of waveforms | 13 types |
| Battery capacity | 1000mAh |
| Charging port | USB-C |
Additional information | |
| Included accessories |
|
| Safety warning | Use the product only for its intended purpose. |
| Height | 50mm |
| Length | 250mm |
| Weight | 450 g |
| Width | 150mm |
