Portable electric car charger - DEPOW deM2D22B7D_DL 22 kW 7 m
Product reference:
14-6975828005190
The portable 2-mode electric vehicle charger with a Type 2 connector provides up to 22 kW of power, adjustable 6-32 A current and has a 7 m long cable. An LCD display, control via Wi-Fi and Bluetooth app, charging schedules and an IP66 protection class control box provide convenience and reliability.
Portable electric car charger - DEPOW deM2D22B7D_DL 22 kW 7 m
Product reference:
14-6975828005190
The portable 2-mode electric vehicle charger with a Type 2 connector provides up to 22 kW of power, adjustable 6-32 A current and has a 7 m long cable. An LCD display, control via Wi-Fi and Bluetooth app, charging schedules and an IP66 protection class control box provide convenience and reliability.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
DEPOW deM2D22B7D_DL 22 kW, 7 years

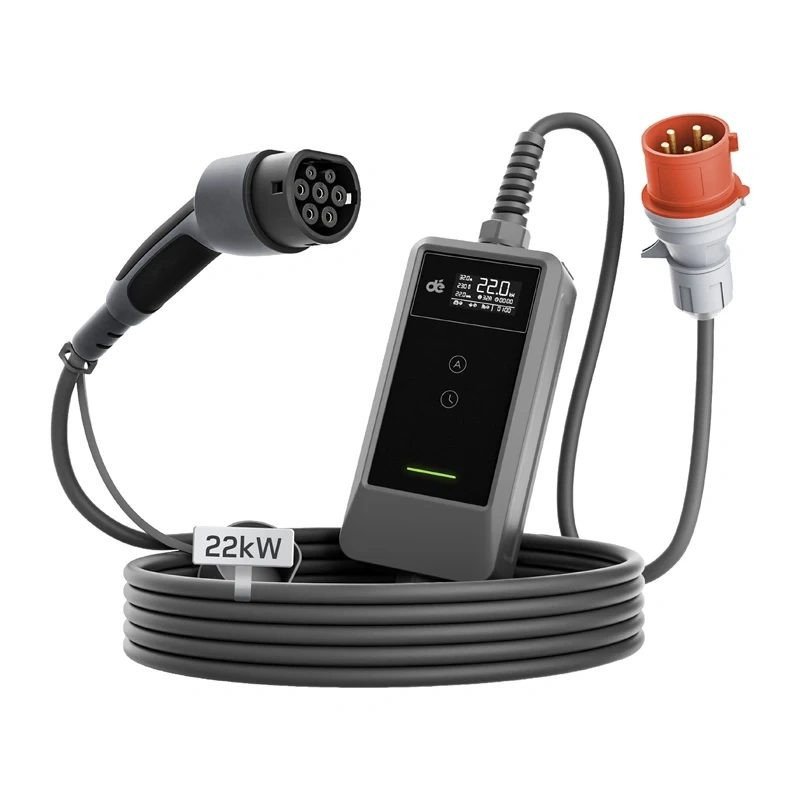

Portable Mode 2 electric vehicle charger with Type 2 connector, 22 kW output, adjustable 6-32 A current and 7 m cable. The charger features an LCD display, app control via Wi-Fi and Bluetooth, charging schedules and an IP66-rated control box.
- Portable 22 kW Mode 2 electric car charger with 7 m cable and Type 2 car connector
- Supports single-phase and three-phase charging, current can be adjusted from 6 A to 32 A
- Wi-Fi and Bluetooth connectivity allows you to control charging via the app, set schedules, monitor the process, and view history
- Integrated safety features, IP66-rated control box and adapters for CEE and standard Schuko sockets
Product information | |
|---|---|
| Product type | Portable Mode 2 electric car charger |
| Brand | DEPOT |
| Model | deM2D22B7D_DL |
| Charging mode | "Mode 2", single-phase and three-phase |
| Maximum charging power | 22 kW |
| Rated voltage | 400V AC, 50Hz |
| Car connector | Type 2 |
| Cable length | 7 m |
Technical information | |
| Selectable current settings | 6 A, 10 A, 13 A, 16 A, 20 A, 24 A and 32 A |
| Screen | LCD |
| Connection | Wi-Fi and Bluetooth |
| App features | Remote start and stop, real-time monitoring, current regulation, charging schedules, charging history, and digital charging session authorization or locking |
| Residual current protection | RCD type A, 30 mA AC + 6 mA DC |
| Additional protection | Protection against overload, overvoltage, undervoltage, leakage current, short circuit, grounding and control box overheating |
| Control box protection | IP66 |
| Type 2 plug protection | IP55 |
| Operating temperature | from −25 °C to 50 °C |
| Storage temperature | from −40 °C to 80 °C |
| Operating humidity | 5-95% RH, non-condensing |
| Total harmonic distortion | ≤5% |
| Standby power consumption | <5W |
| Control box dimensions | 238 × 115 × 69mm |
| Usage | Indoor and outdoor charging |
Included accessories | |
| Power connections | 5-pin CEE plug, CEE adapter and Schuko adapter |
| Mounting accessories | Type 2 plug wall bracket, cable wall bracket and mounting parts |

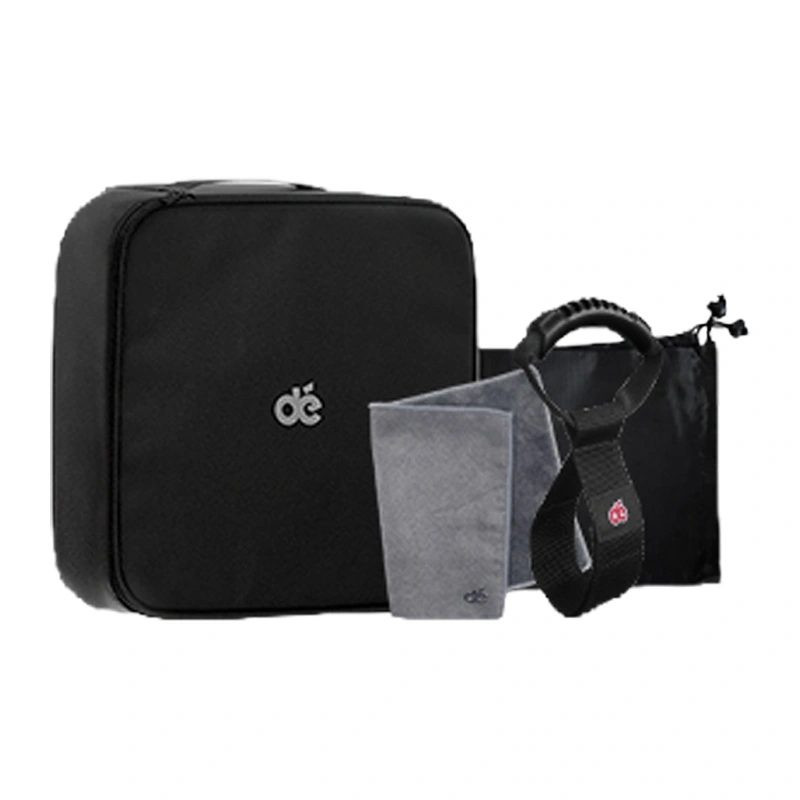

| Other accessories | Carrying bag, cable strap and cleaning cloth |
Safety warning | |
| Warning | Only use to charge compatible electric vehicles with a Type 2 connector. Connect the charger to a suitable, properly grounded electrical installation and select the correct current setting for the socket and electrical circuit. Do not use damaged cables, plugs or adapters. Although the control box meets the IP66 protection class, protect the electrical connections from standing water and do not touch the equipment with wet hands. Follow the instructions for use of the vehicle and the charger, and if necessary, contact a qualified specialist to check the electrical installation. |
| Height | 150mm |
| Length | 450mm |
| Weight | 4200 grams |
| Width | 350mm |
