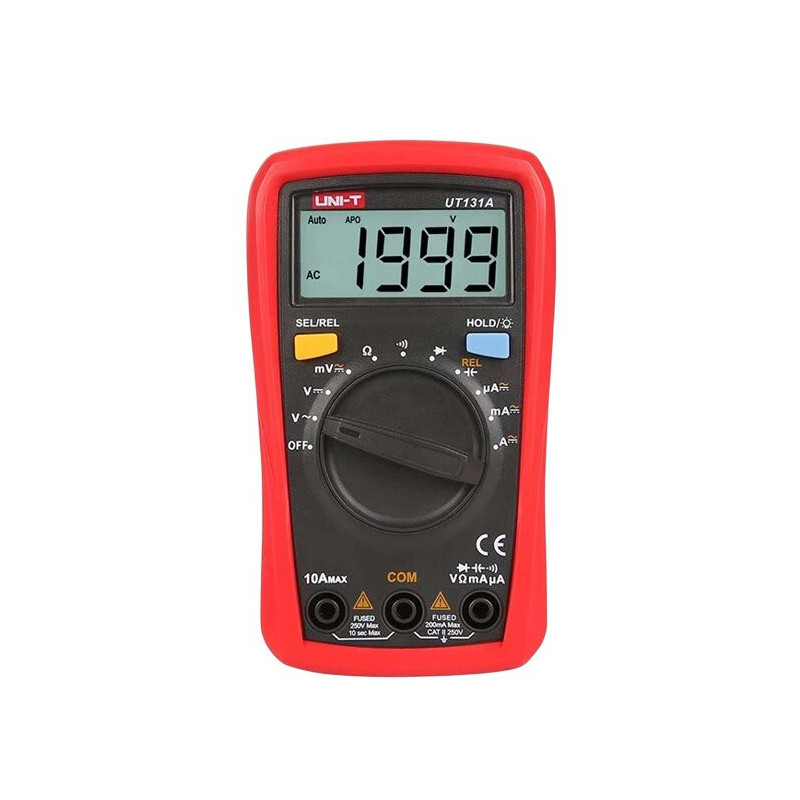

Multimeter - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V
Product reference: 14-6935750513118

UNI-T UT131A - compact digital multimeter for measuring AC and DC voltage, DC current up to 10 A and resistance up to 20 MΩ. It is equipped with diode and audio circuit continuity testing, 2,000-count LCD display, data hold function, automatic power off and CAT II 250 V safety class.

Multimetras - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V
Multimetras - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V
Multimetras - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V
Multimetras - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V

Multimeter - UNI-T UT131A AC / DC 10 A 20 MΩ CAT II 250 V

Product reference: 14-6935750513118

UNI-T UT131A - compact digital multimeter for measuring AC and DC voltage, DC current up to 10 A and resistance up to 20 MΩ. It is equipped with diode and audio circuit continuity testing, 2,000-count LCD display, data hold function, automatic power off and CAT II 250 V safety class.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
39,13 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

UNI-T UT131A


UNI-T UT131A - compact digital multimeter for measuring AC and DC voltage, DC current up to 10 A and resistance up to 20 MΩ. It features diode and audible circuit continuity testing, 2000-digit LCD display, data hold function, automatic power-off and CAT II 250 V safety category.


  • Compact digital multimeter for everyday electrical and electronic measurements
  • Measures DC and AC voltage up to 600 V, DC current up to 10 A and resistance up to 20 MΩ
  • Diode check, audible circuit integrity check and data hold functions are available
  • Clear 2000-count LCD display, auto power off and lightweight ergonomic body

Product information

Product type Digital multimeter
Brand UNI-T
Model UT131A
Housing material ABS
Power source 2 × AAA 1.5V batteries

Technical data

DC voltage range 200mV-600V
AC voltage range 200V-600V
DC range Up to 10A
Resistance range Up to 20 MΩ
Screen LCD, 2000 segments
Diode testing Yes
Checking the integrity of the circuit Yes, with audible signal
Data retention Yes
Automatic shutdown Yes
Fuses 250 V/0.5 A and 250 V/10 A

Dimensions and safety

Dimensions 130 × 73.5 × 35mm
Weight About 130g
Measurement category CAT II 250V
Compliance CE, RoHS
Safety warning Use only for specified electrical measurements and do not exceed the specified voltage, current, and measurement category limits. Check the multimeter, test leads, and fuses before use. Do not use a damaged instrument. Disconnect power before changing settings or test leads.

Height100mm
Length200mm
Weight200g
Width150mm
