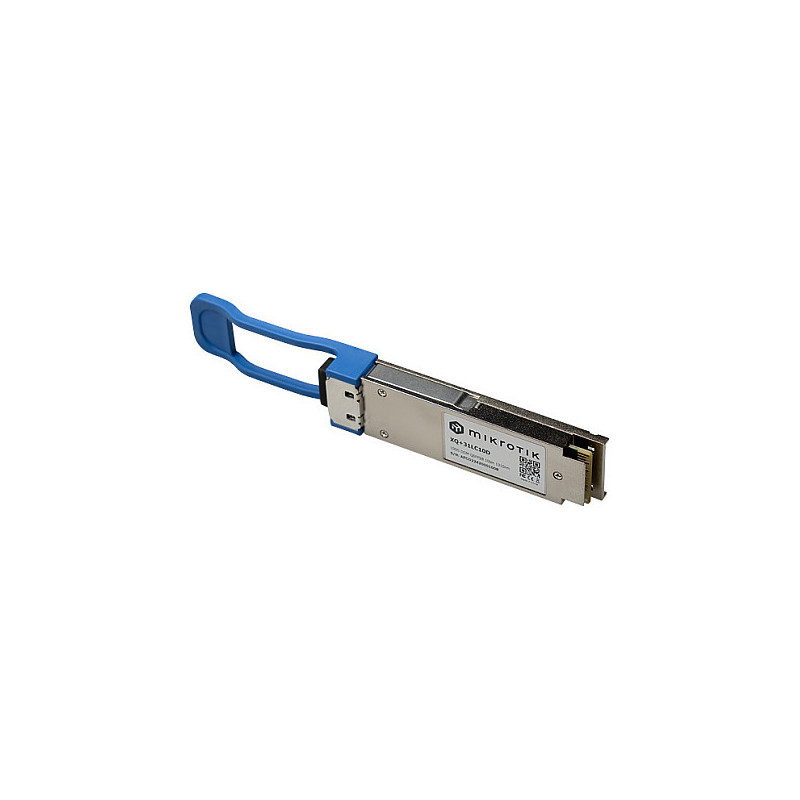

Mikrotik XQ+31LC10D network transceiver module

Mikrotik XQ+31LC10D. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Power consumption (typical): 4.5 W. Quantity per pack: 1 pc(s)

The MikroTik 100 Gigabit product line keeps growing!
Add this QSFP module for distances up to 10 kilometers to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps.

The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 100000 Mbit/s
Interface type: QSFP28
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC (UPC)
Maximum transfer distance: 10000 m
Wavelength: 1309 nm

Power

Power consumption (typical): 4.5 W

Operational conditions

Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 - 70 °C

Packaging content

Quantity per pack: 1 pc(s)
