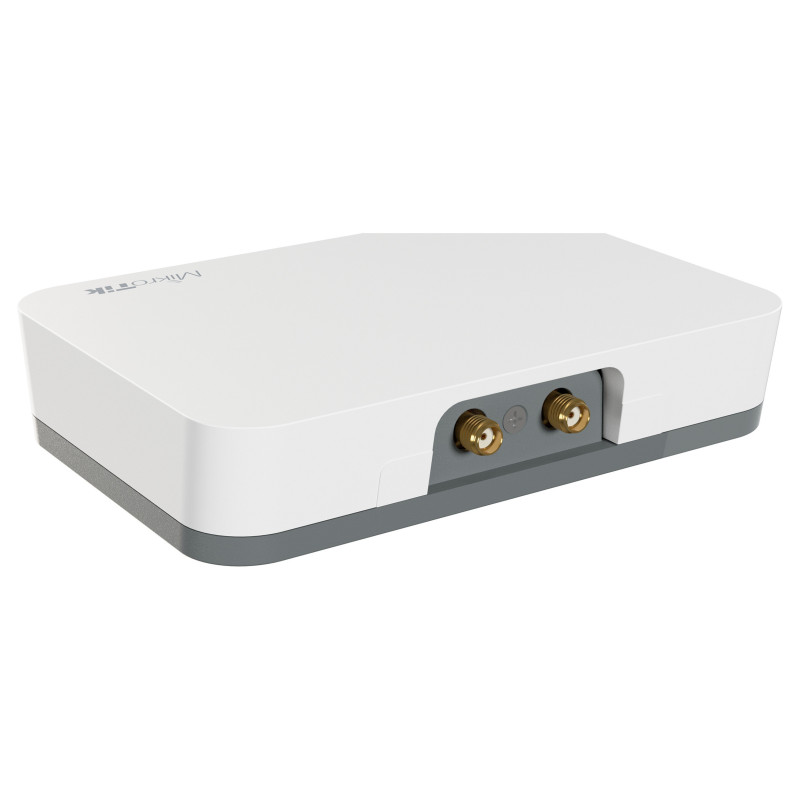

Mikrotik RB924I-2ND-BT5BG77 gateway / controller

Mikrotik RB924I-2ND-BT5&BG77. Product colour: White, Mounting type: DIN-rail, International Protection (IP) code: IP20. Antenna gain level (max): 1.5 dBi. Processor model: QCA9531, Processor frequency: 650 MHz, Internal memory: 64 MB. Ethernet LAN data rates: 10,100 Mbit/s, Forwarding rate: 300 Mpps, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at. SIM card type: NanoSIM, Serial interface type: RS-485

The newest addition to the MikroTik IoT product family - KNOT - is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.

KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.

You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don't need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!

KNOT features so many protocol support and connectivity options:

2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.

It has powerful filters for forwarding only relevant packets and ignoring others.

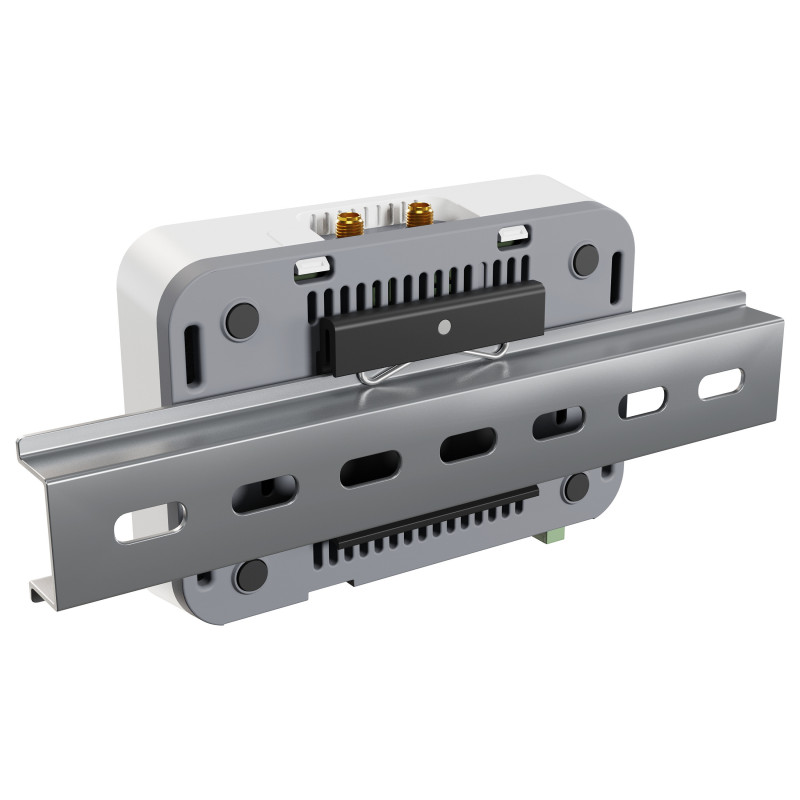

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!

Design

Product colour: White
Mounting type: DIN-rail
International Protection (IP) code: IP20

Features

Antenna gain level (max): 1.5 dBi

Performance

Feature: Built-in processor
Processor model: QCA9531
Processor frequency: 650 MHz
Number of processors installed: 1
Internal memory: 64 MB
Flash memory: 16 MB

Network

Ethernet LAN data rates: 10,100 Mbit/s
Forwarding rate: 300 Mpps
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s
WLAN data transfer rate (max): 300 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2
Cabling technology: 10/100Base-T(X)
Feature: Wireless connection

Ports & interfaces

Micro-USB 2.0 ports quantity: 1
Feature: SIM card slot
SIM card type: NanoSIM
Ethernet LAN (RJ-45) ports: 2
Serial interface type: RS-485

Power

Power consumption (typical): 18 W
Feature: Power over Ethernet (PoE)

Software

Compatible operating systems: RouterOS

Weight & dimensions

Width: 122 mm
Depth: 87 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Certificates

Certification: CE, FCC, IC, EAC, ROHS

Logistics data

Harmonized System (HS) code: 85176990
