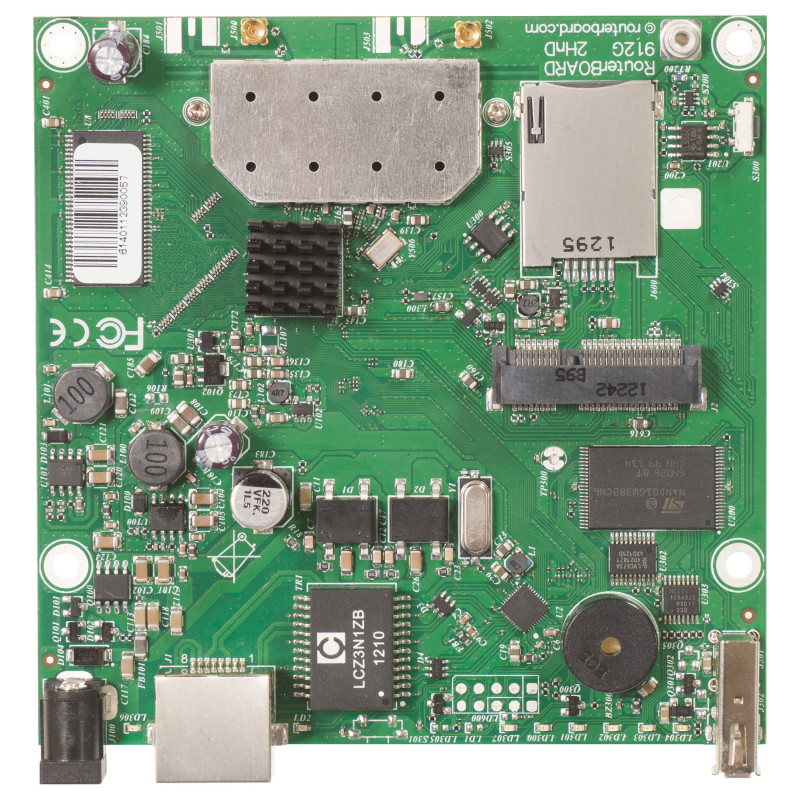

Mikrotik RB912UAG-2HPND network equipment spare part

Mikrotik RB912UAG-2HPND. Product type: Motherboard, Device compatibility: Router. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 983.7 Mbit/s. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), USB port type: USB Type-A. Power connector: DC-in-jack, Power consumption (max): 13.5 W, Power over Ethernet (PoE) voltage range: 8 - 30 V. Width: 105 mm, Depth: 105 mm, Weight: 67 g

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.

Features

Product type: Motherboard
Device compatibility: Router
Feature: Voltage monitoring
Feature: Temperature monitoring
Feature: Reset button
License level: 4

Performance

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 983.7 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Processor model: AR9342
Processor frequency: 600 MHz
Processor cores: 1
Storage capacity: 128 MB
Internal memory: 64 MB
Number of SIM cards: 1
SIM card type: MiniSIM

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity: 1
USB port type: USB Type-A
USB ports quantity: 1
Feature: SIM card slot

Power

Power connector: DC-in-jack
Power consumption (max): 13.5 W
Power over Ethernet (PoE) voltage range: 8 - 30 V

Weight & dimensions

Width: 105 mm
Depth: 105 mm
Weight: 67 g
