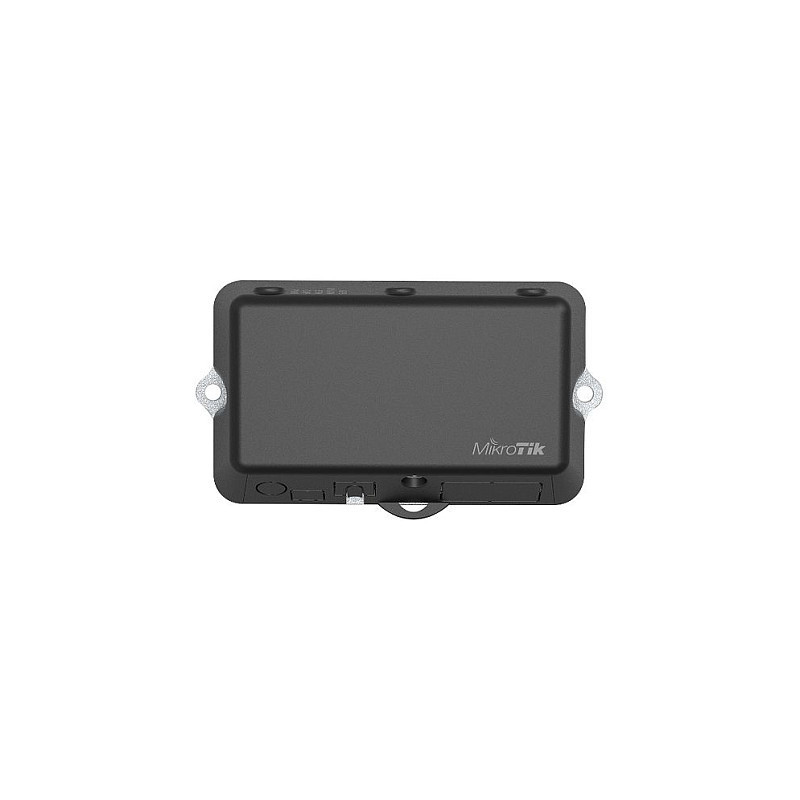

Mikrotik LtAP mini

Mikrotik LtAP mini. 2.4 GHz, Maximum data transfer rate: 54 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Black. Power consumption (max): 4 W

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).

Features

Feature: 2.4 GHz
Maximum data transfer rate: 54 Mbit/s
Wi-Fi data rate (max): 54 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB connector type: Micro-USB
WAN connection: Mobile network (SIM)
Feature: RS-232 interface

Power

AC input voltage: 8 - 30 V
Power consumption (max): 4 W

Design

Placement: Table
Product colour: Black

Antenna

Antenna gain level (max): 1.5 dBi

Performance

Feature: Built-in processor
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: RouterOS

Weight & dimensions

Width: 139 mm
Depth: 77 mm
Height: 28.5 mm

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Logistics data

Harmonized System (HS) code: 85176990
