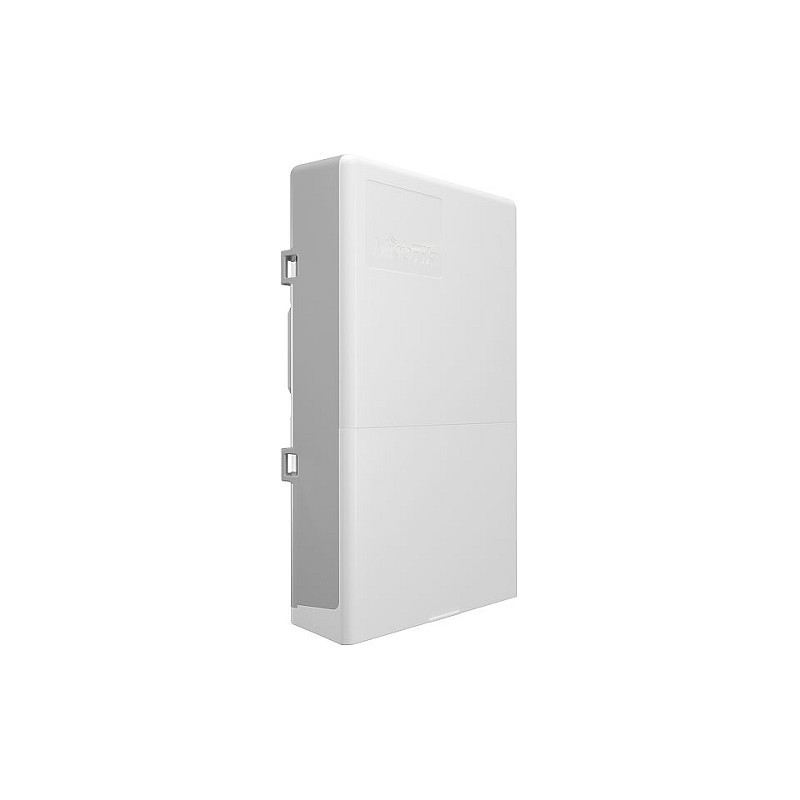

Mikrotik netPower 15FR

Mikrotik netPower 15FR. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 7.2 Gbit/s. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don't have to worry about power options in the attic or the utility room - netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out - you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

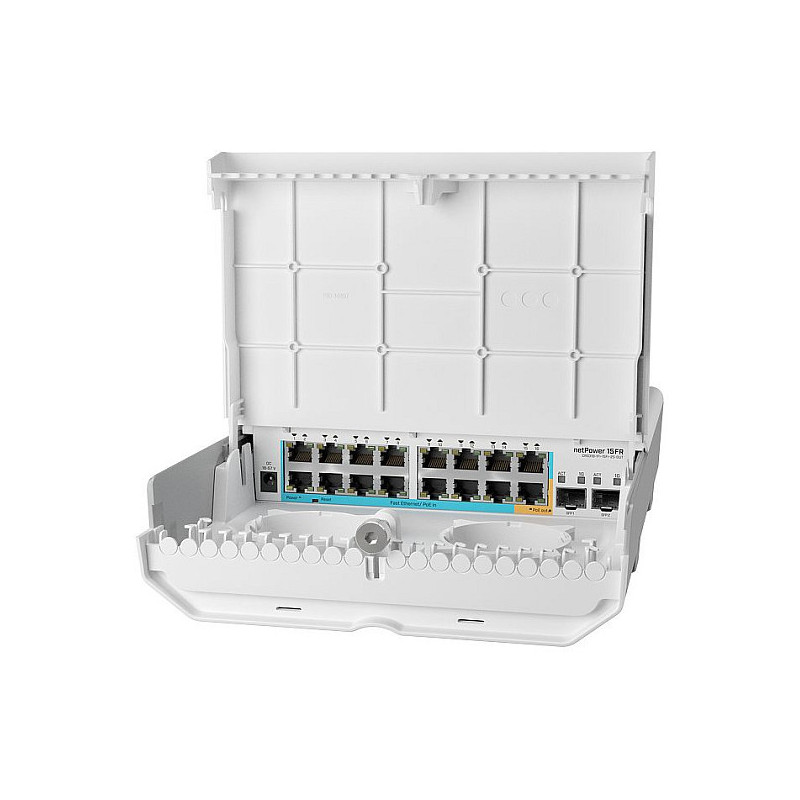

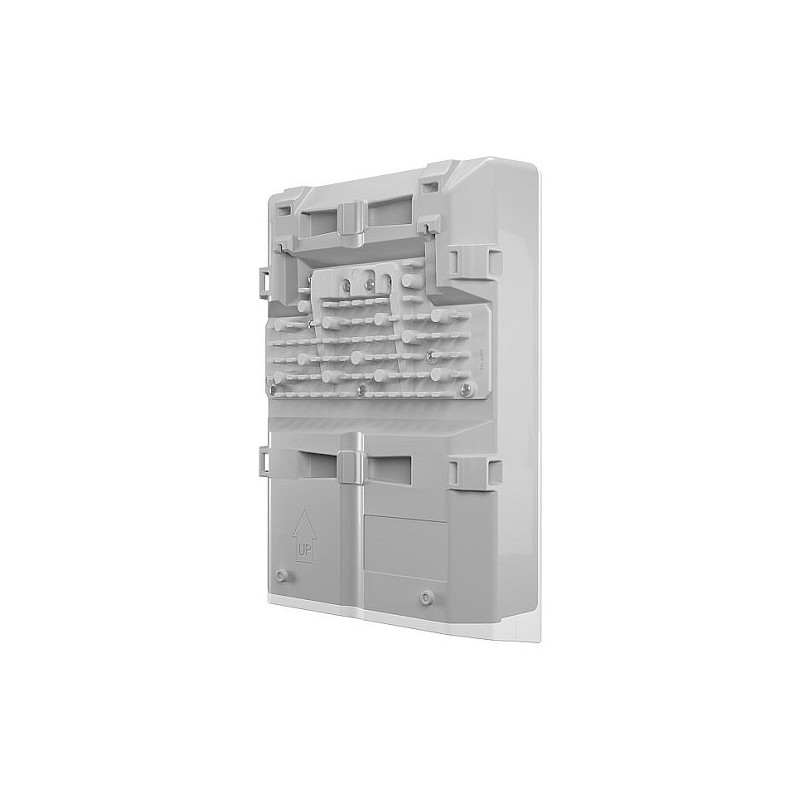

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments - from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR - bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
SFP module slots quantity: 2
Power connector: DC-in jack

Network

Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 7.2 Gbit/s
Throughput: 3600 Mpps
Forwarding rate: 5.4 Mpps

Design

Product colour: White

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Memory type: RAM
Internal memory: 256 MB
Flash memory: 16 MB

Power

DC input voltage: 18 - 57 V
Power consumption (max): 29 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 304 mm
Depth: 212 mm
Height: 71 mm

Certificates

Certification: CE/RED, EAC, ROHS
