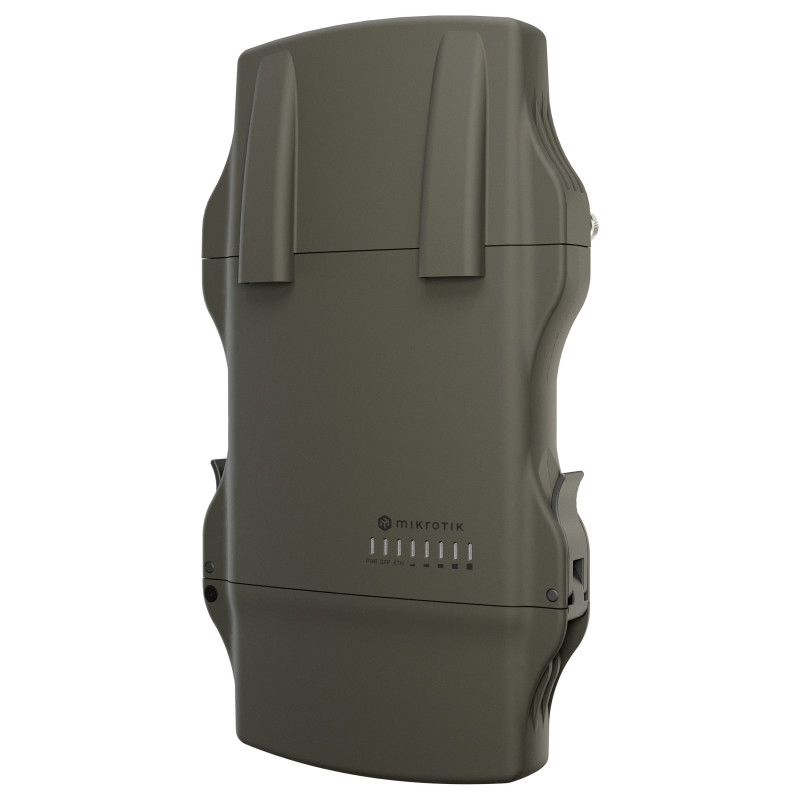

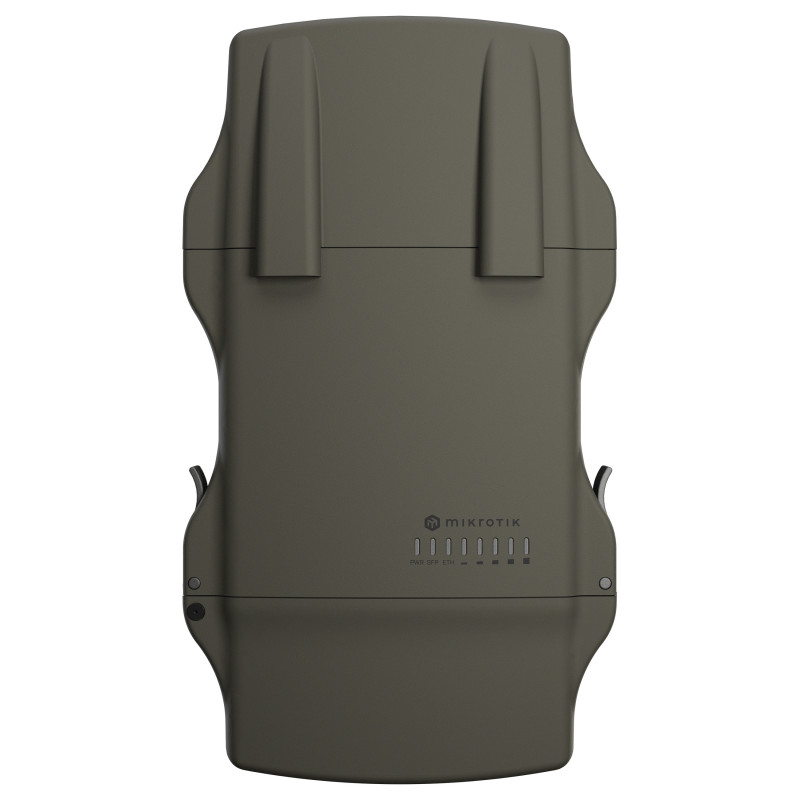

Mikrotik NetMetal ax
Product reference: 29-4752224009234

Mikrotik NetMetal ax, 2.4 GHz, 5 GHz, 10,100,1000 Mbit/s

Mikrotik NetMetal ax

Product reference: 29-4752224009234

Mikrotik NetMetal ax, 2.4 GHz, 5 GHz, 10,100,1000 Mbit/s

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
180,93
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Mikrotik NetMetal ax. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black. Power consumption (max): 25 W
Meet one of your most versatile companions: the NetMetal ax - a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease - you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax - the Mars rover of networking!

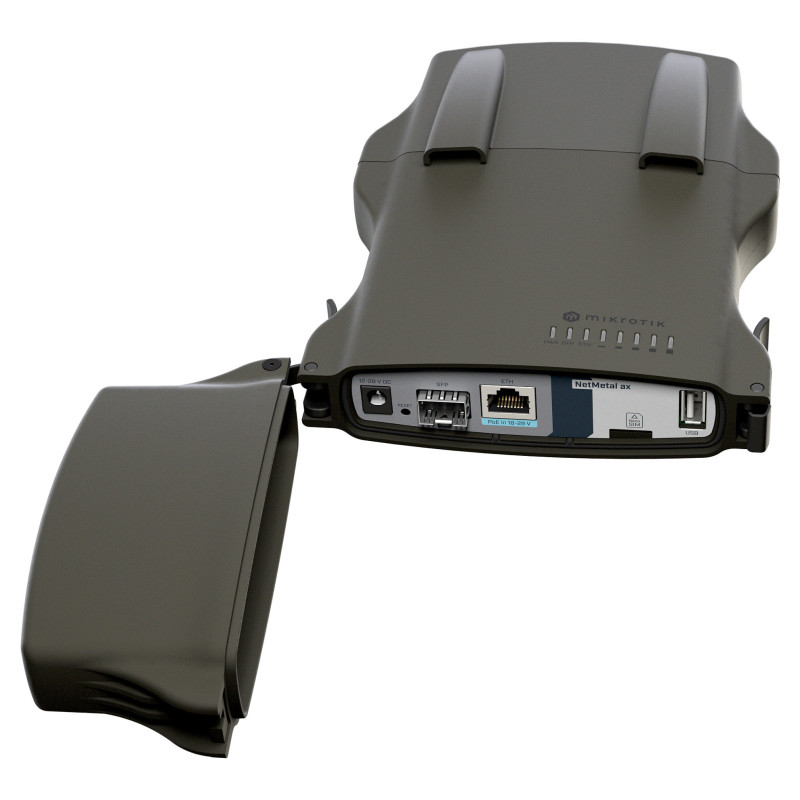

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup - we've added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

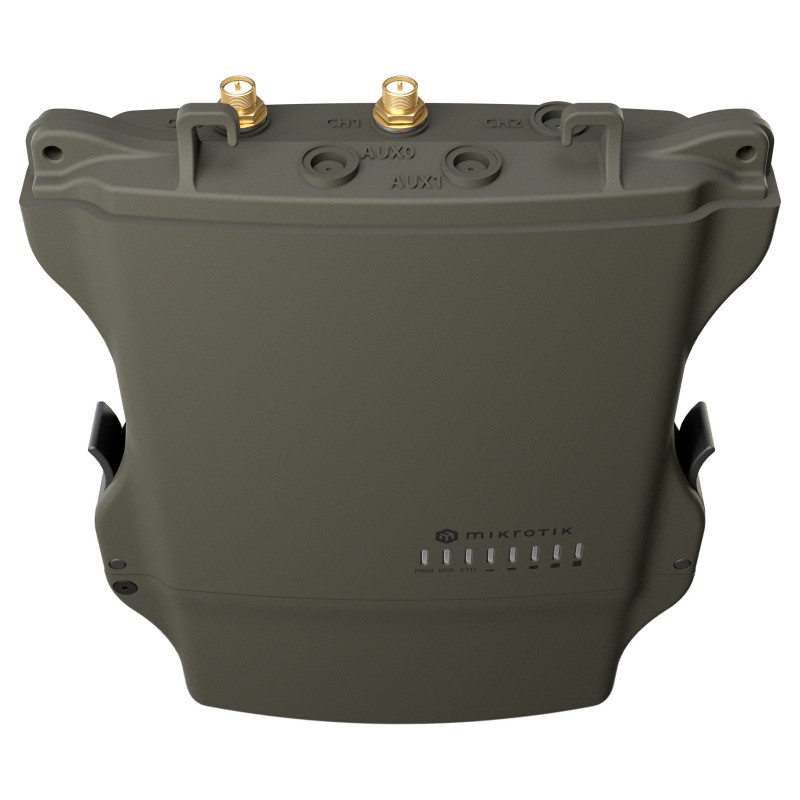

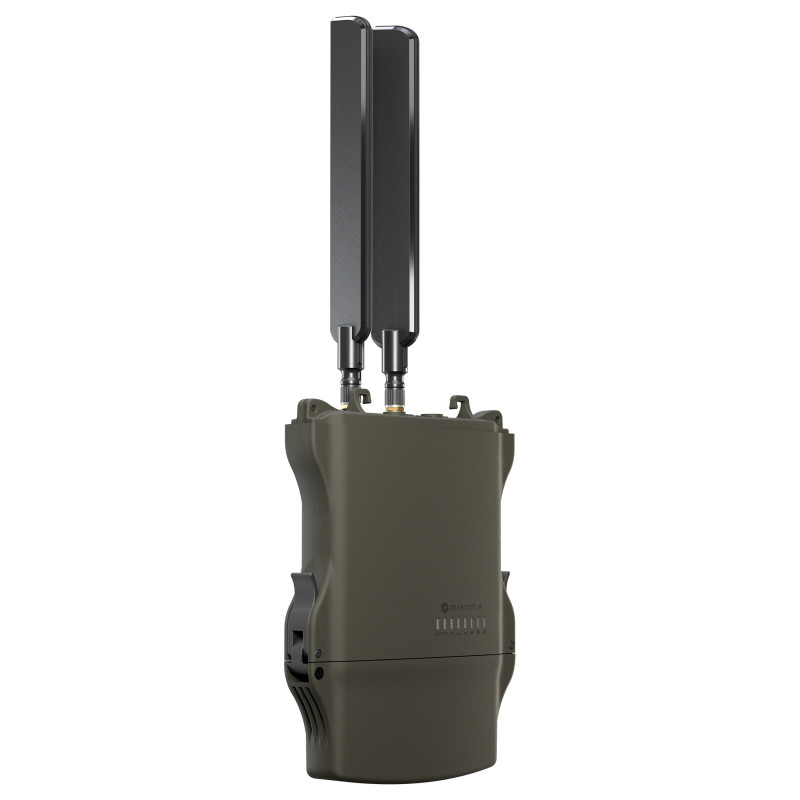

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.
If you've read this far, here's a little bonus feature: we've kept the good old beeper for various alarms or creative outputs.
*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Features

2.4 GHz: Yes
5 GHz: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
Power consumption (max): 25 W

Design

Placement: Wall
Product colour: Black
Reset button: Yes

Performance

Chipset: QCN-6102, IPQ-5010
Built-in processor: Yes
Processor frequency: 800 MHz
Flash memory: 256 MB
Internal memory: 128 MB
Operating system installed: RouterOS
Compatible operating systems: RouterOS v7

Certificates

Certification: CE, FCC, IC, EAC, ROHS

Mobile network

SIM card slot: Yes
SIM card type: NanoSIM

Other features

I/O ports: SFP
Wireless standard: 802.11a/n/ac/ax


Weight1.18 kg
Manufacturer codeL23UGSR-5HaxD2HaxD-NM
