Mikrotik mAP lite

Mikrotik mAP lite. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 3.5 W

mAP lite

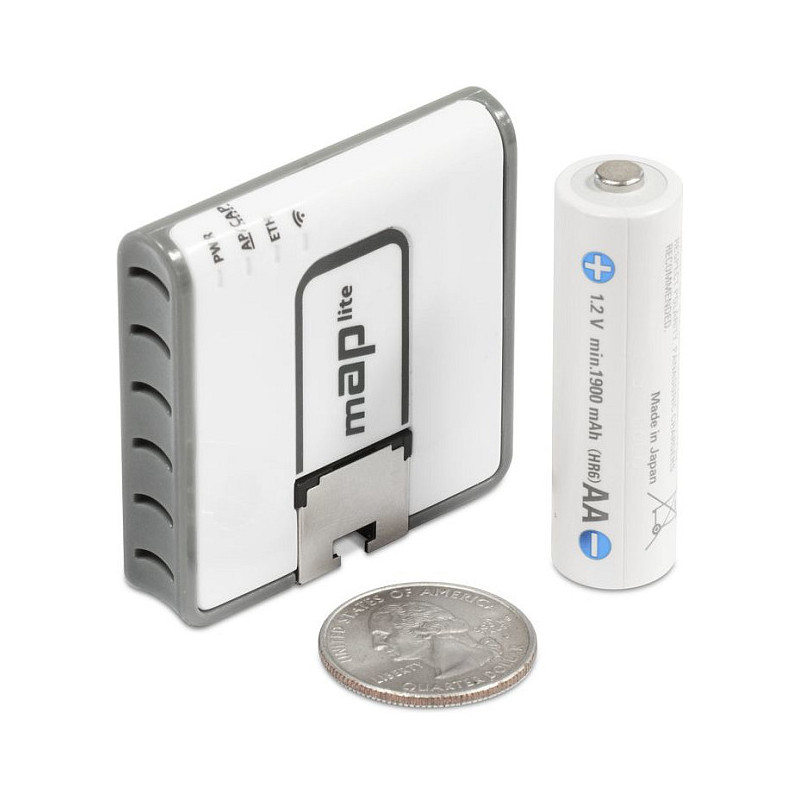

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it's slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Features

Feature: 2.4 GHz
Ethernet LAN data rates: 10,100 Mbit/s
Bandwidth: 2.4 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Receiver sensitivity: 1MBit/s -9611MBit/s -896MBit/s -9354MBit/s -74MCS0 -93MCS7 -71

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 3.5 W

Design

Product colour: White

Antenna

Antenna gain level (max): 1.5 dBi

Performance

Feature: Built-in processor
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: RouterOS

Weight & dimensions

Width: 49 mm
Depth: 11 mm
Height: 48 mm

Packaging content

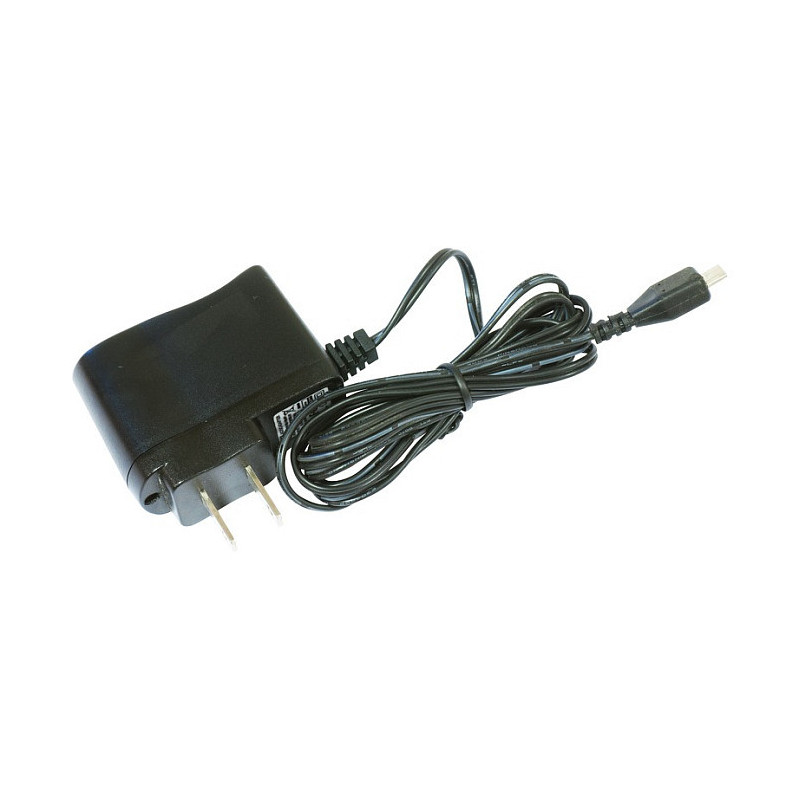

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): -30 - 70 °C

Logistics data

Harmonized System (HS) code: 85176990
