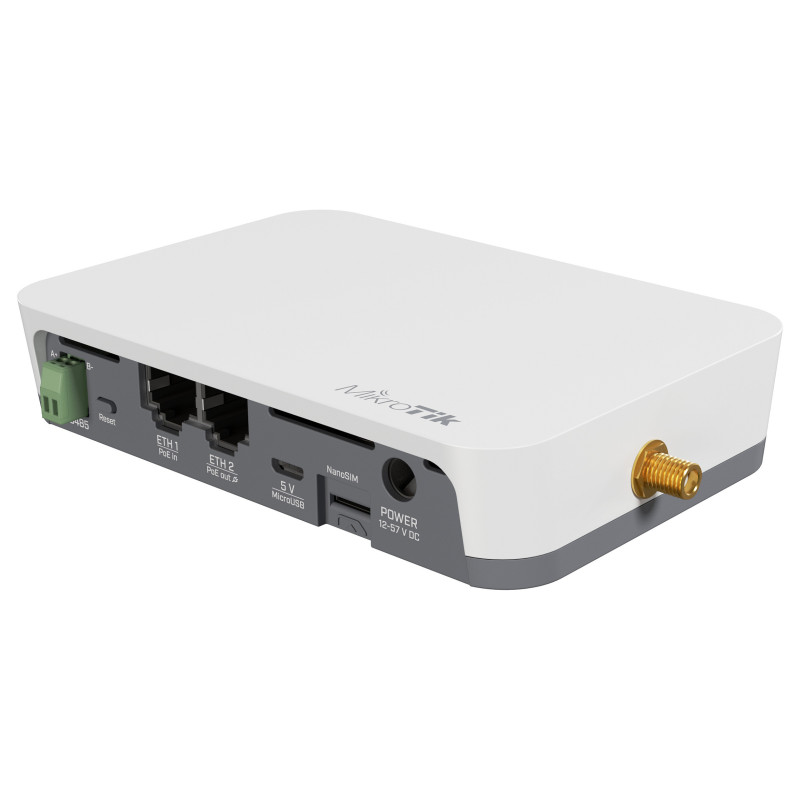

Mikrotik KNOT LR8G gateway / controller

Mikrotik KNOT LR8G. Product colour: White, International Protection (IP) code: IP20. Antenna gain level (max): 1.5 dBi, Mean time between failures (MTBF): 200000 h. Processor model: QCA9531, Processor frequency: 650 MHz, Internal memory: 64 MB. Ethernet LAN data rates: 100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi band: Single-band (2.4 GHz). SIM card type: NanoSIM, Serial interface type: RS-485

The KNOT LR8G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment. CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.

Whether you're tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field - the KNOT LR8G ties everything together and keeps everything connected.

Key Features & Upgrades
- Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.

- Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB - including PoE-out on Ether2 for powering other devices.

- SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.

- Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.

- Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.

- Powered by RouterOS v7
- for full control, custom scripting, and advanced routing features.

At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited - but performance can't be.

Design

Product colour: White
International Protection (IP) code: IP20

Features

Antenna gain level (max): 1.5 dBi
Feature: GPS (satellite)
Mean time between failures (MTBF): 200000 h

Performance

Feature: Built-in processor
Processor model: QCA9531
Processor frequency: 650 MHz
Number of processors installed: 1
Internal memory: 64 MB
Flash memory: 128 MB

Network

Ethernet LAN data rates: 100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s
WLAN data transfer rate (max): 300 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2
Frequency band: 2.4 GHz

Ports & interfaces

Feature: SIM card slot
SIM card type: NanoSIM
Ethernet LAN (RJ-45) ports: 2
Serial interface type: RS-485

Power

Power consumption (max): 23 W
Feature: Power over Ethernet (PoE)
DC input voltage: 12 - 57 V

Software

Compatible operating systems: RouterOS

Weight & dimensions

Width: 122 mm
Depth: 87 mm
Height: 26 mm

Packaging content

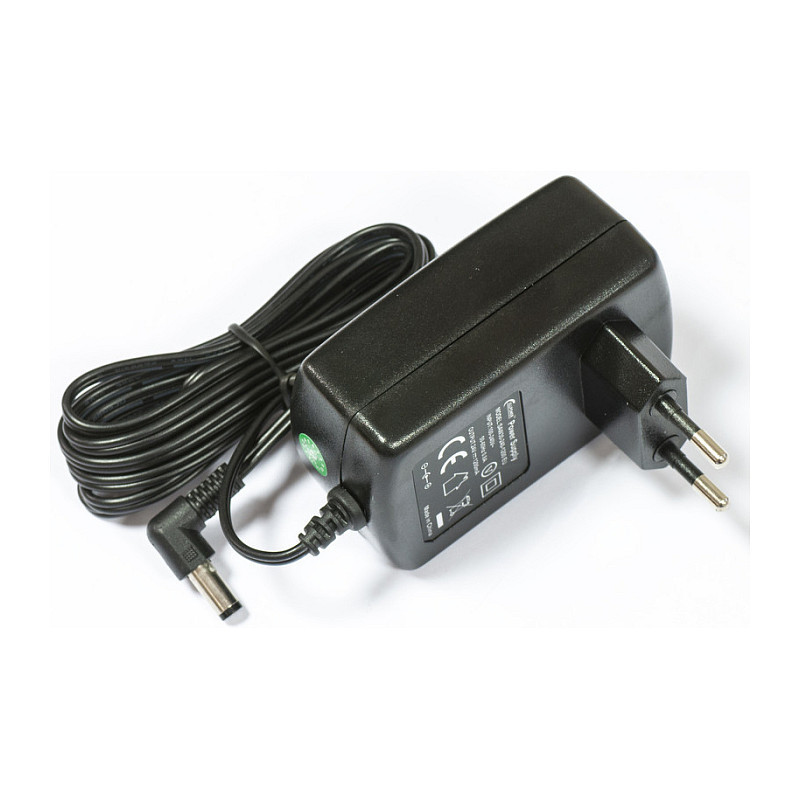

Feature: AC adapter included
Feature: Quick start guide

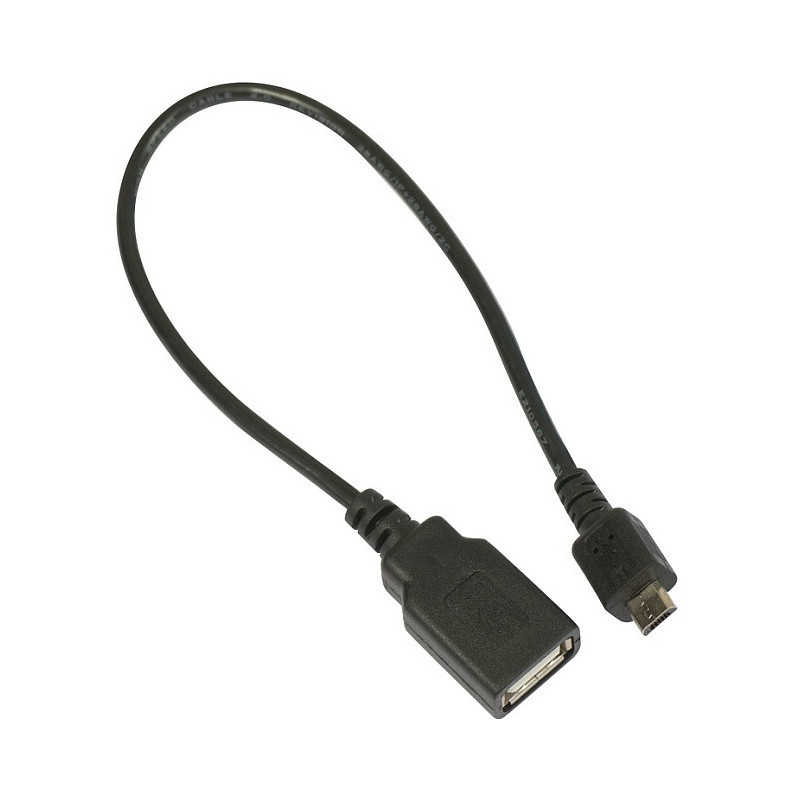

Cables included: OTG

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Sustainability

Feature: Sustainability compliance

Technical details

Feature: BeiDou
Feature: Galileo

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: IC
