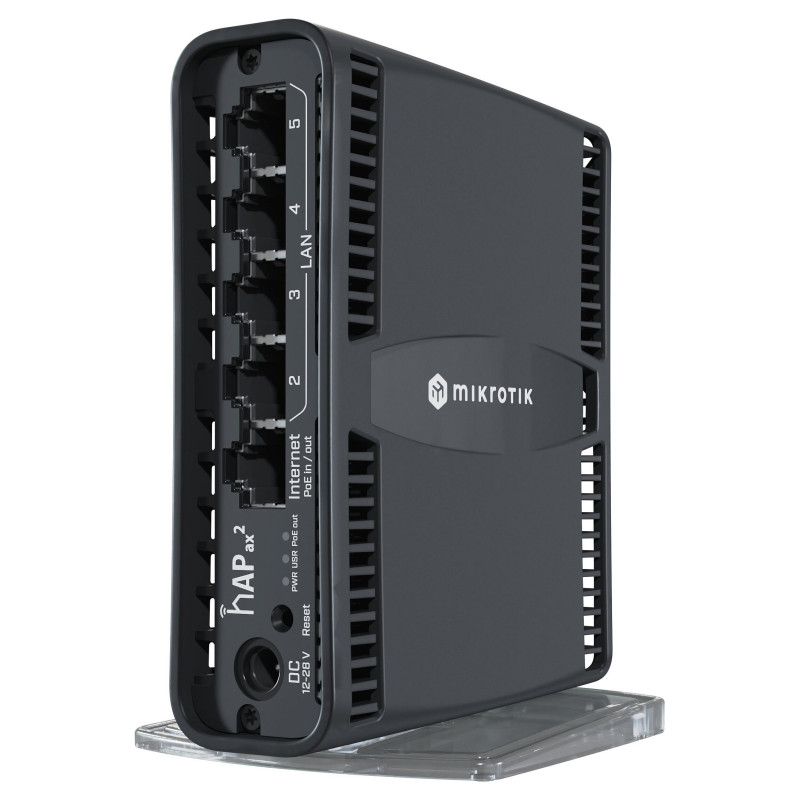

Mikrotik hAP ax2 Wireless router

Mikrotik hAP ax2. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Product type: Tabletop router, Product colour: Black. Compliance certificates: RoHS, Certification: CE, FCC, IC, EAC

It's time to supercharge your home network with the Generation 6 wireless network and our latest addition to the beloved hAP series. hAP ax² has everything you might need in a primary home access point - and more! Forget endless reviews and comparisons - this is the perfect device for 99% of homes.

Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax's success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let's compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!

Some might ask - why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network - without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax² and save more time for the essential things in life!

The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you're safer than ever before.

Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall - without sacrificing the strong signal.

With so many products and features on the market, even an experienced user can become confused. So it's time for a simple truth for a simple choice: you can't go wrong with a hAP ax² in most homes.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1200 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 1200 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5
Feature: DC-in jack

Management features

Feature: Reset button

Design

Product colour: Black
LED indicators: Yes
Product type: Tabletop router

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, IC, EAC

Packaging content

Feature: AC adapter included

Antenna

Antenna gain level (max): 4 dBi

Features

Feature: Built-in processor
Processor frequency: 864 MHz
Processor cores: 4
Internal memory: 1000 MB
Flash memory: 128 MB
Mean time between failures (MTBF): 100000 h
Operating system installed: RouterOS

Power

Power source type: DC, PoE
Output voltage: 12 - 28 V
Output current: 0.6 A
Power consumption (typical): 12 W
Feature: Power over Ethernet (PoE)
Feature: External power adapter

Operational conditions

Operating temperature (T-T): -40 - 50 °C

Weight & dimensions

Width: 120 mm
Depth: 101 mm
Height: 37 mm

Packaging data

Feature: Screws included
