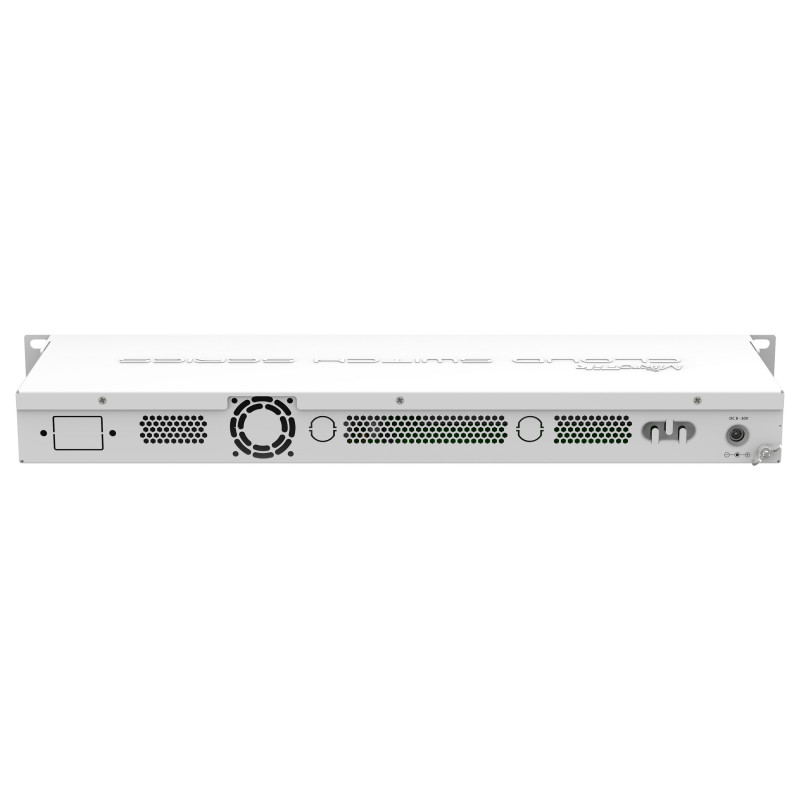

Mikrotik CSS326-24G-2S+RM network switch

Mikrotik CSS326-24G-2S+RM. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features.

The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Management features

Switch type: Managed
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1Q
Feature: 10G support
Feature: Port mirroring
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4000

Security

Feature: Access Control List (ACL)
Security algorithms: SNMP
Feature: MAC address filtering

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White
Feature: Reset button

Performance

Feature: Built-in processor
Internal memory: 2 MB
Flash memory: 2 MB

Power

Power source: DC/PoE
Feature: Power supply included
Number of power supply units: 1
Power consumption (typical): 19 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Power over Ethernet (PoE) voltage range: 10 - 30 V

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 440 mm
Depth: 144 mm
Height: 44 mm

Packaging content

Feature: Manual

Packaging data

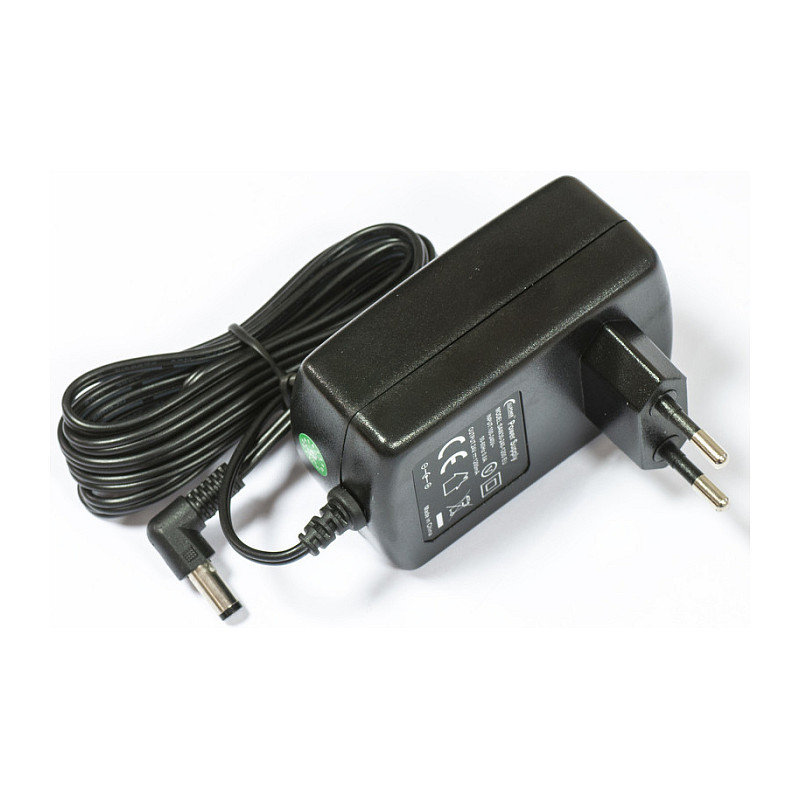

Feature: AC adapter included

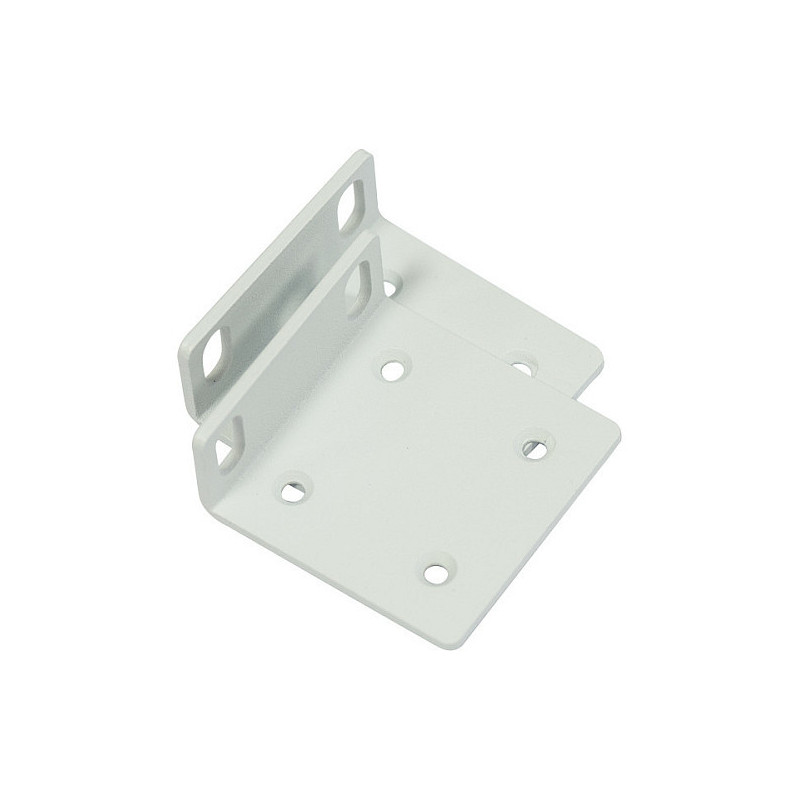

Feature: Mounting brackets included

Logistics data

Harmonized System (HS) code: 85176990
