Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM

Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 17, Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading in a single 1U device and for the best price on the market?

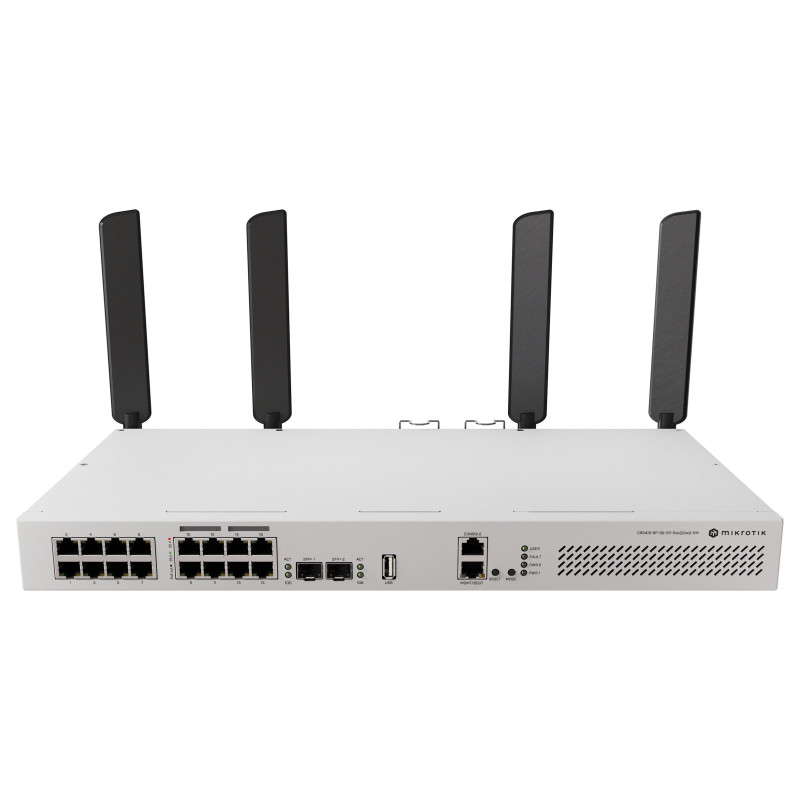

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there's a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker - built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you're powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease - and on a budget!

Wi-Fi where it matters

2CRS418-8P-8G-2S+5axQ2axQ-RM The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 - for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget - now you don't need to carry a separate access point!

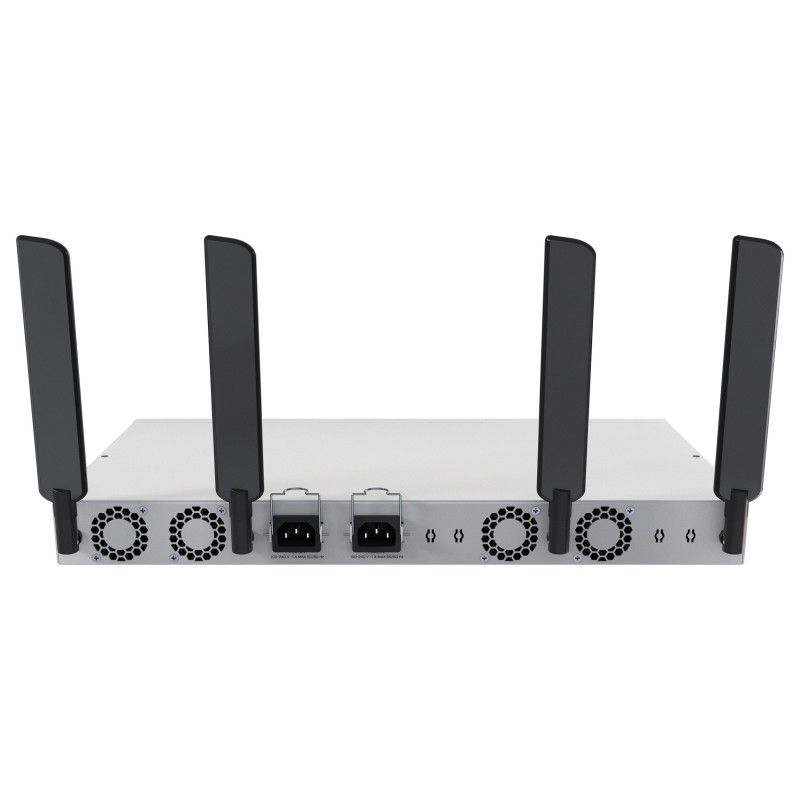

We know rackmounts are not famous for great wireless coverage. That's why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

Management features

Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 17
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-A ports quantity: 1
Console port: RJ-45

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support
Ethernet LAN data rates: 10,100,1000 Mbit/s

Design

Feature: Rack mounting
Form factor: 1U
Feature: Reset button
International Protection (IP) code: IP20

Performance

Operating system installed: RouterOS
Feature: Built-in processor
Processor manufacturer: ARM
Processor model: 98DX226S
Processor frequency: 2208 MHz
Internal memory: 1000 MB
Flash memory: 128 MB
Mean time between failures (MTBF): 200000 h

Power

Power source: AC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 43 W
Power consumption (max): 227 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 443 mm
Depth: 250 mm
Height: 44 mm

Certificates

Compliance certificates: CE, EAC, RoHS
