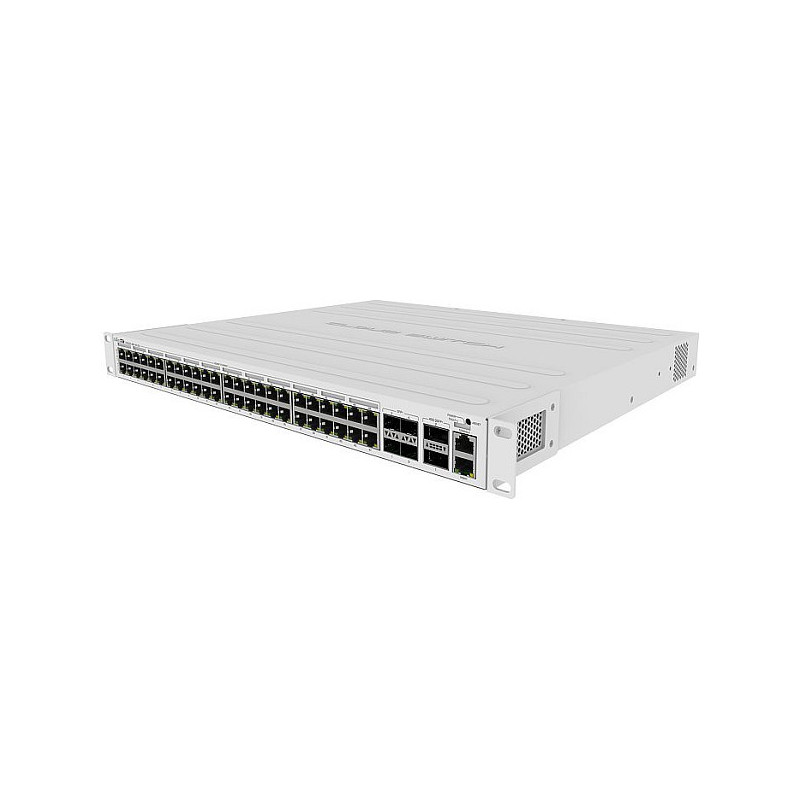

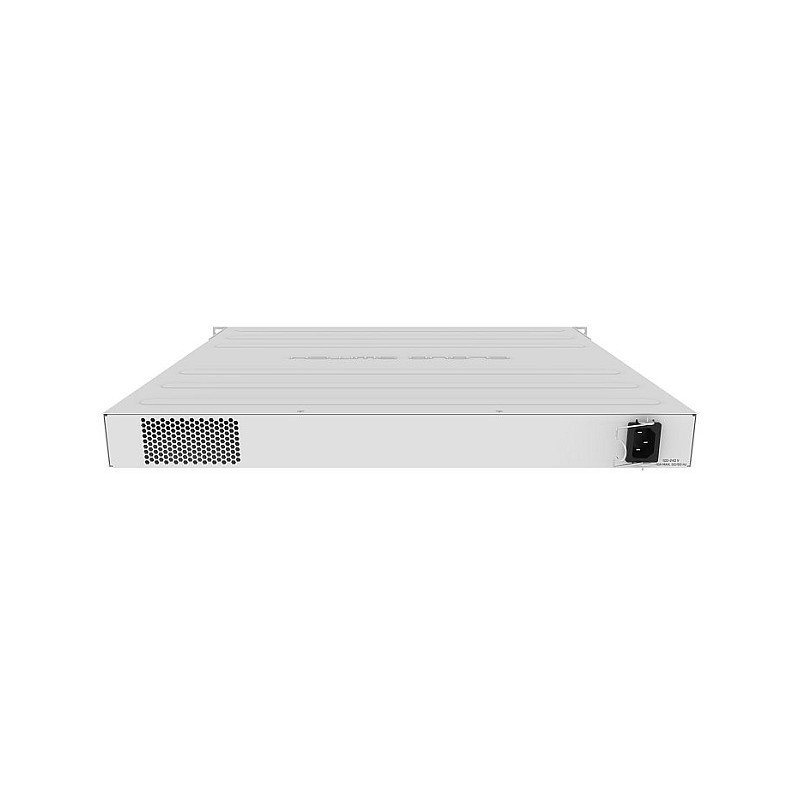

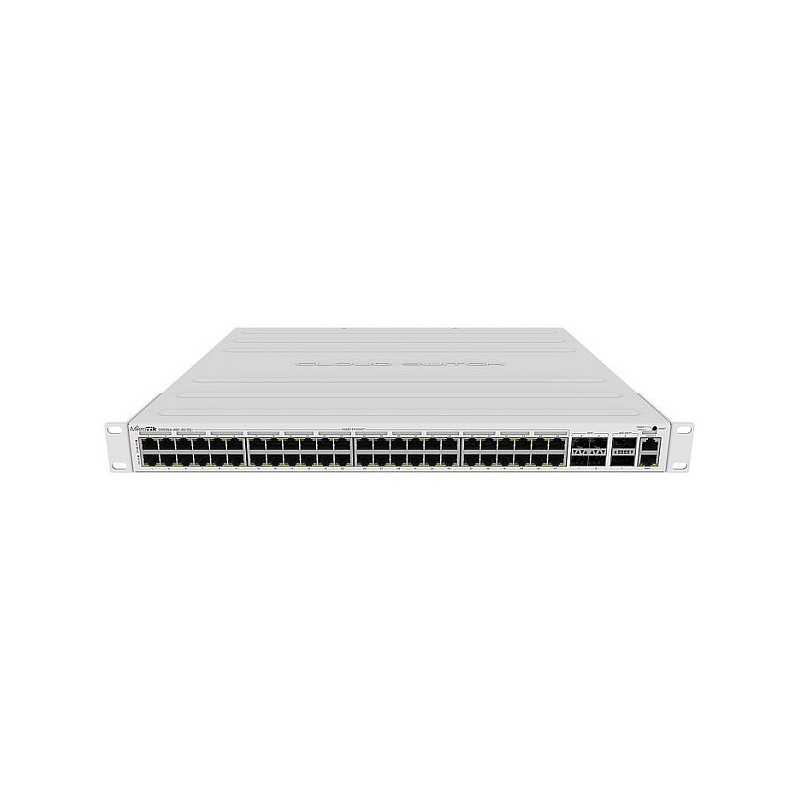

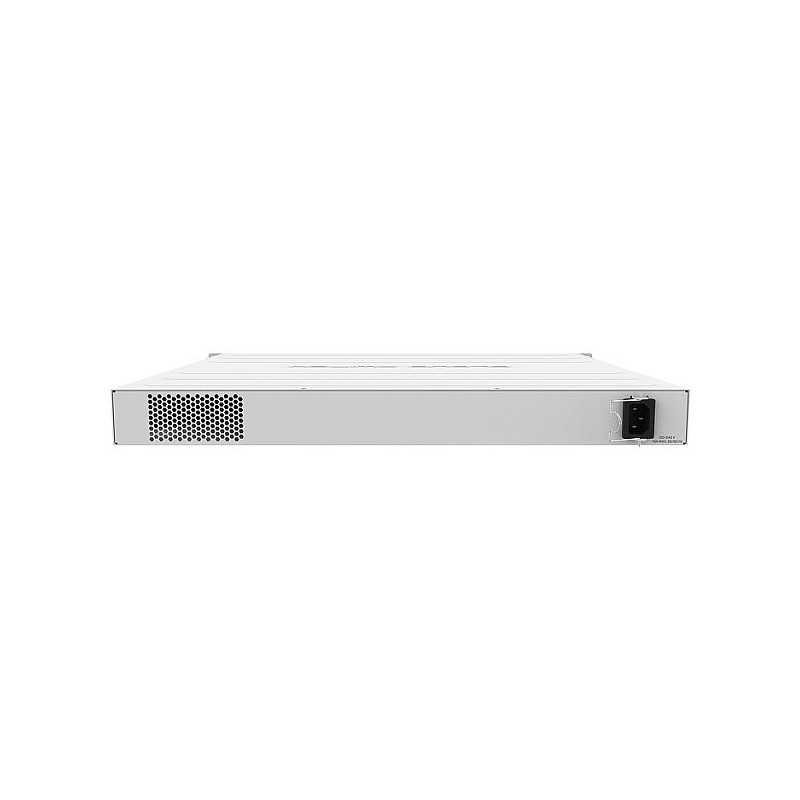

Mikrotik CRS354-48P-4S+2Q+RM network switch

Mikrotik CRS354-48P-4S+2Q+RM. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The 48 port champion you've been waiting for - now with PoE-out!

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices - look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 "PoE" / Type 2 "PoE+") with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power - this switch can handle a lot. And there is a special bracket for easy cable management.

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market - it will make the perfect addition to a professional setup.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity: 1
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 4
QSFP+ module slots quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support

Design

Feature: Rack mounting
Form factor: 1U

Performance

Feature: Built-in processor
Processor model: Qualcomm Atheros QCA9531
Memory type: Flash
Internal memory: 128 MB
Flash memory: 32 MB

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (typical): 85 W
Power consumption (max): 800 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 48
Power over Ethernet (PoE) voltage: 53 V
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 443 mm
Depth: 382 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Rack mount kit

Packaging data

Feature: Screws included

Certificates

Certification: CE/RED, EAC, RoHS
