Mikrotik CRS328-4C-20S-4S+RM network switch

Mikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

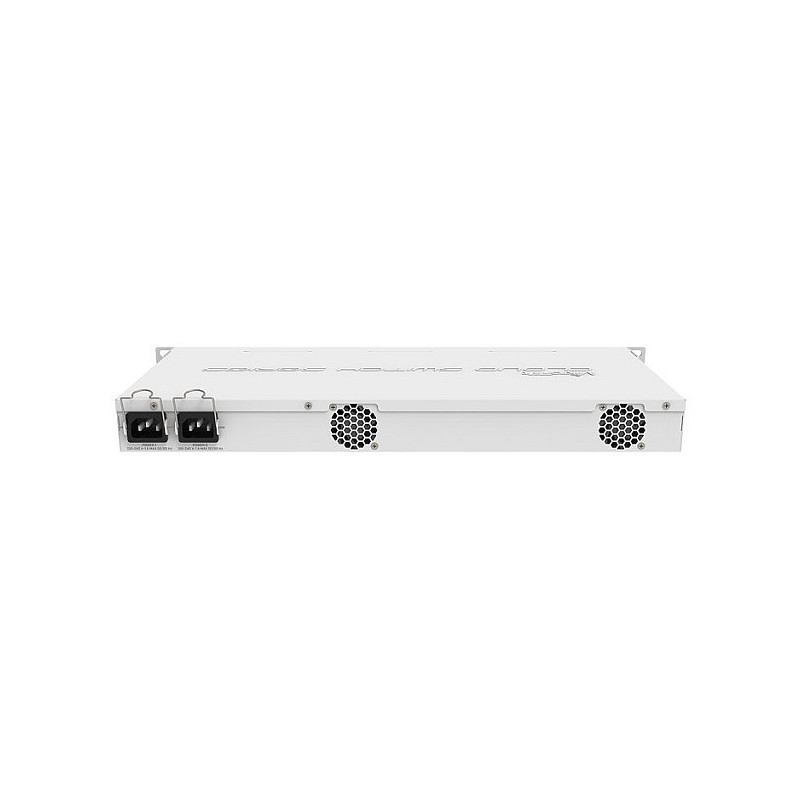

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS.

Management features

Switch type: Managed
Switch layer: L2/L3

Ports & interfaces

Combo SFP ports quantity: 4
SFP module slots quantity: 20
SFP+ module slots quantity: 4
Console port: RJ-45

Network

Networking standards: IEEE 802.1Q, IEEE 802.3ad
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: VLAN support

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.2 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10218

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White
LED indicators: Yes

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Internal memory: 512 MB
Flash memory: 16 MB

Power

Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 - 240 V
Power consumption (max): 43 W

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 443 mm
Depth: 44 mm
Height: 200 mm

Packaging content

Cables included: AC
Feature: Rack mount kit
