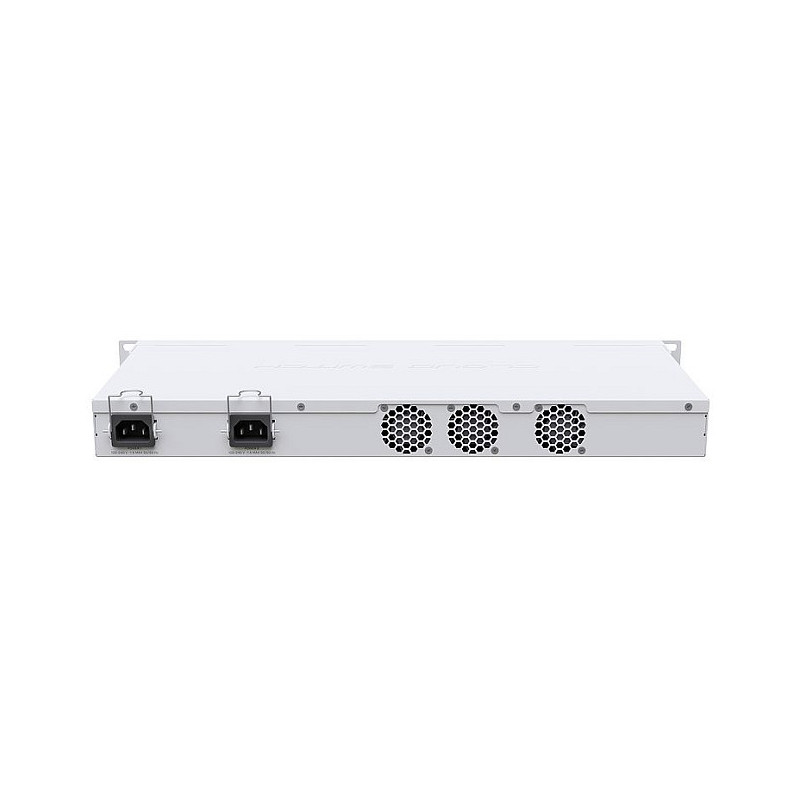

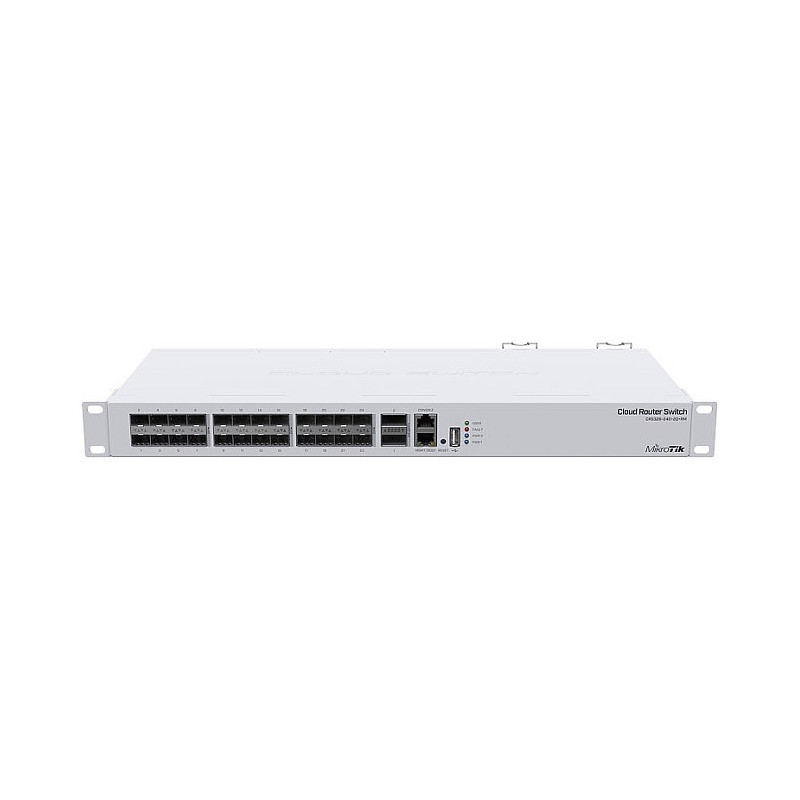

Mikrotik CRS326-24S+2Q+RM network switch

Mikrotik CRS326-24S+2Q+RM. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. Switching capacity: 640 Gbit/s. Power connector: AC-in jack. Rack mounting, Form factor: 1U

If you are working with substantial amount of data - like providing Internet access or maintaining a huge data center - this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage - it has a full size USB port for configuration and dual power supply for redundancy - no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

SFP+ module slots quantity: 24
QSFP+ module slots quantity: 2
Console port: RJ-45
USB 2.0 ports quantity: 1
Power connector: AC-in jack

Network

Feature: 10G support

Data transmission

Switching capacity: 640 Gbit/s
Throughput: 320 Mpps
Forwarding rate: 252 Mpps

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White
Feature: Reset button
LED indicators: Yes

Performance

Feature: Built-in processor
Processor frequency: 650 MHz
Memory type: RAM
Internal memory: 64 MB
Flash memory: 16 MB

Power

Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
Power consumption (max): 69 W

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 443 mm
Depth: 183 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Rack mount kit

Logistics data

Harmonized System (HS) code: 85176990
