Mikrotik CRS309-1G-8S+

Mikrotik CRS309-1G-8S+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1, Console port: RS-232. Switching capacity: 162 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 12 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

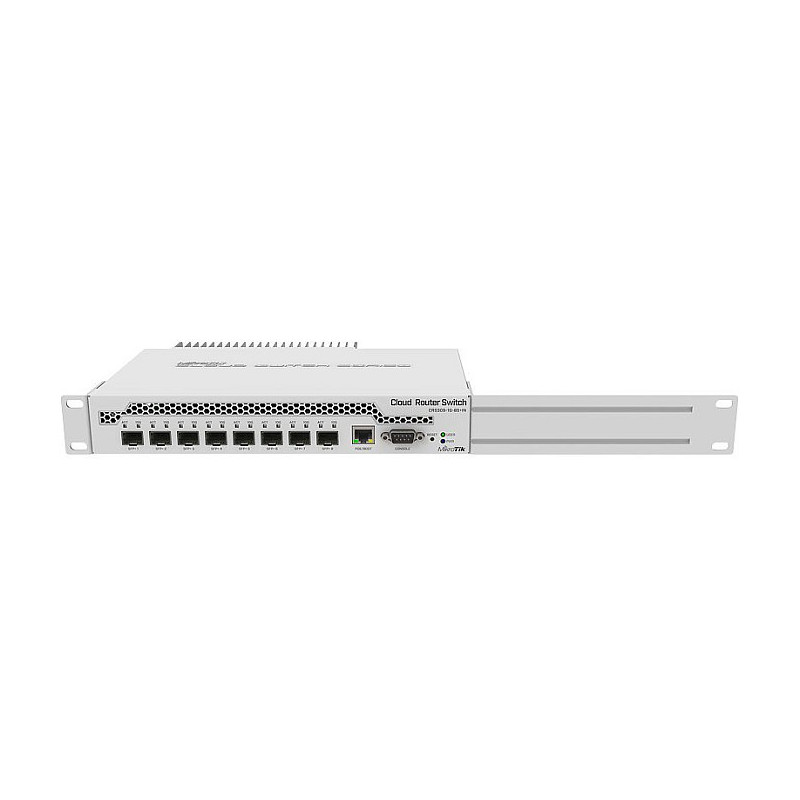

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 8
Console port: RS-232
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support

Data transmission

Switching capacity: 162 Gbit/s

Design

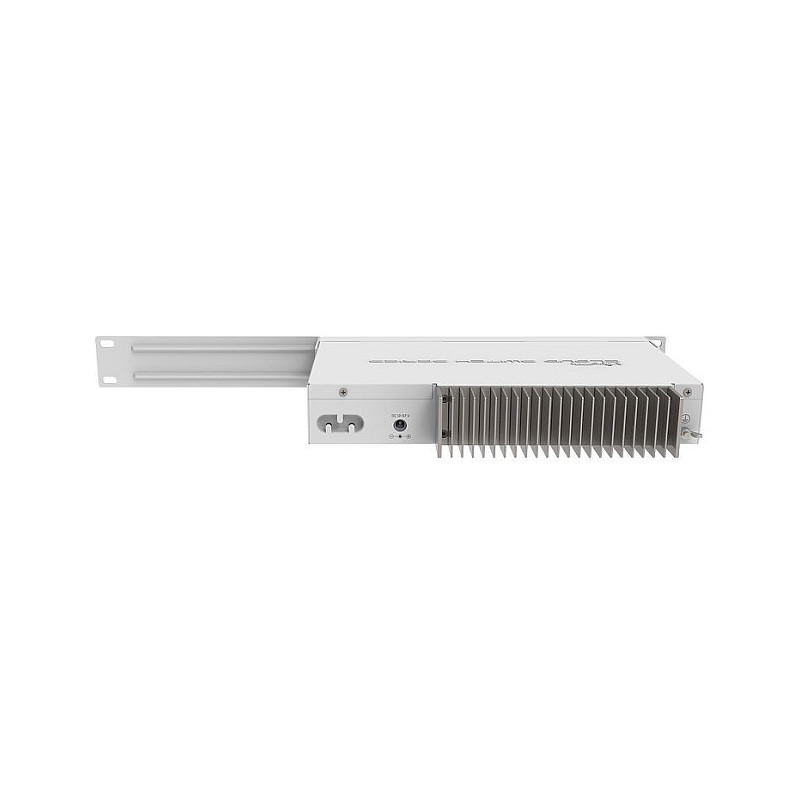

Feature: Rack mounting
Product colour: White

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Memory type: RAM
Internal memory: 512 MB
Flash memory: 16 MB

Power

DC input voltage: 12 - 57 V
Output current: 1.2 A
Power consumption (max): 23 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range: 18 - 57 V

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 141 mm
Depth: 115 mm
Height: 28 mm

Packaging data

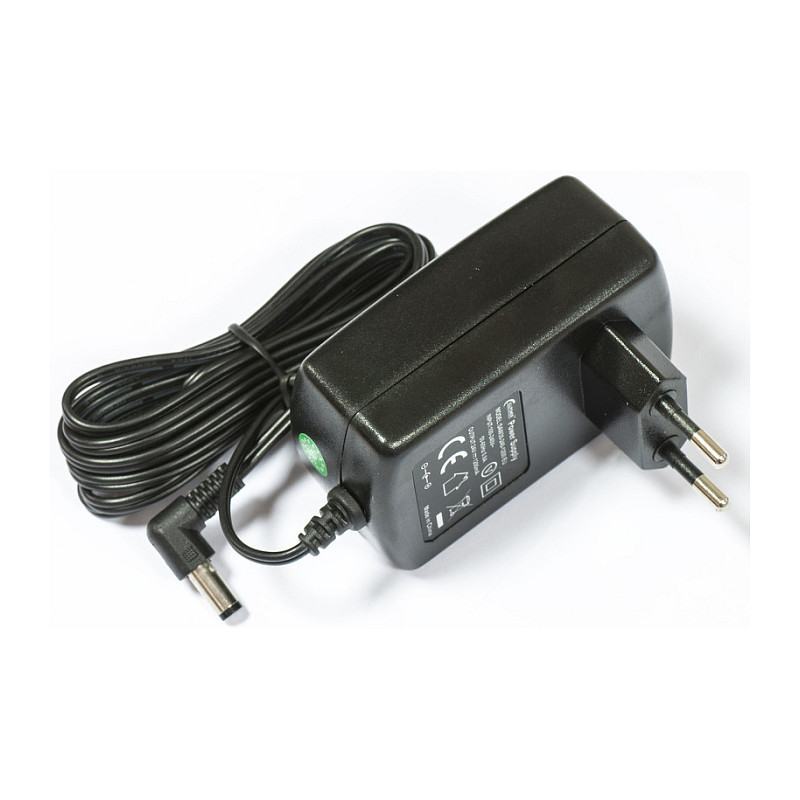

Feature: AC adapter included

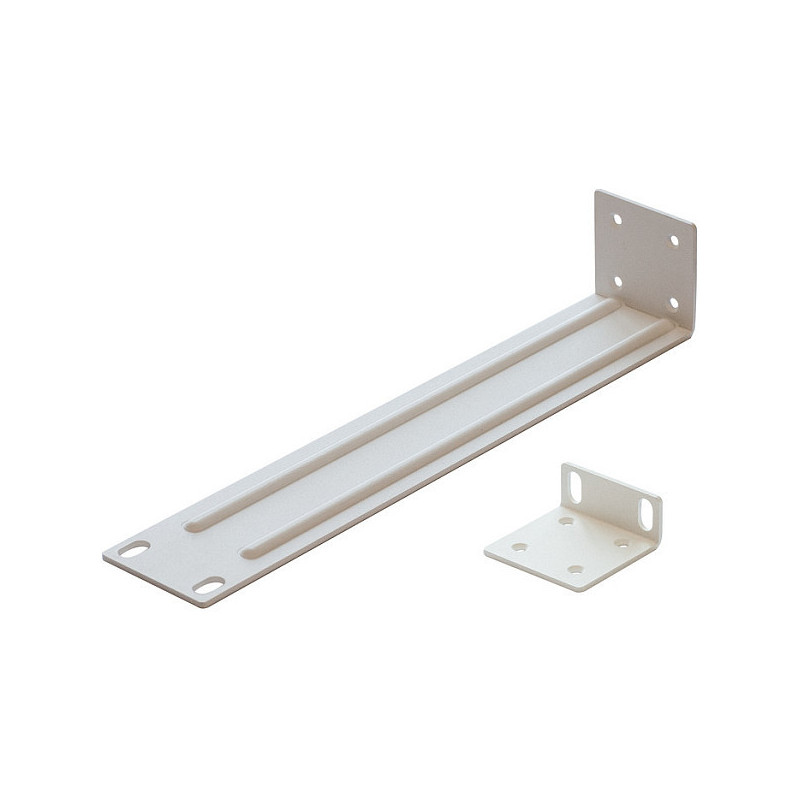

Feature: Mounting brackets included

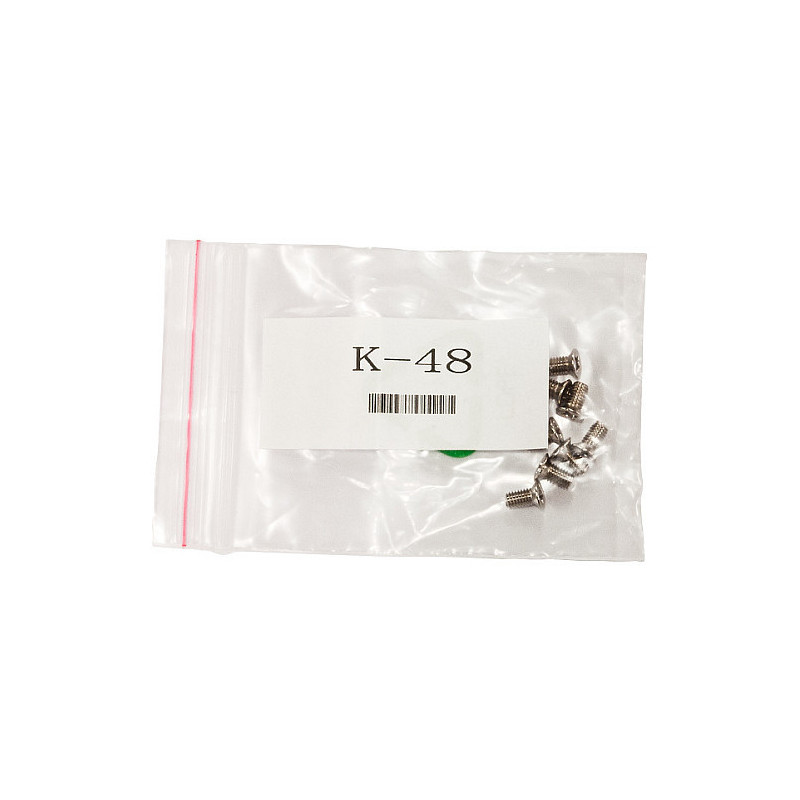

Feature: Screws included
