Mikrotik cAP-2nD

Mikrotik cAP-2nD. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 4 W

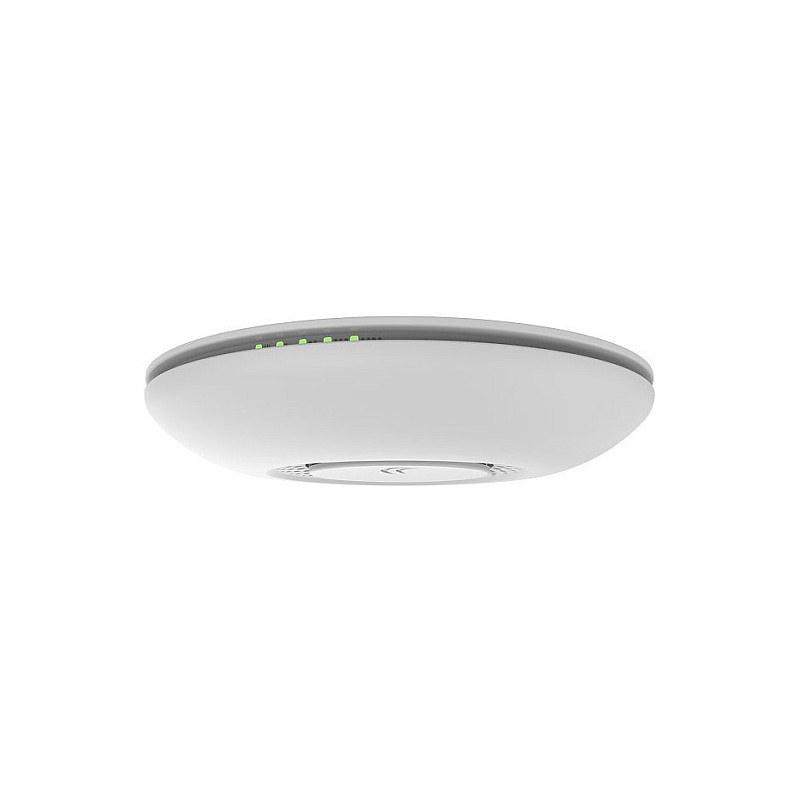

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2nD supports 802.11b/g/n and can be powered by PoE. It's a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

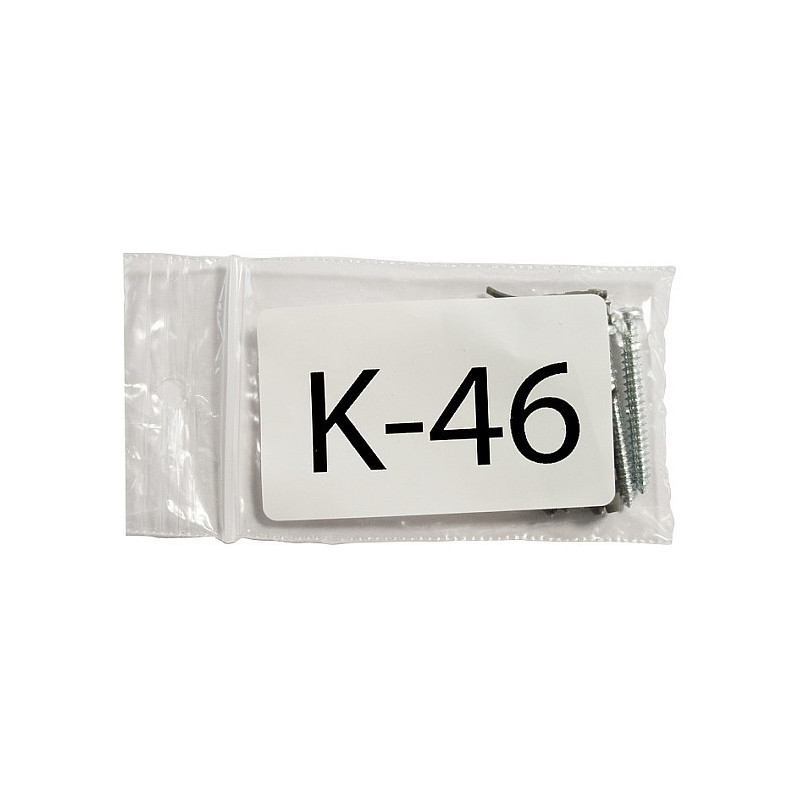

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

Features

Feature: 2.4 GHz
Wi-Fi data rate (max): 54 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Frequency band: 2.4 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: Auto MDI/MDI-X
Transmitting power: 22 dBmW
Receiver sensitivity: 1MBit/s: -96 @ 22dBm Tx11MBit/s: -89 @ 22dBm Tx6MBit/s: -93 @ 20dBm Tx54MBit/s: -74 @ 18dBm TxMCS0: -93 @ 20dBm TxMCS7: -71 @ 26dBm Tx

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 11 - 57 V
Power consumption (max): 4 W

Design

Placement: Ceiling
Product colour: White
LED indicators: Yes

Antenna

Antenna gain level (max): 2 dBi

Performance

Feature: Built-in processor
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: RouterOS

Weight & dimensions

Width: 138 mm
Depth: 138 mm
Height: 31 mm

Packaging content

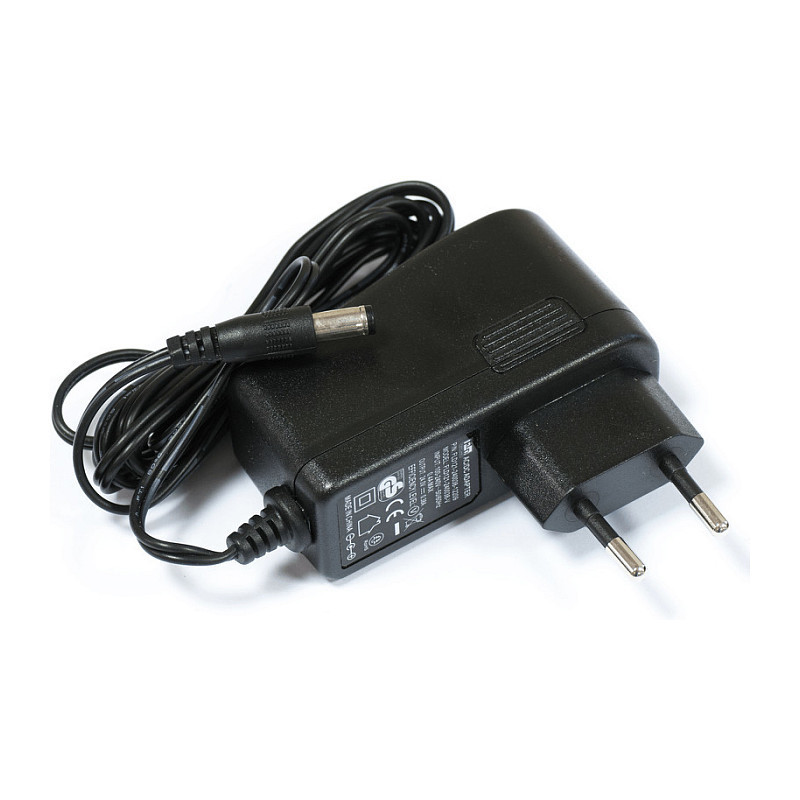

Feature: AC adapter included

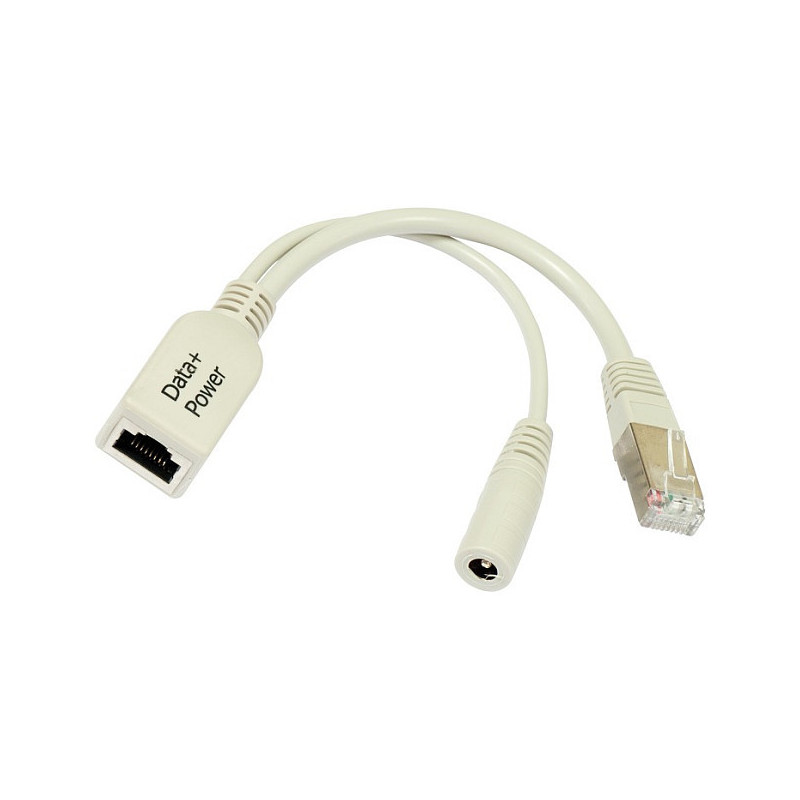

Feature: PoE adapter included

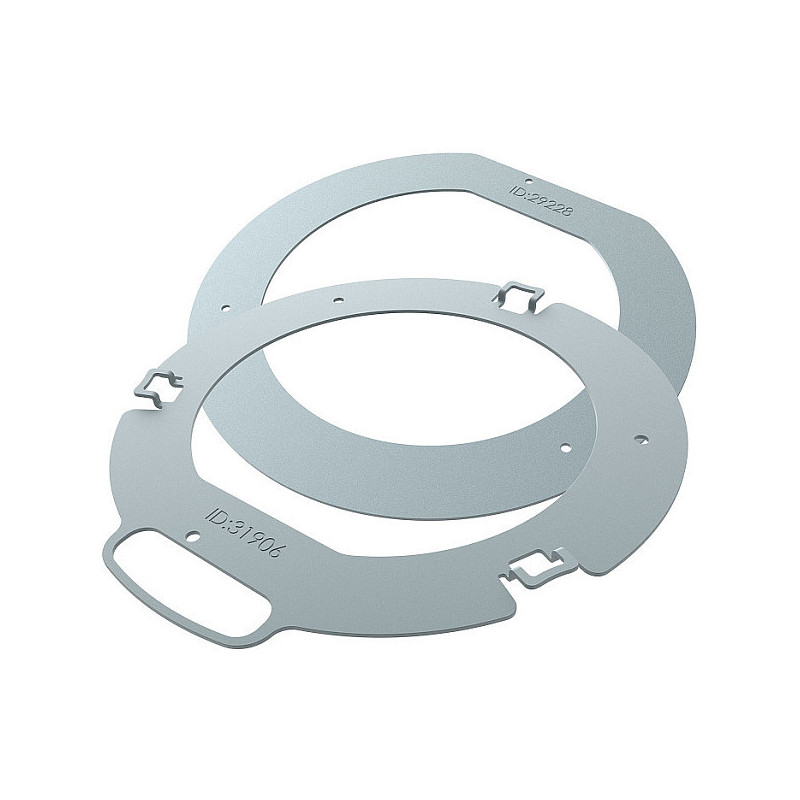

Feature: Mounting kit

Operational conditions

Operating temperature (T-T): -40 - 70 °C
