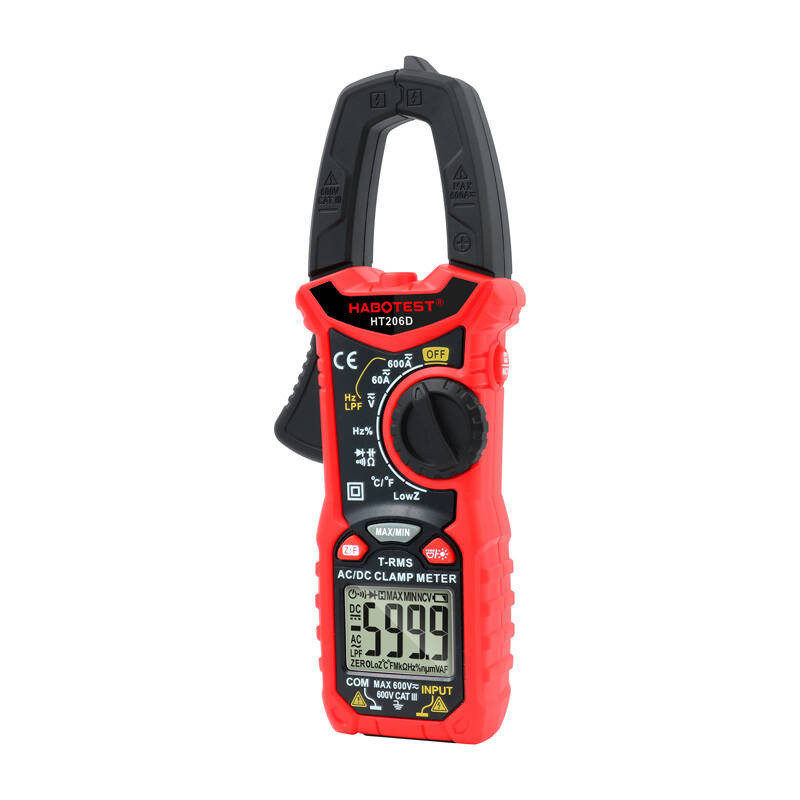

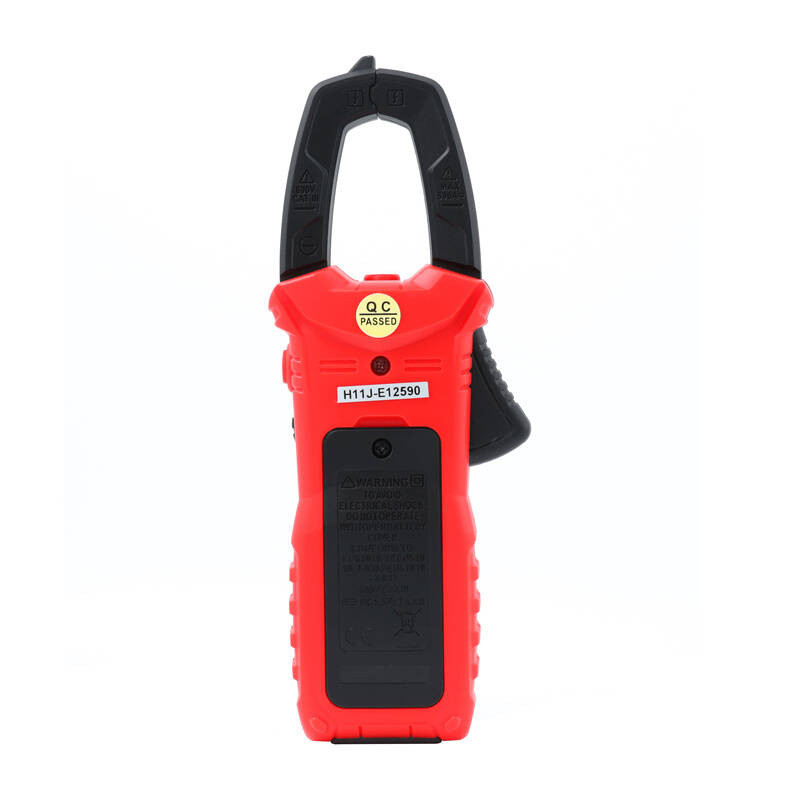

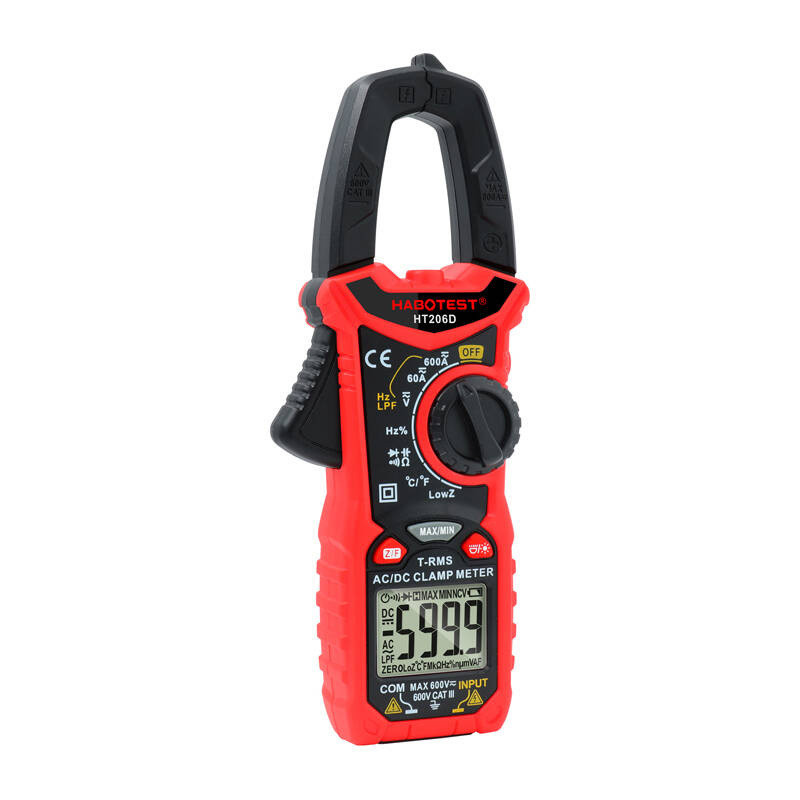

Habotest HT206D is a digital clamp multimeter for measuring AC and DC voltage, current, resistance, capacitance and temperature. It features a backlit LCD display, non-contact voltage detection and a built-in flashlight for use in low-light conditions.
Features | |
|---|---|
| Product type | Digital clamp multimeter |
| Brand | Habotest |
| Model | HT206D |
Specifications | |
| DC voltage measurement range | 600 mV/6 V/60 V/600 V ±(0.5%+5) |
| AC voltage measurement range | 6V/60V/600V ±(0.8%+5) |
| DC current measurement range | 60A/600A ±(2.5%+5) |
| AC current measurement range | 60A/600A ±(2.5%+5) |
| Resistance measurement range | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ ±(1.0%+5) |
| Capacity measurement range | 10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF/100 mF ±(4.0%+3) |
| Frequency measurement range | 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3) |
| Temperature measurement range | -40°C to 1000°C ±(1.0%+2); -40°F to 1832°F ±(1.0%+2) |
| Number of digits | 6000 |
| Range selection | Automatic |
| Continuity test | Yes, sound and light signal |
| Diode testing | Yes |
| Data storage | Yes |
| Non-contact voltage detection (NCV) | Yes, sound and light signal |
| Lighting | Yes |
| Flashlight | Yes |
| DCA zero | Yes |
| Low battery indicator | Yes |
| Automatic shutdown | Yes |
| True RMS value | Yes |
| LowZ | Yes |
| Power supply | 2x AAA 1.5V battery (included) |
| Weight | About 260g |
| Dimensions | 193x73x34 mm |
| Pliers size | 26x44 mm |
| Security | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V |
| Height | 100mm |
| Length | 250mm |
| Weight | 390 g |
| Width | 150mm |
