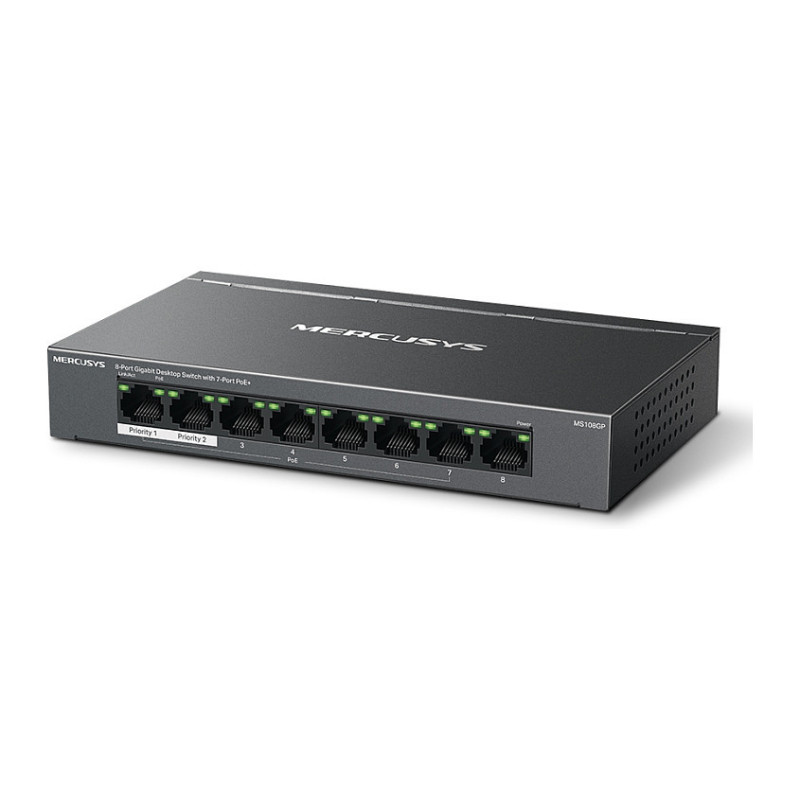

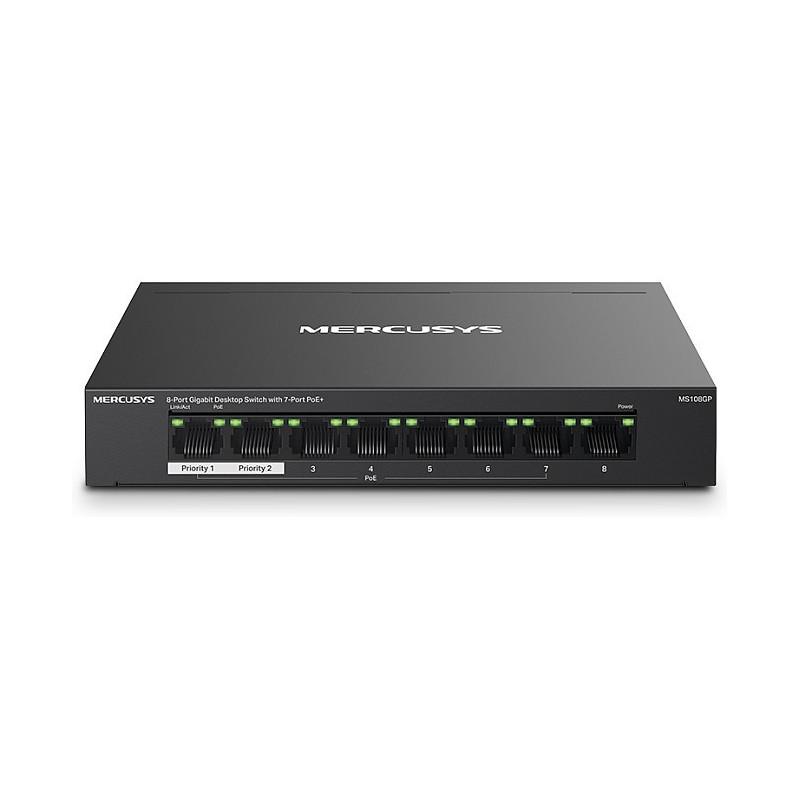

Mercusys MS108GP network switch

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

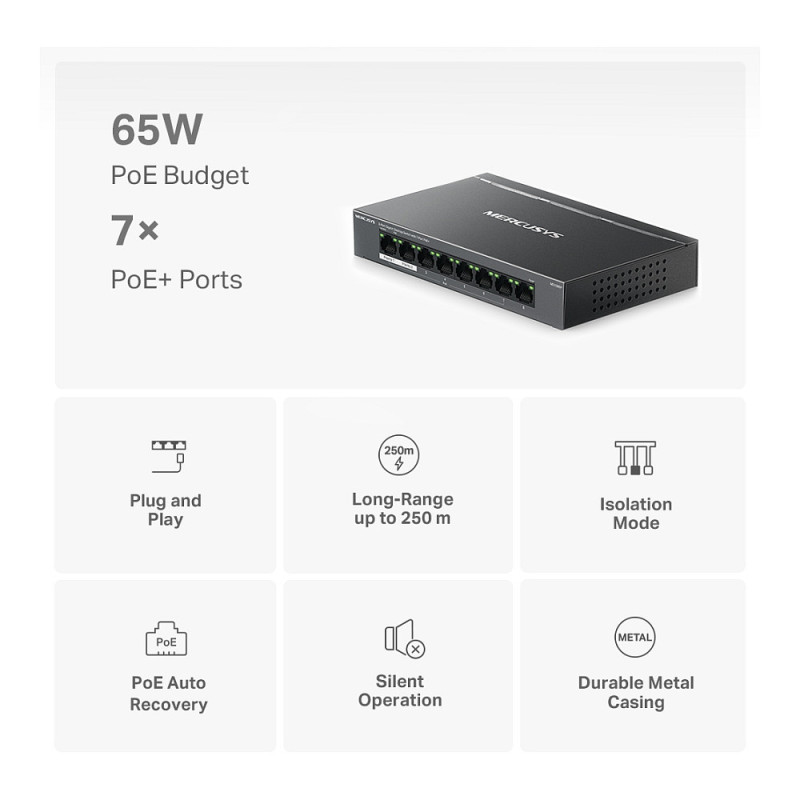

7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

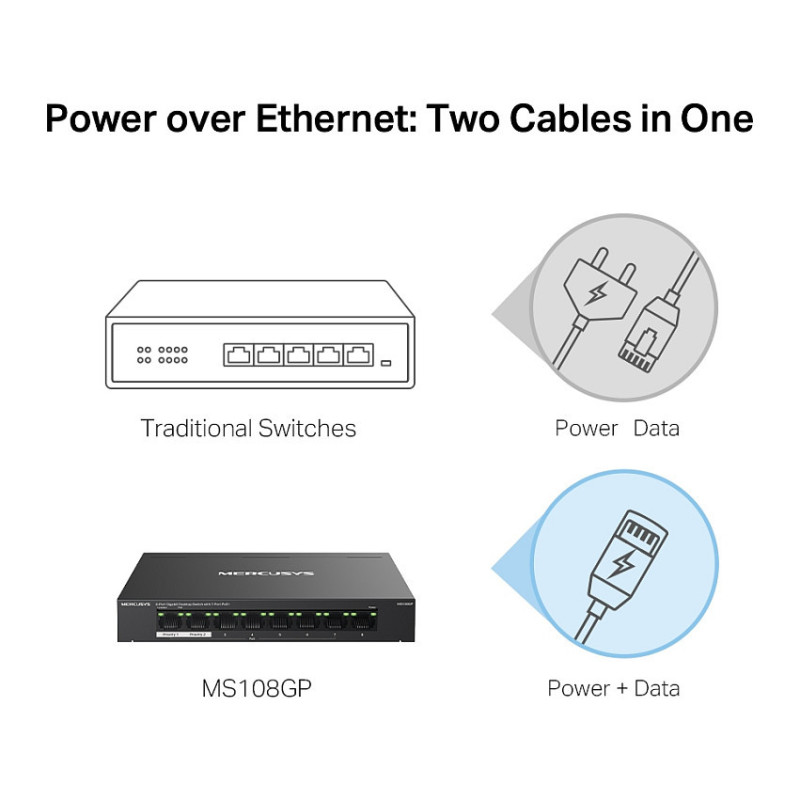

No Fuss
No need for electricians; simplify installation and deployment.

Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility
Deployment in complex situations is made possible by more placement possibilities.

Power Management
Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.

Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

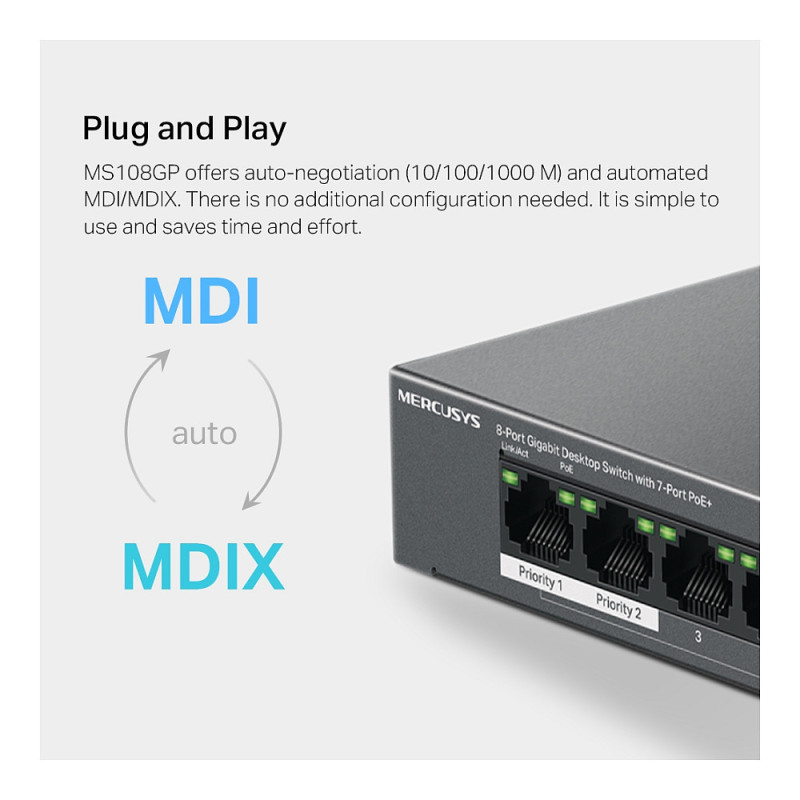

Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

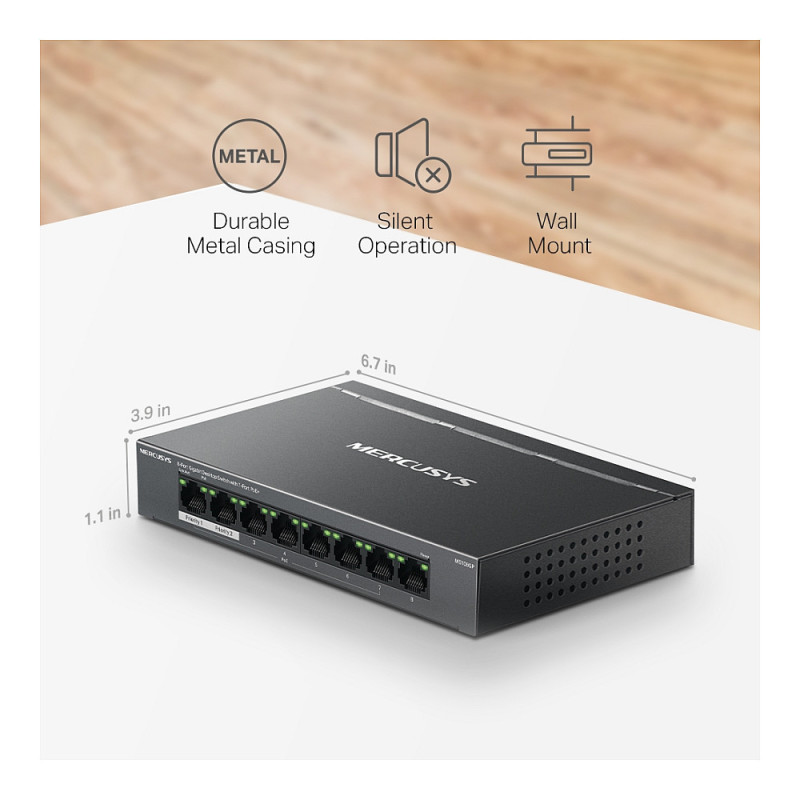

Durable and Silent
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

Management features

Switch type: Managed
Feature: Web-based management
Feature: Traffic classification

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Feature: Full duplex
Feature: Policy-based routing
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X

Data transmission

MAC address table: 8000 entries
Feature: Store-and-forward

Design

Product colour: Black
Housing material: Metal
Feature: Wall mountable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 220 V
AC input frequency: 50 Hz
Input current: 1.31 A
Input voltage: 53.5 V
Power consumption (typical): 5.07 W
Power consumption (max): 77.33 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 7
Power over Ethernet plus (PoE+) ports quantity: 1
Power over Ethernet (PoE) power per port: 65 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 262.922 BTU/h

Weight & dimensions

Width: 171 mm
Depth: 98 mm
Height: 27 mm

Packaging content

Cables included: AC
Feature: Quick start guide
