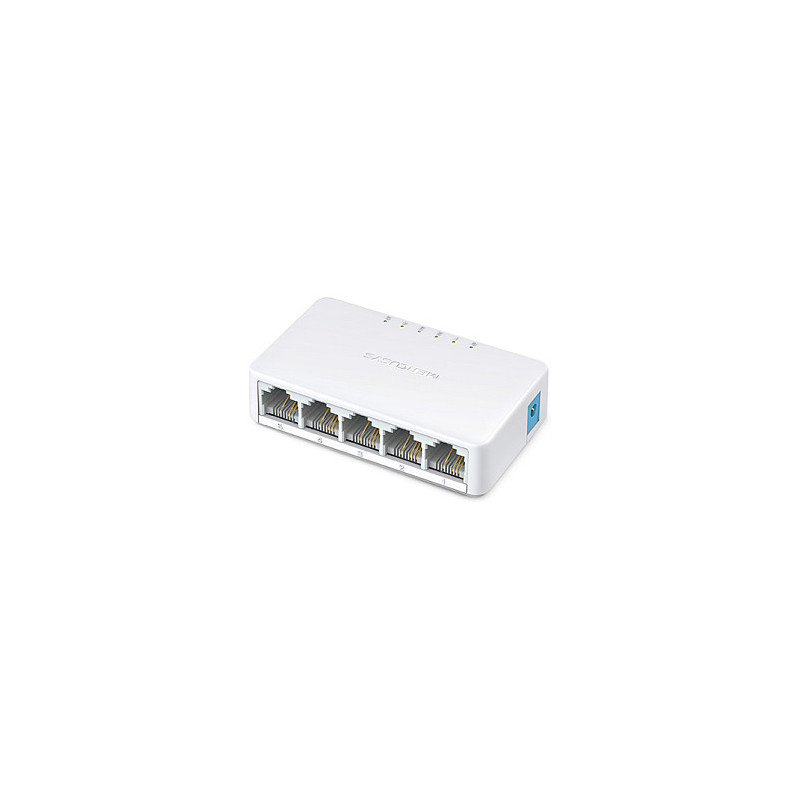

Mercusys MS105 network switch

Mercusys 5-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Easy Wired Network Expansion
5-Port 10/100Mbps Desktop Switch

Sleek,Ultra-Compact Design
About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.

Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.

Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 2000
Packet buffer memory: 0.768 MB

Design

Product colour: White
LED indicators: LAN, Power

Power

Power source: DC
Feature: Power supply included
Input current: 0.6 A
Input voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 82 mm
Depth: 49 mm
Height: 21 mm

Packaging content

Feature: Quick start guide

Packaging data

Package width: 87 mm
Package depth: 80 mm
Package height: 57 mm
Package weight: 140 g

Certificates

Certification: CE, RoHS
