Meter - UNI-T UT502A Digital Insulation Resistance Tester 500V-2500V, 20 GΩ
Product reference: 14-6935750550212

UT502A is a digital insulation resistance tester that measures insulation resistance at 500V, 1000V and 2500V, with a maximum range of up to 20GΩ. In addition, it measures low resistance, AC voltage and has functions for testing polarization index and dielectric absorption ratio.

Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ
Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ
Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ
Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ
Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ
Matuoklis - UNI-T UT502A Skaitmeninis Izoliacijos Atsparumo Testeris 500V-2500V, 20 GΩ

Meter - UNI-T UT502A Digital Insulation Resistance Tester 500V-2500V, 20 GΩ

Product reference: 14-6935750550212

UT502A is a digital insulation resistance tester that measures insulation resistance at 500V, 1000V and 2500V, with a maximum range of up to 20GΩ. In addition, it measures low resistance, AC voltage and has functions for testing polarization index and dielectric absorption ratio.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
167,86 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

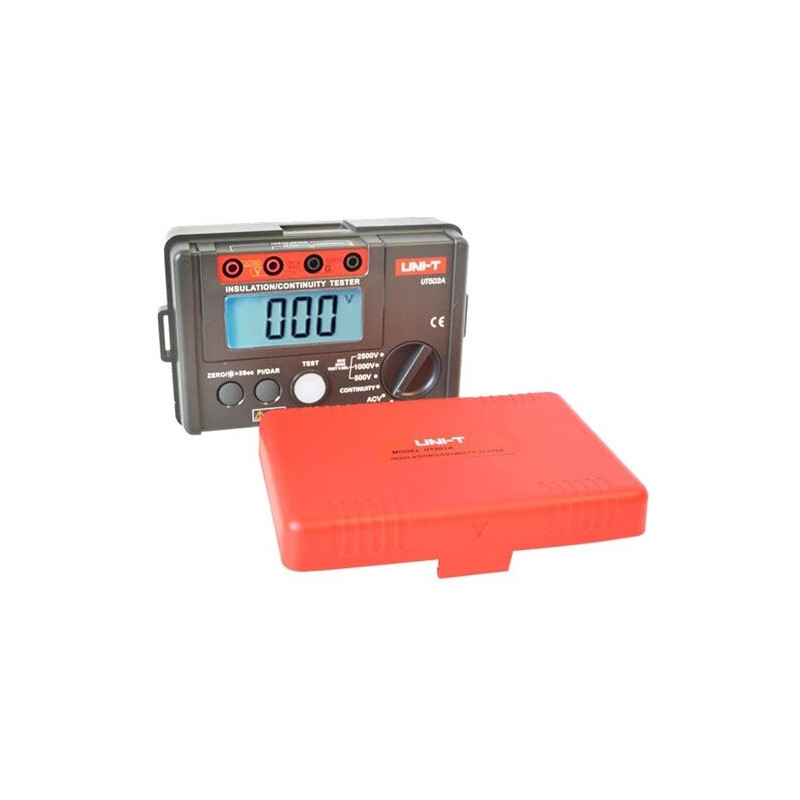

Digital insulation resistance tester UNI-T UT502A


UT502A is a digital insulation resistance tester that measures insulation resistance at test voltages of 500V, 1000V and 2500V, with a maximum range of up to 20GΩ. It also measures low resistance, AC voltage and has functions for measuring polarization index and dielectric absorption coefficient.


  • Universal insulation resistance tester for measuring insulation resistance, low-resistance continuity and AC voltage.
  • High insulation resistance measurement range up to 20 GΩ, suitable for high insulation applications.
  • Advanced features including polarization index (PI) and dielectric absorption coefficient (DAR) for detailed insulation evaluation.

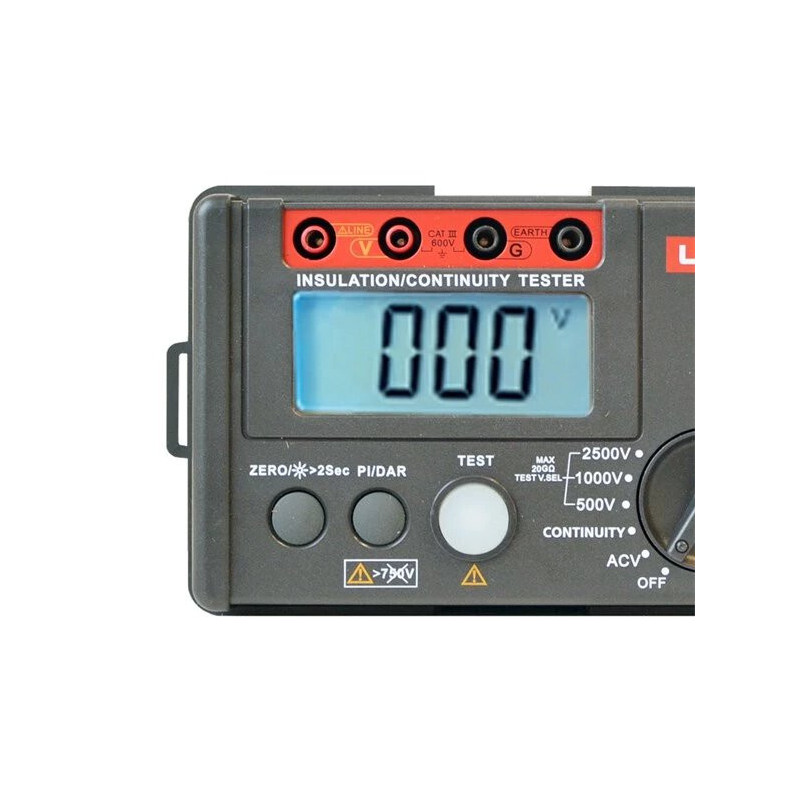

  • User-friendly interface with illuminated display, automatic range selection and safety alerts for convenience and safety.

Features

Product type Digital Insulation Resistance Tester
Brand UNI-T
Model UT502A

Specifications

Insulation resistance measurement range 0~20GΩ (2500V)
Low impedance measurement range 0 ~ 200Ω
AC voltage measurement range 30~750V
Test voltage options 500V, 1000V, 2500V
Testing current 1 ~ 1.1mA
Short-circuit current < 1.8mA
Dielectric absorption coefficient measurement 60s/15s, 60s/30s
Polarization index measurement Yes

Additional information

Screen Backlit LCD
Automatic range selection Yes
Battery level indicator Yes
High voltage warning Yes
Maximum reading 2000
Automatic shutdown Yes
Zero function Yes

Safety warning

Use the product only for its intended purpose to ensure safety and accuracy.

Height200mm
Length300mm
Weight700g
Width150mm
