Meter - Uni-T UT125C, 600V AC / DC, 400mA, 40MΩ, Black / Red
Product reference:
14-6935750512531
The UT125C is a compact multimeter that measures DC and AC voltage up to 600V, current up to 400mA and resistance up to 40MΩ. It also has functions for capacitance, frequency and continuity testing.
Meter - Uni-T UT125C, 600V AC / DC, 400mA, 40MΩ, Black / Red
Product reference:
14-6935750512531
The UT125C is a compact multimeter that measures DC and AC voltage up to 600V, current up to 400mA and resistance up to 40MΩ. It also has functions for capacitance, frequency and continuity testing.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available

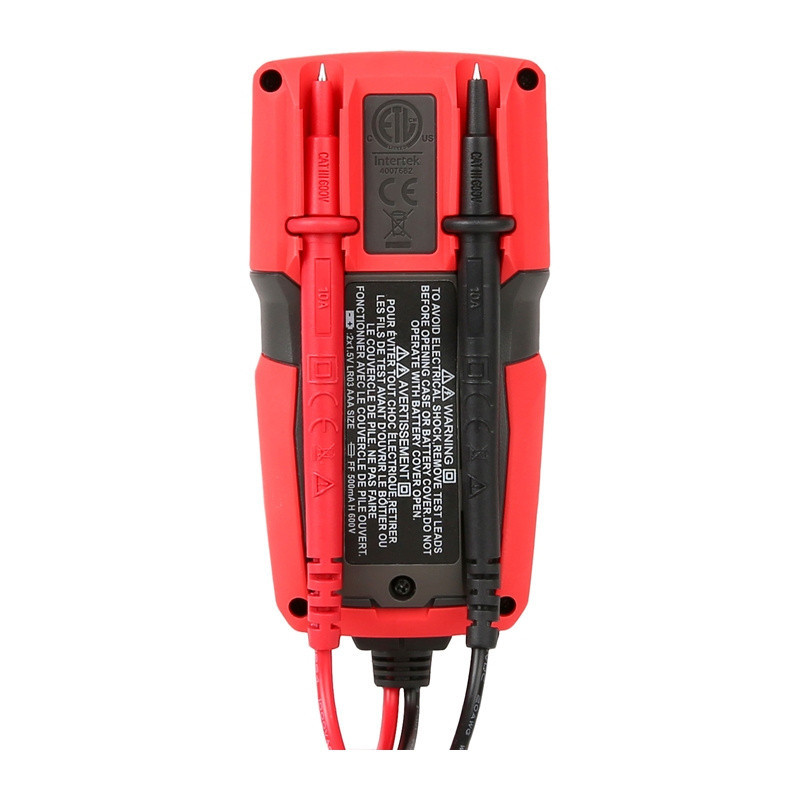

Uni-T UT125C Pocket Universal Multimeter
The UT125C is a compact multimeter that measures DC and AC voltage up to 600V, current up to 400mA and resistance up to 40MΩ. It also has functions for capacitance, frequency measurement and continuity testing.
- Compact and versatile multimeter, suitable for both professionals and hobbyists.
- Measures DC and AC voltage up to 600V, current up to 400mA and resistance up to 40MΩ.
- Automatic measurement range selection and non-contact voltage detection for greater safety and convenience.
- Equipped with a backlit LCD display and low battery indication, improving use in a variety of conditions.
Features | |
|---|---|
| Product Type | Multimeter |
| Product Brand | Uni-T |
| Model | UT125C |
Specifications | |
| DC Voltage Measurement | 400 mV / 4 V / 40 V / 400 V / 600 V |
| AC Voltage Measurement | 4V / 40V / 400V / 600V |
| Direct Current Measurement | 400 µA / 4 mA / 40 mA / 400 mA |
| Alternating Current Measurement | 400 µA / 4 mA / 40 mA / 400 mA |
| Resistance Measurement | 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm |
| Capacity Measurement | 50 nF / 500 nF / 5 µF / 50 µF / 100 µF |
| Frequency Measurement | 9.999Hz ~ 60kHz |
| Duty Cycle Measurement | 20% ~ 80% |
| Temperature Range | -40°C to 300°C |
Additional Information | |
| Features |
|
| Security Warning | Use the product only for its intended purpose to ensure safety. |
| Height | 70mm |
| Length | 220mm |
| Weight | 300g |
| Width | 120mm |
