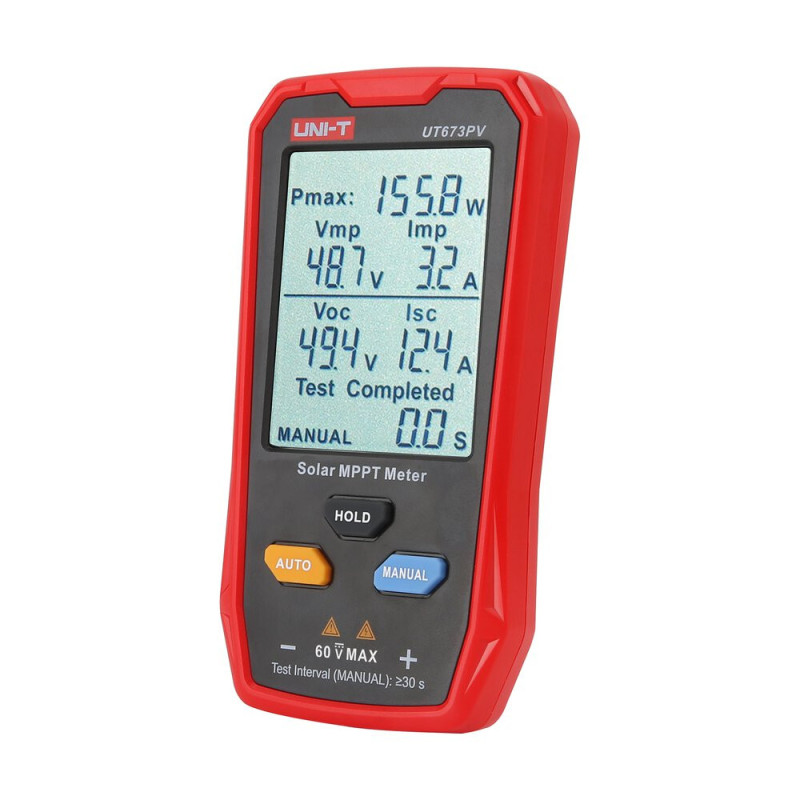

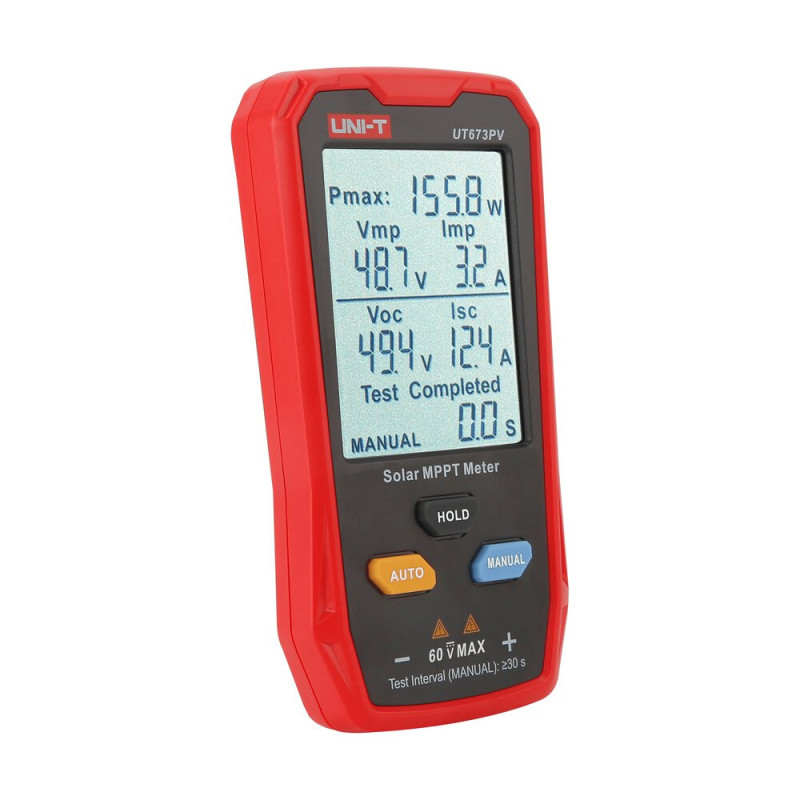

Photovoltaic Panel Parameters Meter UT673PV UNI-T


UT673PV is a portable photovoltaic panel parameter meter that measures maximum power, maximum power point voltage, short-circuit current and reverse voltage. It operates without batteries, directly receiving power from the tested solar panel, making it practical for outdoor use.


  • Specially designed for photovoltaic (PV) systems, allowing accurate measurement of key parameters such as maximum power, voltage and current.
  • Powered directly from a solar panel, eliminating the need for batteries and increasing portability when working outdoors.

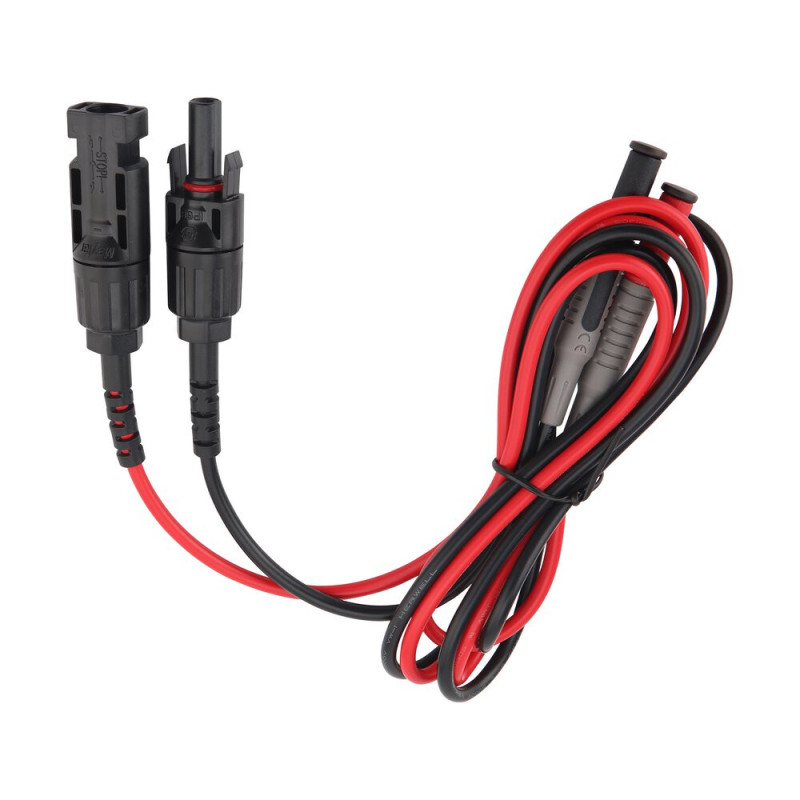

  • Equipped with MC4 connectors, ensuring safe and quick connections to solar panels, making it easier for installers and technicians to use.
  • Offers both manual and automatic MPPT test modes, making it versatile for a variety of installation and diagnostic applications.

Features

Product Type Photovoltaic Panel Parameters Meter
Product Brand UNI-T
Model UT673PV

Specifications

Maximum Power Meter (Pmax) 5 - 800W
Current Meter (Imp) 0 - 35A
MPPT Voltage Meter (Vmp) 12 - 60V DC
Reverse Voltage Meter (Voc) 12 - 60V DC
Short Circuit Current Meter (Isc) 0 - 35A
Screen LCD 52 × 66 mm
Power supply Powered directly from the solar panel

Technical Data

Connectors MC4
Testing Modes Manual and Automatic MPPT
Safety Features Reverse polarity, overvoltage, overcurrent, overheating, power overload protection

Application

  • Installation of PV systems
  • Services and diagnostics
  • Quality control in solar panel production
  • Education and demonstrations

Height70mm
Length220mm
Weight450 g
Width120mm
