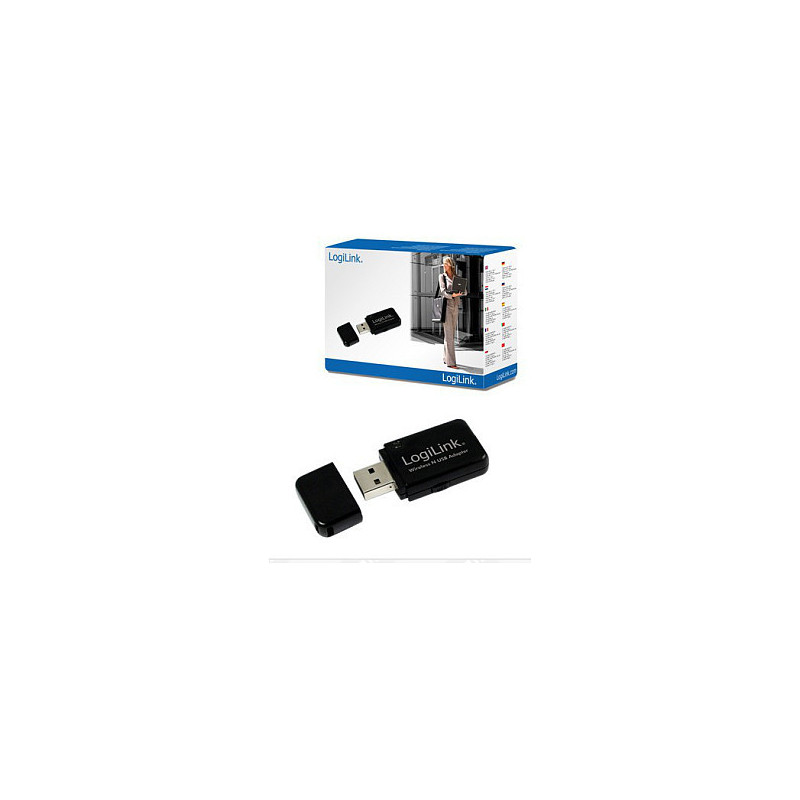

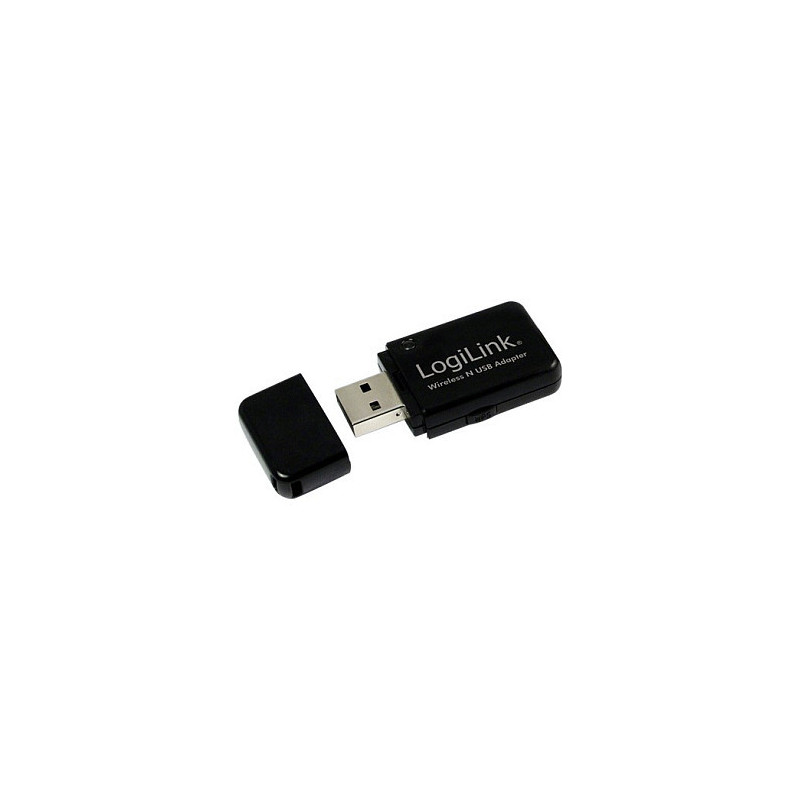

LogiLink WL0086B network card

LogiLink WL0086B. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz)
WLAN USB Adapter from LogiLink with internal antenna. With WEP, WPA and WPA2 encryptionit offers all the options for a secure connection and can be easily configured using WPS and also integrated into the wireless network.

Ports interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 2.0

Network

Maximum data transfer rate: 300 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi: Yes
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 11,54,300 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS

Design

Internal: No
Chipset: Realtek RTL8192EU
WPS push button: Yes
LED indicators: Activity, Link

Power

Input current: 0.16 A
Output voltage: 5 V

System requirements

Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 10 - 60 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Packaging data

Drivers included: Yes
Quantity per pack: 1 pc(s)
Package width: 173 mm
Package depth: 138 mm
Package height: 25 mm

Packaging content

Quick installation guide: Yes
Manual: Yes

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 520 mm
Master (outer) case length: 366 mm
Master (outer) case height: 185 mm
Products per master (outer) case: 40 pc(s)
