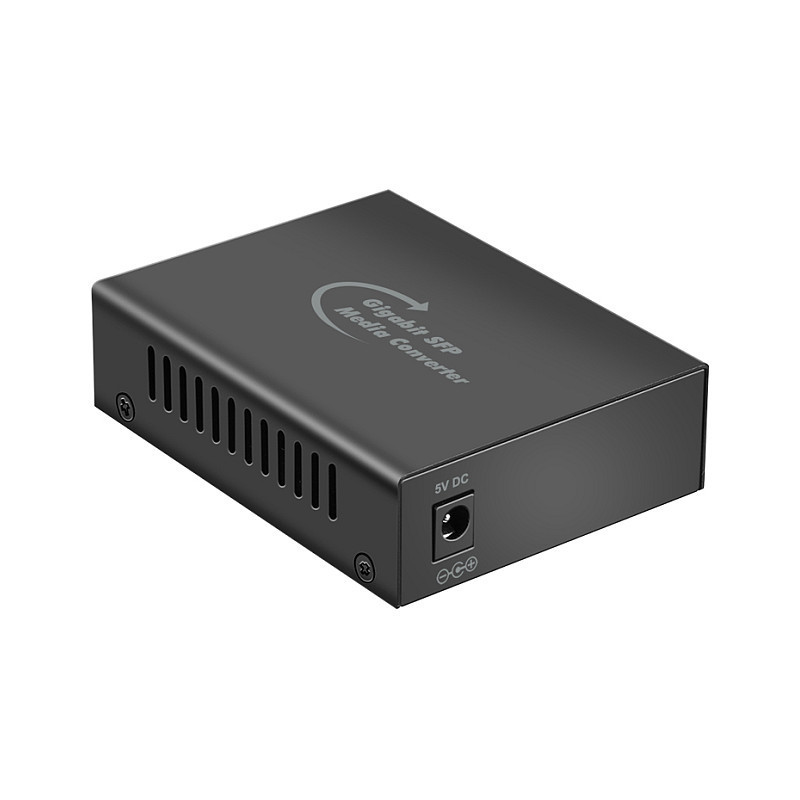

LogiLink NMC001 network media converter

LogiLink NMC001. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-X, Converter output interface: 1000Base-X. Product colour: Black, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 0.55 A, Power consumption (max): 1.65 W. Width: 93.5 mm, Depth: 70.5 mm, Height: 26 mm

The LogiLink Standalone Media Converter seamlessly converts electrical Ethernet signals to optical signals, enabling direct connections between copper and fiber optic cables. It is ideal for extending network reach, supporting distances of up to 20 kilometers over fiber and ensuring high availability and flexibility in the network architecture. The converter is ideal for integrating legacy networks with new cabling or overcoming length limitations.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-X
Converter output interface: 1000Base-X
Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transfer rate: 1000 Mbit/s

Features

LED indicators: Yes
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired

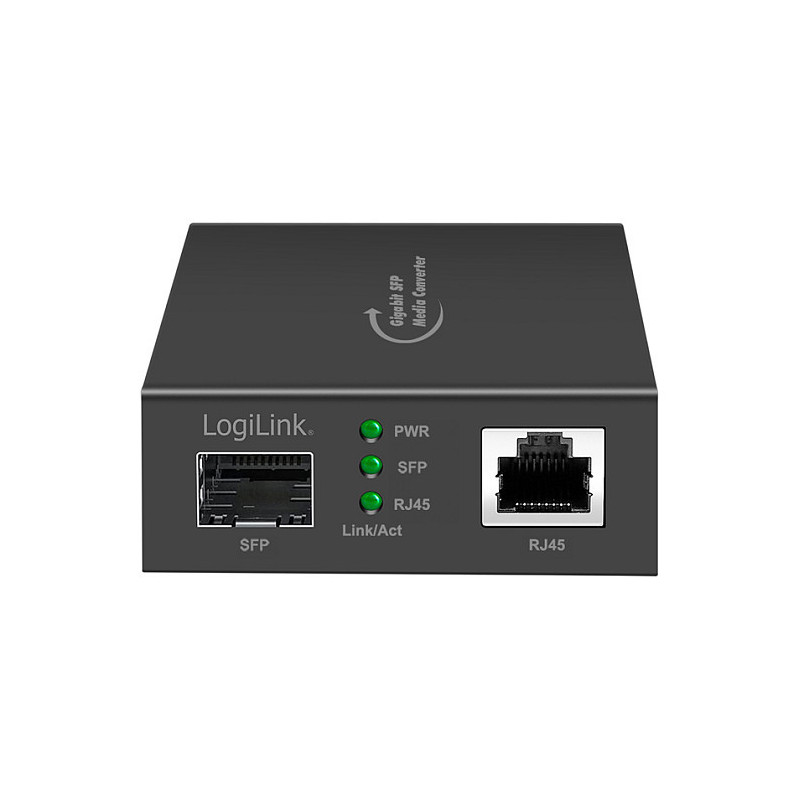

Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1

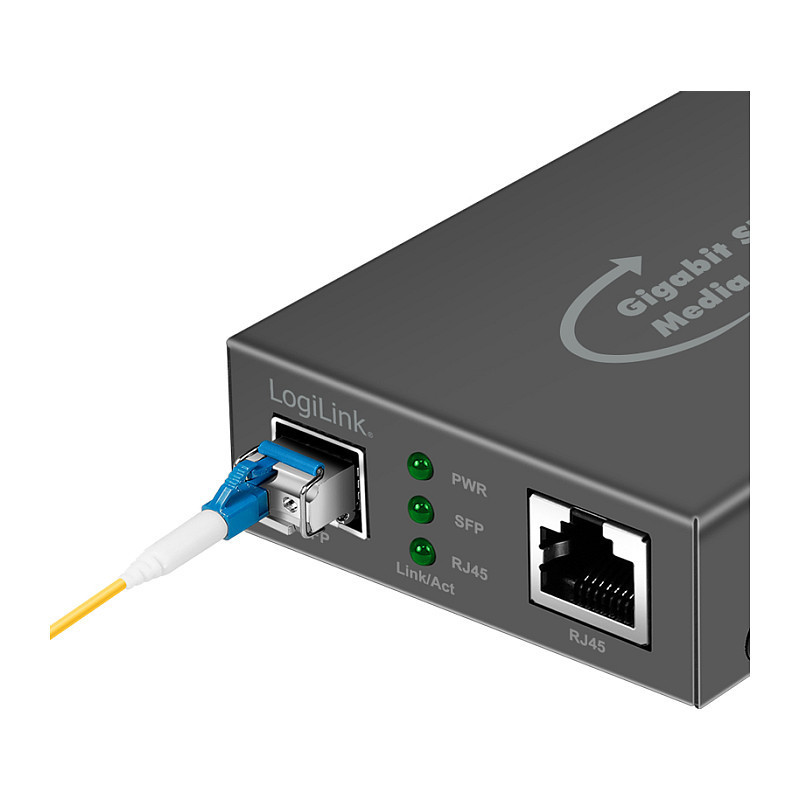

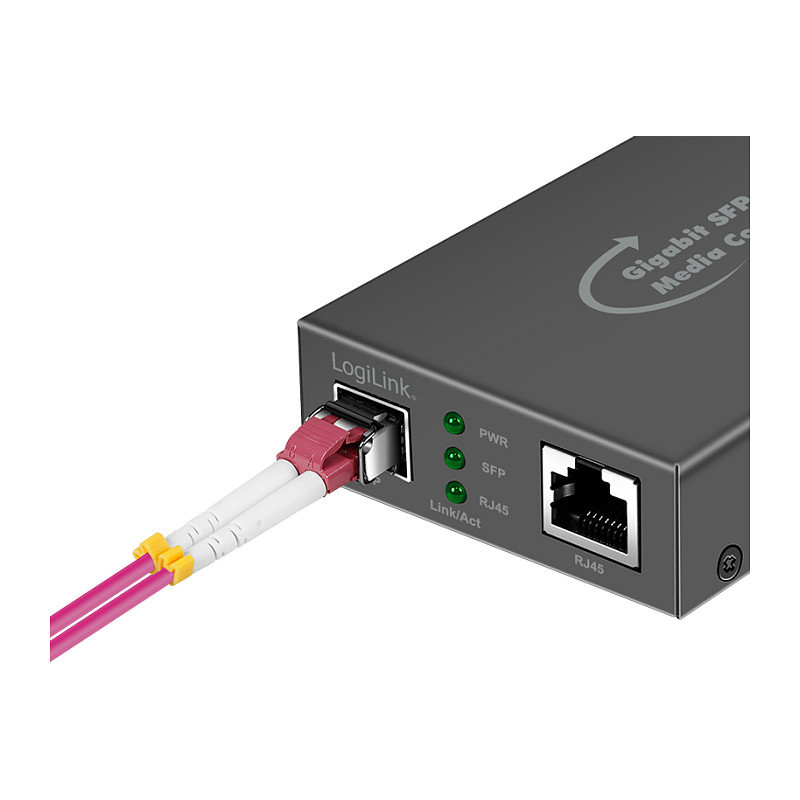

Fiber optic connector: SFP
Feature: DC-in jack

Power

Input voltage: 5 V
Input current: 0.55 A
Power consumption (max): 1.65 W
Feature: External power adapter

Weight & dimensions

Width: 93.5 mm
Depth: 70.5 mm
Height: 26 mm
Weight: 124 g

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 20 - 80%

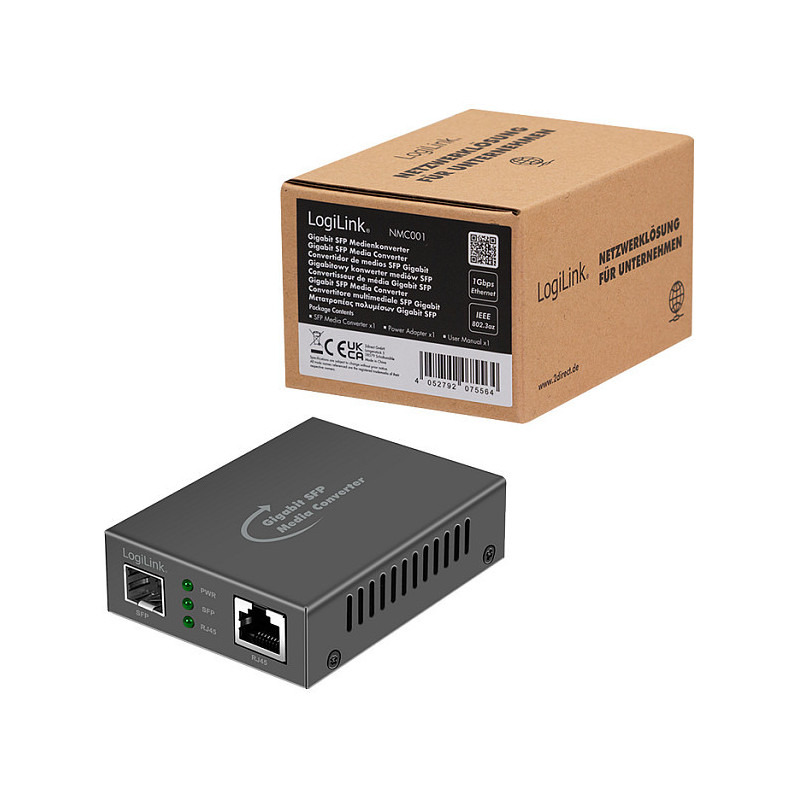

Packaging content

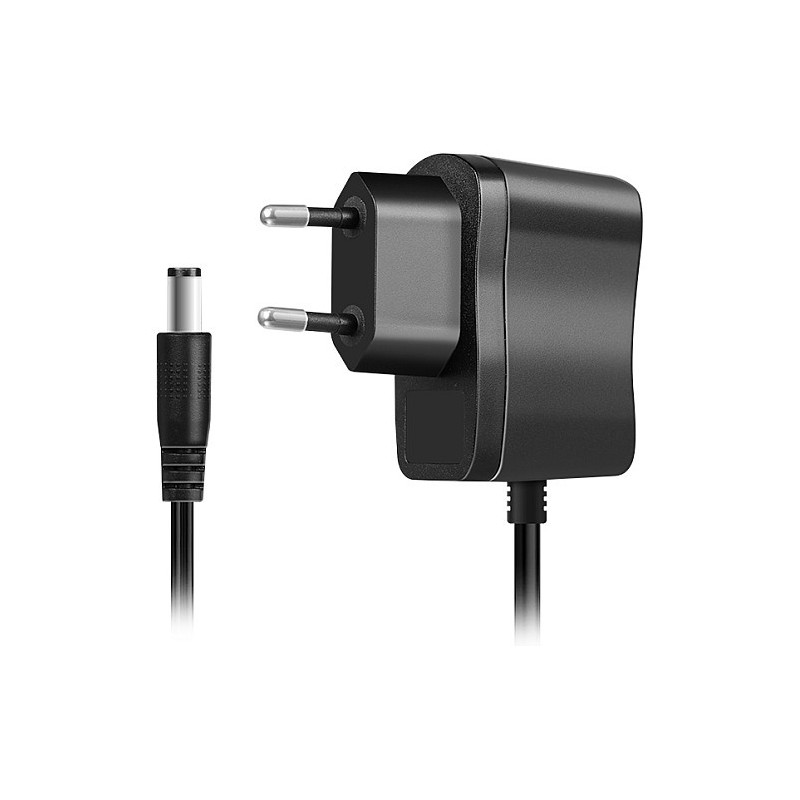

Feature: AC adapter included
Feature: Manual

Packaging data

Package width: 103 mm
Package depth: 80 mm
Package height: 60 mm
Package weight: 216 g

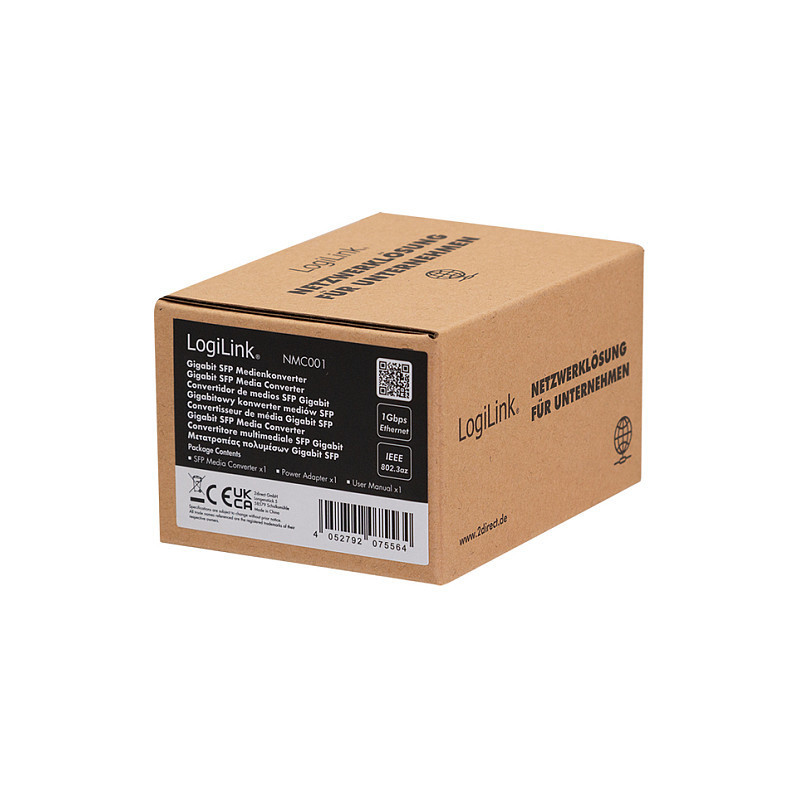

Package type: Box
