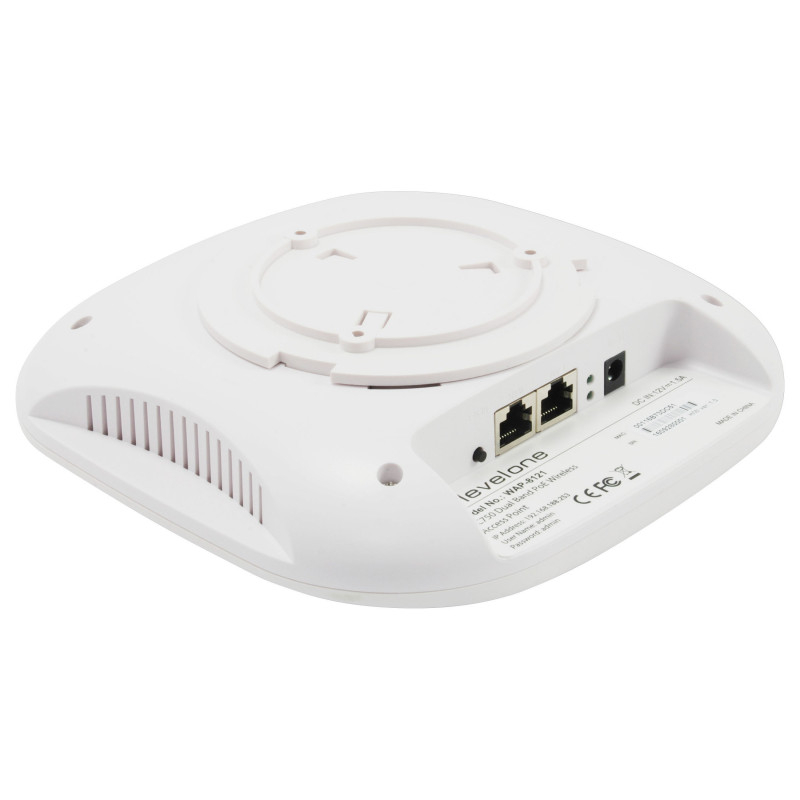

LevelOne WAP-8121 wireless access point

LevelOne AC750 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed. 2.4 GHz, 5 GHz, Maximum data transfer rate: 433 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Provides up to 8 SSIDs to separate network traffic and enhance security
- Auto Channel Selection for low interference band

"The LevelOne WAP-8121 is a sophisticated, fast dual-band managed wireless access point, offering up to 450 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. It provides a combined throughput of 750 Mbps using 802.11ac standards. The advanced wireless access point also supports all legacy wireless devices on 802.11a/b/g/n. WAP-8121 performs automatic testing and assigns channels dynamically to detect conflicts and channel interference, constantly optimising performance in the background. The device runs on PoE, negating the need for electrical wiring.
Central management allows for adjustments to the RF (Radio Frequency) (according to )the environment, further optimising the performance of the network by adjusting and balancing workloads as well as detecting areas of weak reception. it provides WEP, WPA-PSK, WPA-TKIP, and WPA2 AES secured connectivity for securing the Wireless Area Network and to prevent unauthorized access. The device supports up to four(Eight) SSIDs allowing unique configuration settings for different network regions. The sophisticated and stylish access point mounts on a ceiling, providing a low-profile, highly effective networking solution."

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 433 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5.825 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of users: 80 user(s)
Channels quantity: 36 channels
Feature: Automatic channel selection
Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Flow control support
Feature: Quality of Service (QoS) support

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) features: SSID broadcast on/off
Number of SSID supported: 8

Management features

Feature: Web-based management
Switch type: Managed
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45), Wi-Fi
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 15 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Power, WLAN

Antenna

Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 3
Antenna gain level (max): 15 dBi

Certificates

Certification: CE/FCC

Weight & dimensions

Width: 189 mm
Depth: 38.5 mm
Height: 189 mm
Weight: 326 g

Packaging data

Package width: 214 mm
Package depth: 62 mm
Package height: 317 mm
Package weight: 680 g

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): -20 - 50%
Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): 5 - 90 °C
Storage relative humidity (H-H): 10 - 90%

Logistics data

Harmonized System (HS) code: 85176990
