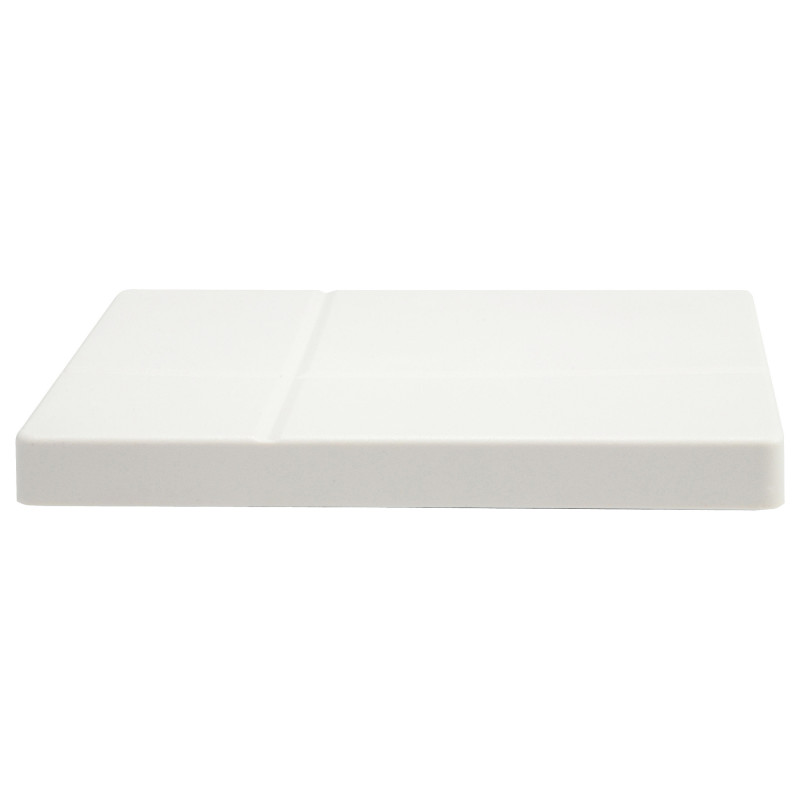

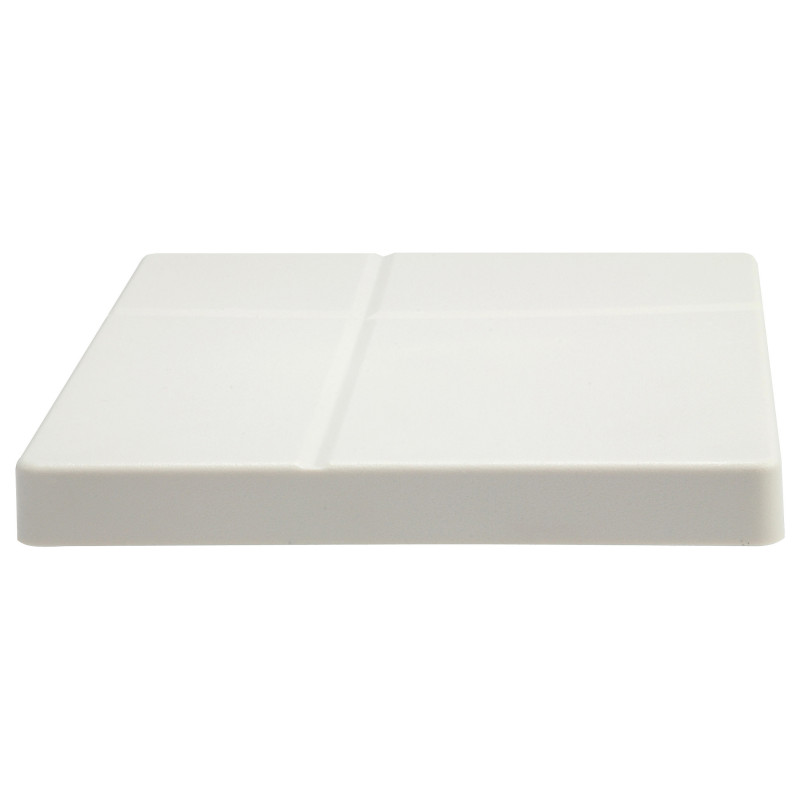

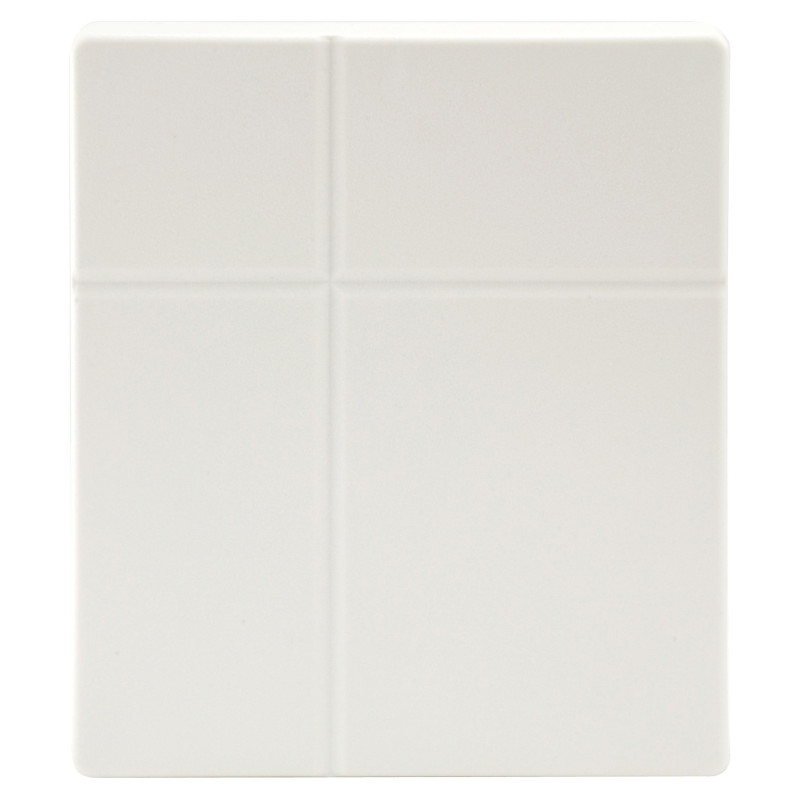

LevelOne WAN-9151 network antenna

LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor. Antenna gain level (max): 15 dBi, Frequency band: 5.1 ~ 5.9 GHz, Networking standards: IEEE 802.11a, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Dual polarization. Width: 137.5 mm, Depth: 162.5 mm, Height: 16 mm. Package width: 161 mm, Package depth: 218 mm, Package height: 74 mm. Country of origin: Taiwan, Master (outer) case width: 370 mm, Master (outer) case length: 450 mm

The LevelOne WAN-9151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.

- Provides 15dBi directional operation
- Directional operation provides extended point to point coverage
- For IEEE 802.11a/n Wireless applications in 5 GHz frequency range
- Dual-Polarization to avoid interference
- Low wind loading

Performance

Frequency band: 5.1 ~ 5.9 GHz
Networking standards: IEEE 802.11a, IEEE 802.11n
Impedance: 50 Ω
Horizontal beam width: 22°
Vertical beam width: 15°
Antenna gain level (max): 15 dBi

Features

Antenna type: Directional antenna

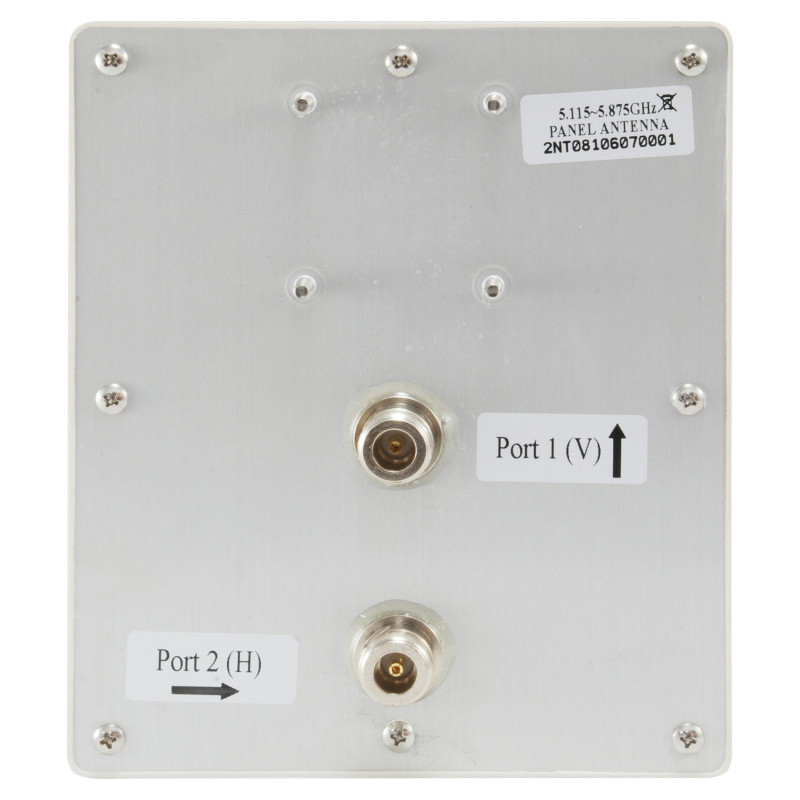

Antenna connector type: N-type
Polarization: Dual polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Grey
Protection features: Dust resistant, Snow resistant, Water resistant
Survival wind speed: 180 km/h
Purpose: Indoor & outdoor
Maximum cable loss with connectors: -10 dB

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 137.5 mm
Depth: 162.5 mm
Height: 16 mm
Weight: 208 g

Packaging data

Package width: 161 mm
Package depth: 218 mm
Package height: 74 mm
Package weight: 726 g
Package type: Box

Packaging content

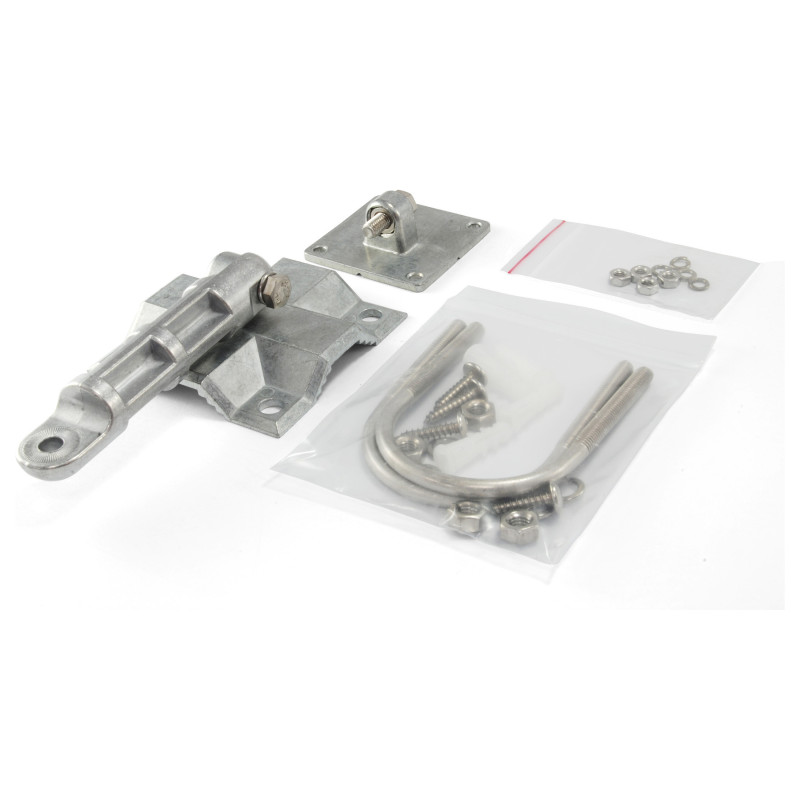

Feature: Mounting kit
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85177100
Country of origin: Taiwan
Master (outer) case width: 370 mm
Master (outer) case length: 450 mm
Master (outer) case height: 340 mm
Master (outer) case gross weight: 15.5 kg
Products per master (outer) case: 20 pc(s)
