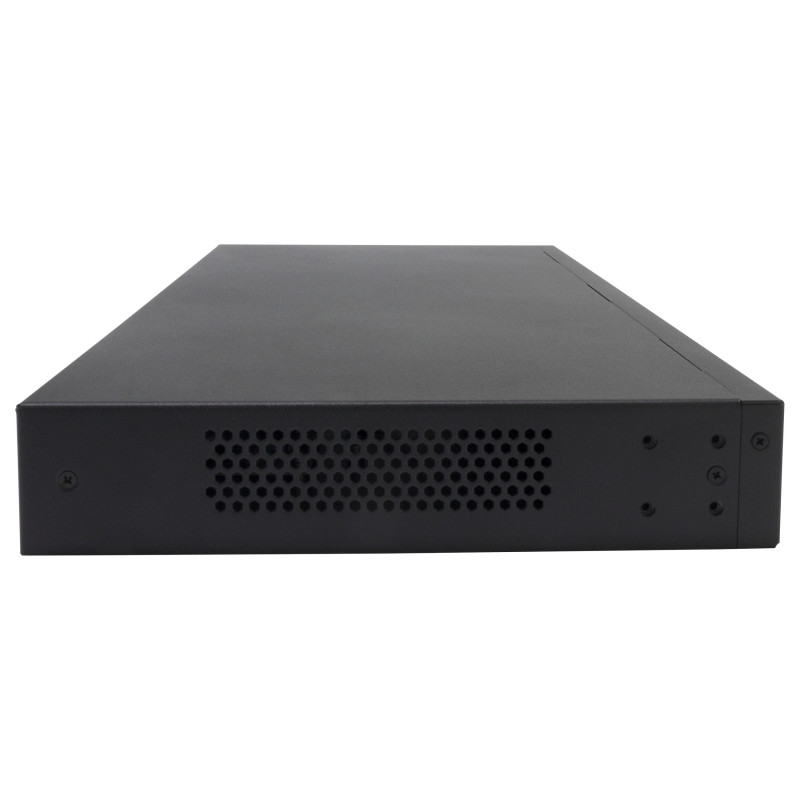

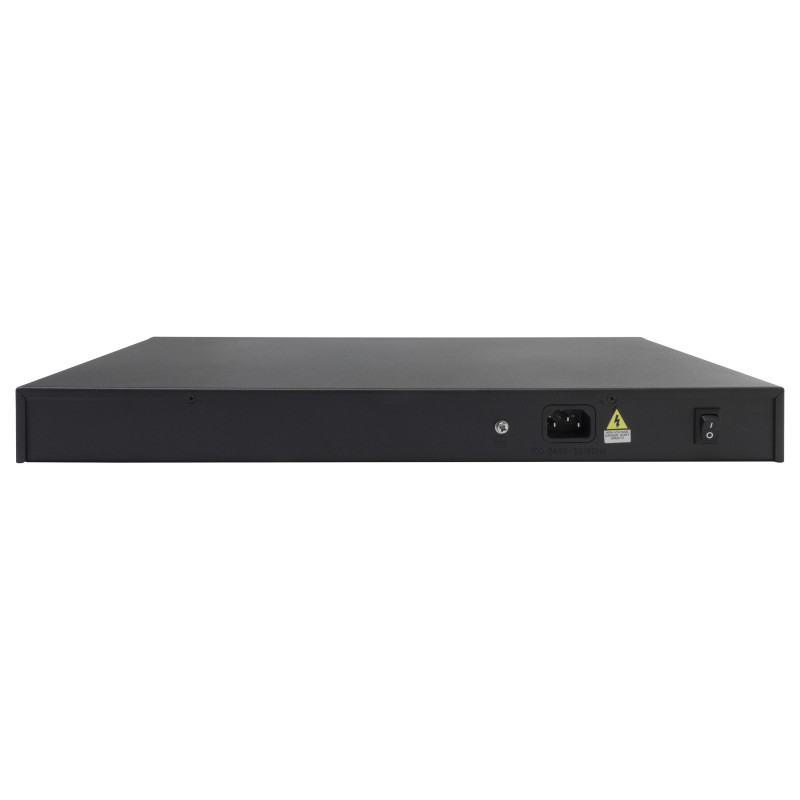

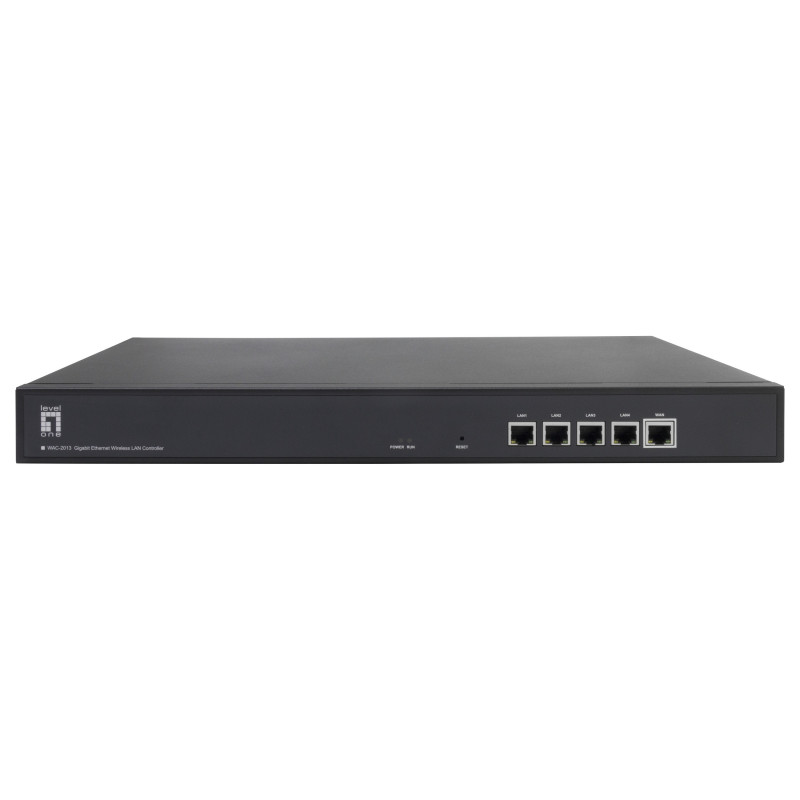

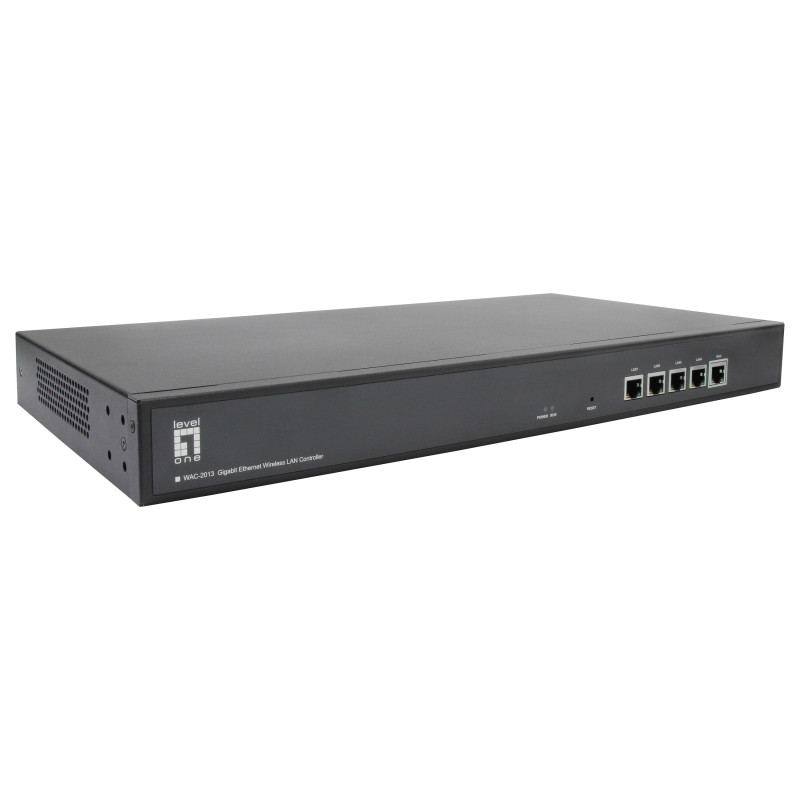

LevelOne WAC-2013 gateway / controller

LevelOne Gigabit Ethernet Wireless LAN Controller, Manage up to 256 APs. Product colour: Black, Enclosure material: Metal, LED indicators: Activity, Link, Power. Internal memory: 512 MB, Flash memory: 16 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X). WAN connection: Ethernet (RJ-45). Input voltage: 100 - 240 V, Input frequency: 50/60 Hz
The LevelOne WAC-2013 is a Gigabit WLAN controller designed for use in small to medium-sized networks in SMEs, schools, guesthouses, hotels, and apartments. Central management of up to 256 APs provides complete wireless security and service solutions for any small to medium-sized wireless network.
The WAC-2013 integrates a variety of features that allow the administrator to easily build the AP configuration. Including tag-based VLAN settings, AP firmware updates, as well as monitoring of the number and status of connected APs and users.
The WAC-2013 controller is also an Internet gateway with a robust firewall to protect against intruders, 1 WAN and 4 LAN ports at Gigabit speed enable fast and reliable data distribution in the network.
The LevelOne WAC-2013 also supports real-time control of signal strength and interference information. With the results, the WAC-2013 automatically regulates network utilization, output power, RF coverage, and channel distribution of APs to optimize wireless coverage, roaming of end devices, and throughput.

Design

Product colour: Black
Enclosure material: Metal
LED indicators: Activity, Link, Power

Performance

Control display unit: No
Internal memory: 512 MB
Flash memory: 16 MB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)

Ports interfaces

Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45)

Management features

Quality of Service (QoS) support: Yes

Power

Input voltage: 100 - 240 V
Input frequency: 50/60 Hz

Weight dimensions

Width: 440 mm
Depth: 221 mm
Height: 44 mm
Weight: 2.1 kg

Packaging data

Package width: 500 mm
Package depth: 285 mm
Package height: 80 mm
Package weight: 2.98 kg
Package type: Box

Packaging content

Quick start guide: Yes
Cables included: AC

Operational conditions

Operating temperature (T-T): -20 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Country of origin: China
