LevelOne VDS-2201 network media converter

LevelOne Gigabit Ethernet over VDSL2. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Maximum transfer distance: 3000 m. Product colour: Black, Housing material: Metal. Connectivity technology: Wired. Output voltage: 12 - 24 V, Power consumption (typical): 4.5 W

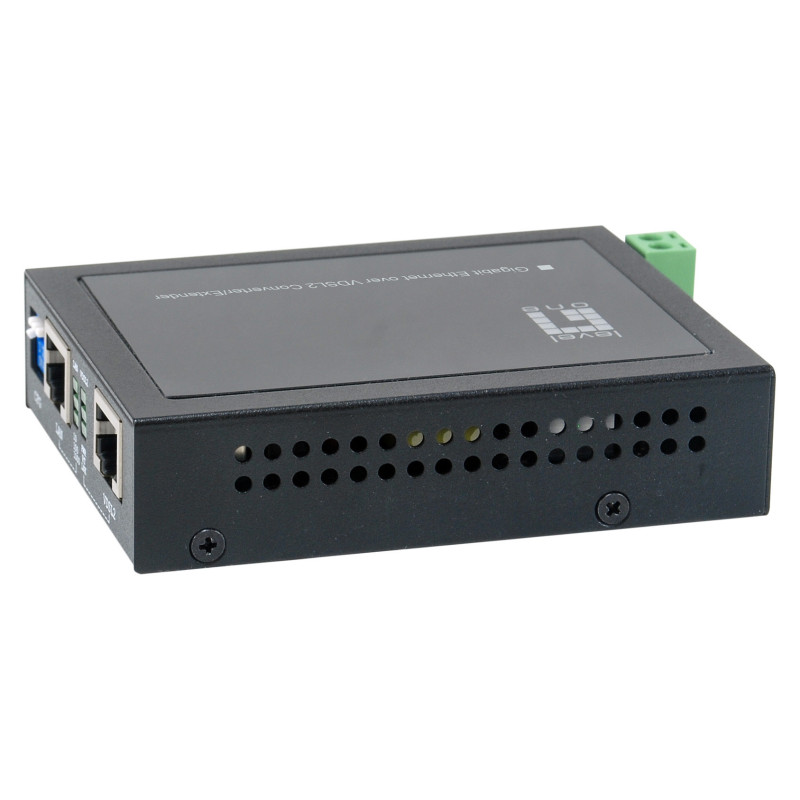

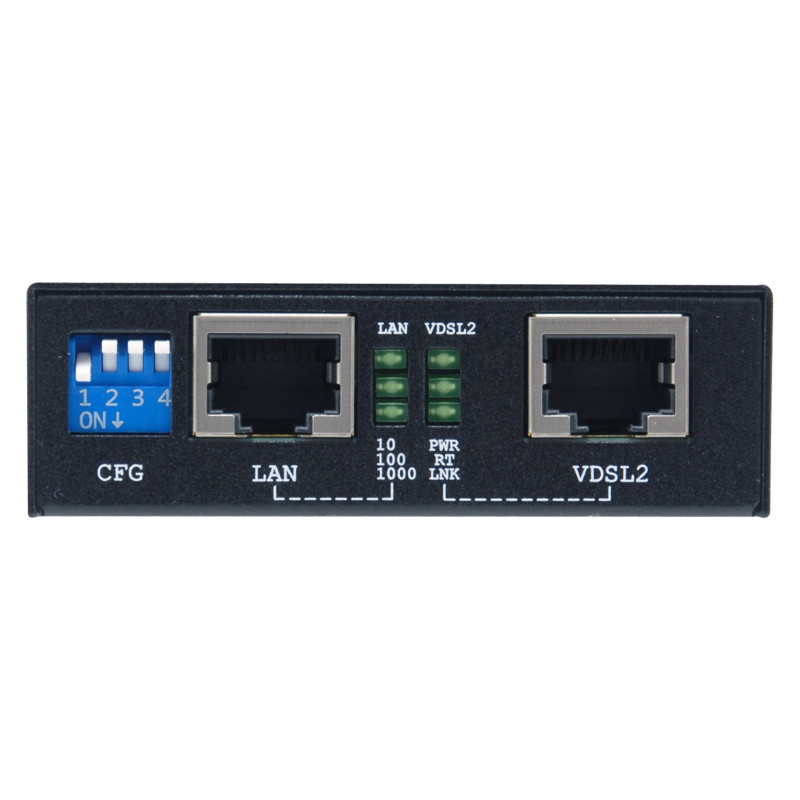

VDS-2201 is an Industrial Ultra-Speed VDSL2 Extender that supports VDSL2 profile 35b/30a/17a with a remarkable aggregated bandwidth of over 300Mbps. It delivers fiber optic-like speeds on existing copper infrastructure, enabling a good alternative in the place where fiber is not economical to deploy. VDS-2201 is equipped with a Gigabit Ethernet port (RJ45 connector) and one VDSL2 port (RJ45 connector) in the metal enclosure for easy installation in a hardened environment. The symmetric configuration can be applied as a long-reach Ethernet connection up to 3,000 meters, while an Asymmetric configuration can be used for other services like video streaming or IP surveillance services which require high traffic flow in a uni-direction configuration

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum transfer distance: 3000 m

Features

Feature: Plug and Play
LED indicators: Yes
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
RJ-11 ports quantity: 1

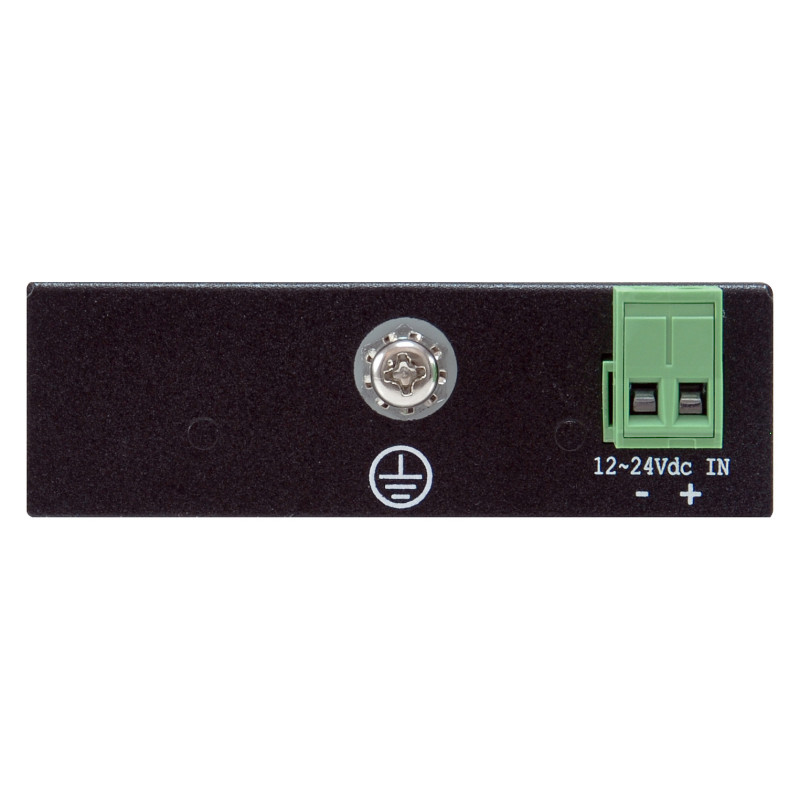

Feature: Terminal block included

Power

Output voltage: 12 - 24 V
Power consumption (typical): 4.5 W
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 94.5 mm
Depth: 72.5 mm
Height: 23 mm
Weight: 220 g

Operational conditions

Operating temperature (T-T): -20 - 65 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%

Packaging data

Package width: 143 mm
Package depth: 132 mm
Package height: 92 mm
Package weight: 350 g
Package type: Box

Certificates

Compliance certificates: CE, UKCA

Logistics data

Country of origin: Taiwan
Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet gross height: 149 cm
Customs product code (TARIC): 8517620000
Harmonized System (HS) code: 8517620000
Master (outer) case width: 434 mm
Master (outer) case length: 307 mm
Master (outer) case height: 482 mm
Master (outer) case gross weight: 11.7 kg
Products per master (outer) case: 30 pc(s)
