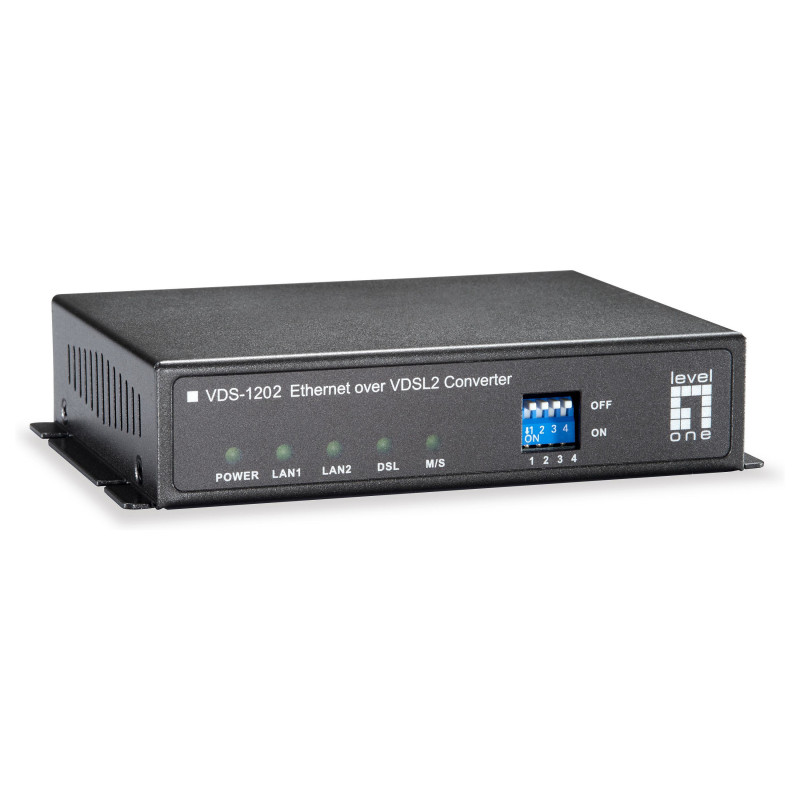

LevelOne VDS-1202 network media converter

LevelOne VDS-1202. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 1500 m. LED indicators: DSL, LAN, Power, Product colour: Grey, Housing material: Metal. Connectivity technology: Wired. Input voltage: 12 V, Input current: 1 A

Why convert Ethernet to VDSL?
The LevelOne VDS-1202 converts your data from Ethernet to VDSL, making it easy to send high-bandwidth data over long distances. This new technology uses traditional twisted-pair telephone wiring instead of expensive Cat.5 cables.

New technology = cost-effective deployment
When using VDSL2 (Very High Speed Digital Subscriber Line) technology, users can transmit data up to 250 meters without having to add expensive Ethernet switches or cables to extend the network reach. And with 100Mbps downstream and 100Mbps upstream, VDSL2 technology provides ample space for all high bandwidth usage.

Fast transfer speeds? Yes.
Easy Installation? Yes.
VDS-1202 works especially well in applications where traditional copper phone lines are already installed: apartments, condominiums, hotels, university campus, etc. There is no need to run expensive Ethernet cables and installers can easily integrate VDSL technology into the existing network. The VDS-1202 is plug and play ready and requires minimum installation time.

Customized settings
Each VDS-1202 also allows for customized settings for advanced use. Using a built-in DIP switch, users can customize the behavior of the device to match the desired network configuration.

Annex B
For networks that utilize ISDN telephone systems.

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Data transfer rate: 100 Mbit/s
Auto MDI/MDI-X: Yes
Duplex system: Full, Half
Modulation: DMT

Performance

Maximum transfer distance: 1500 m

Features

Internal: No
LED indicators: DSL, LAN, Power
Product colour: Grey
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 2
RJ-11 ports quantity: 2
DC-in jack: Yes

Power

Input voltage: 12 V
Input current: 1 A

Weight & dimensions

Width: 90 mm
Depth: 120 mm
Height: 28 mm
Weight: 330 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 5 - 95 °C

Packaging content

AC adapter included: Yes
Quick installation guide: Yes

Packaging data

Package width: 150 mm
Package depth: 235 mm
Package height: 80 mm
Package weight: 600 g
Package type: Box

Certificates

Certification: CE, FCC, LVD, JATE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
