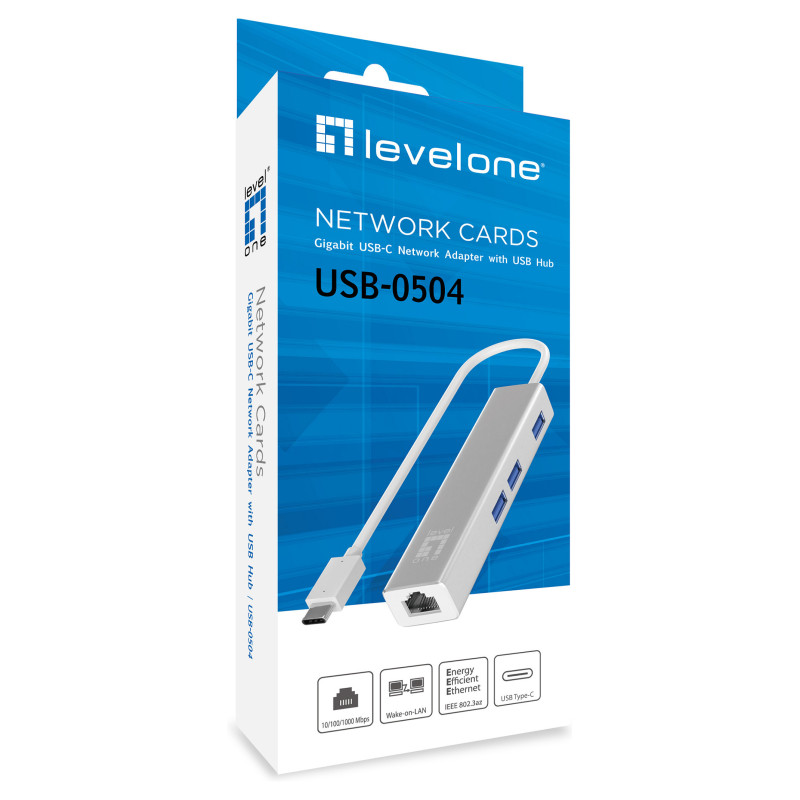

LevelOne USB-0504 network card

LevelOne Gigabit USB-C Network Adapter with USB Hub. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Silver

The LevelOne USB-C Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don't come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0504 easily does the job, all through your USB-C port. The USB-0504 also combines a regular USB hub. So you can connect external USB peripherals, such as a digital camera, printer or pen drive. The USB-0504 establishes a direct point-to-point contact between the hub and the adapter that plugged into your PC.

The USB-0504 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

This makes the USB-0504 the best choice for reliability, efficiency and standard compliance.

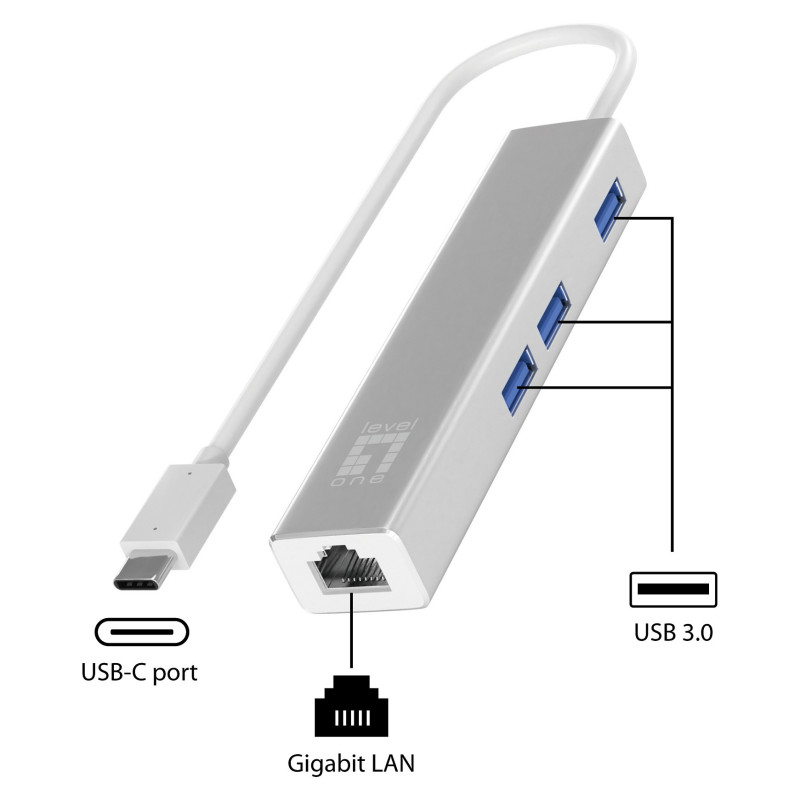

Ports & interfaces

Connectivity technology: Wired
Host interface: USB Type-C
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 3
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex

Design

Component for: PC/Laptop
Product colour: Silver
Chipset: Realtek RTL8153
Feature: Plug and Play
Country of origin: China

Power

Feature: USB powered

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -5 - 80 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 110 mm
Depth: 23.5 mm
Height: 16.5 mm
Weight: 44 g

Packaging data

Package width: 71 mm
Package depth: 20 mm
Package height: 152 mm
Package weight: 64 g

Packaging content

Feature: Quick installation guide

Technical details

Compliance certificates: CE, RoHS
