LevelOne USB-0301 network card

LevelOne Fast Ethernet USB Network Adapter. Connectivity technology: Wired, Host interface: RJ-45, Interface: USB. Maximum data transfer rate: 100 Mbit/s. USB powered. Product colour: Black

Fast and easy connection with USB

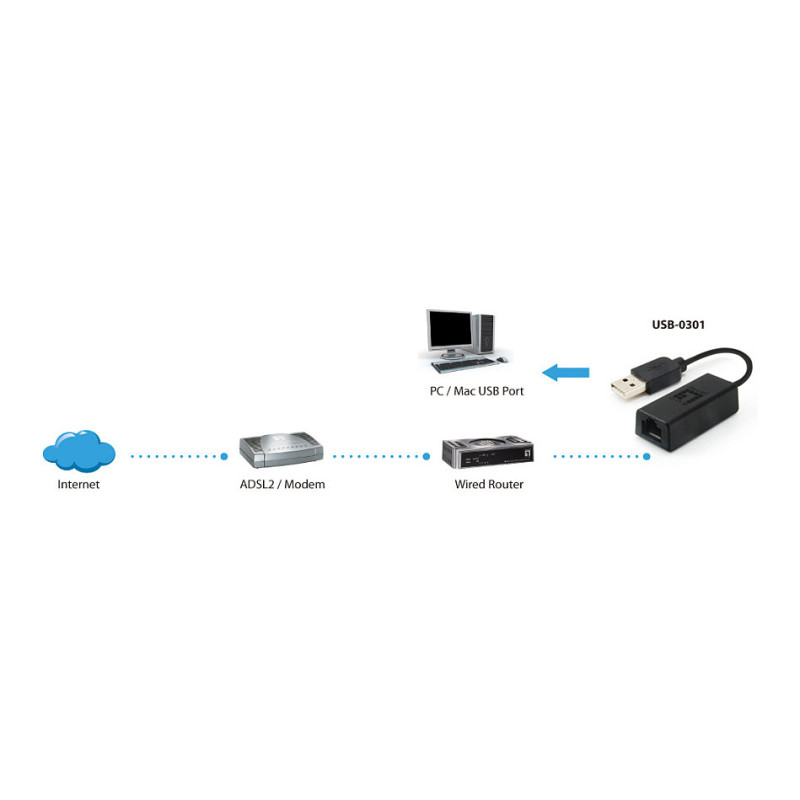

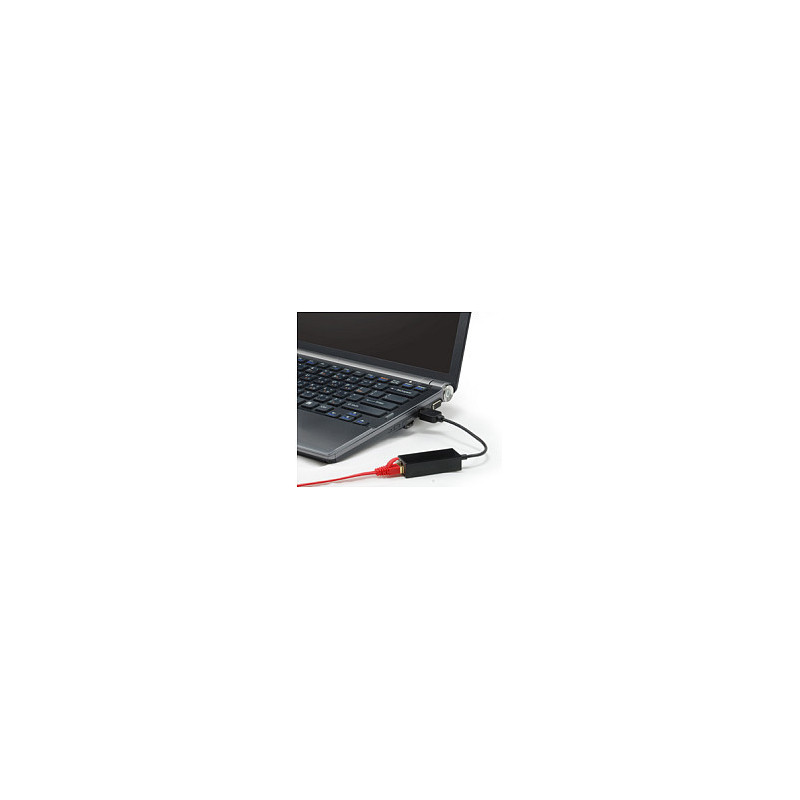

LevelOne USB Fast Ethernet Adapter allows you to connect to the internet easily through the built-in port on your laptop or gaming console. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook Air (100% Mac compatible) or other computers that may have wireless built-in but don't come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. USB-0301 easily does the job, all through your USB port.

Reliable, efficient and standards compliant
USB-0301 is USB 1.0, 1.1, and 2.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3 and 802.3u, allowing you to take advantage of the Fast Ethernet speeds of up to 100 Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

- Provides an Internet connection through a single USB port
- 10/100Mbps wire speed transmission and reception
- Compact, lightweight design
- Supports IPv4/IPv6 network operation
- Simple Plug and Play installation
- No additional power supply required
- Supports Windows XP / Vista / 7 / 8, Mac OS X 10. 5 / 6 / 7 / 8 / 9

Ports & interfaces

Connectivity technology: Wired
Host interface: RJ-45
Interface: USB
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex

Design

Product colour: Black
Country of origin: China
Certification: CE, FCC

Power

Output voltage: 5 V
Power consumption (typical): 0.5 W
Power consumption: 500 mA
Feature: USB powered

System requirements

Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T): 10 - 40 °C
Storage temperature (T-T): 10 - 80 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 48 mm
Depth: 21 mm
Height: 14.7 mm
Weight: 45 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 171 mm
Package depth: 152 mm
Package height: 30 mm
Package weight: 25 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
