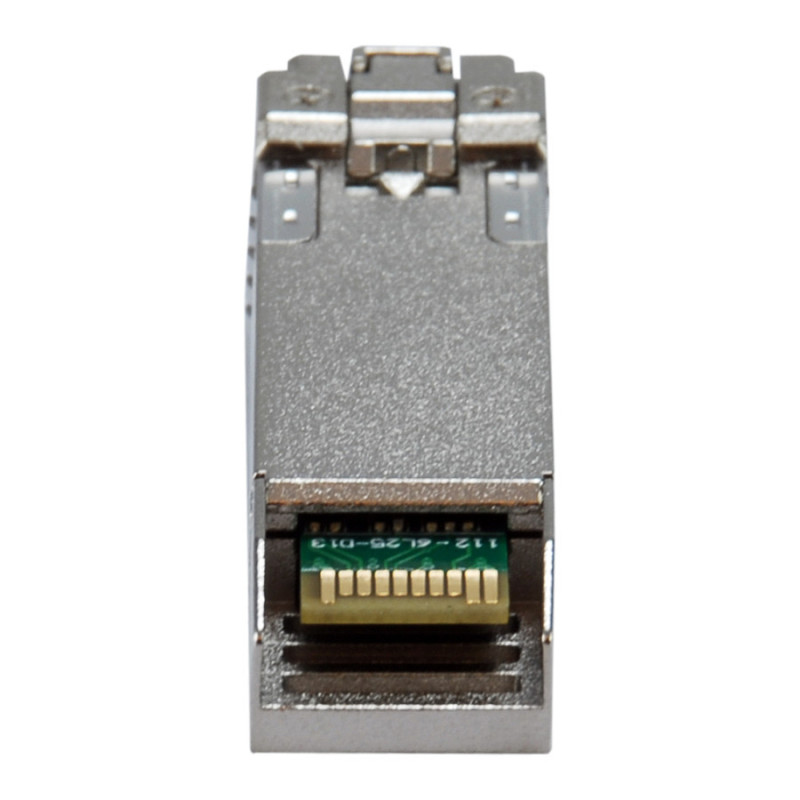

LevelOne SFP-4210 network transceiver module

LevelOne 1.25Gbps Single-mode Industrial SFP Transceiver, 10km, 1310nm, -40°C to 85°C. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver. Maximum voltage: 3.47 V, Maximum current: 0.3 A, Power consumption (typical): 0.8 W. Compliance certificates: RoHS, Certification: CE, FCC. Width: 14 mm, Depth: 57 mm, Height: 12 mm

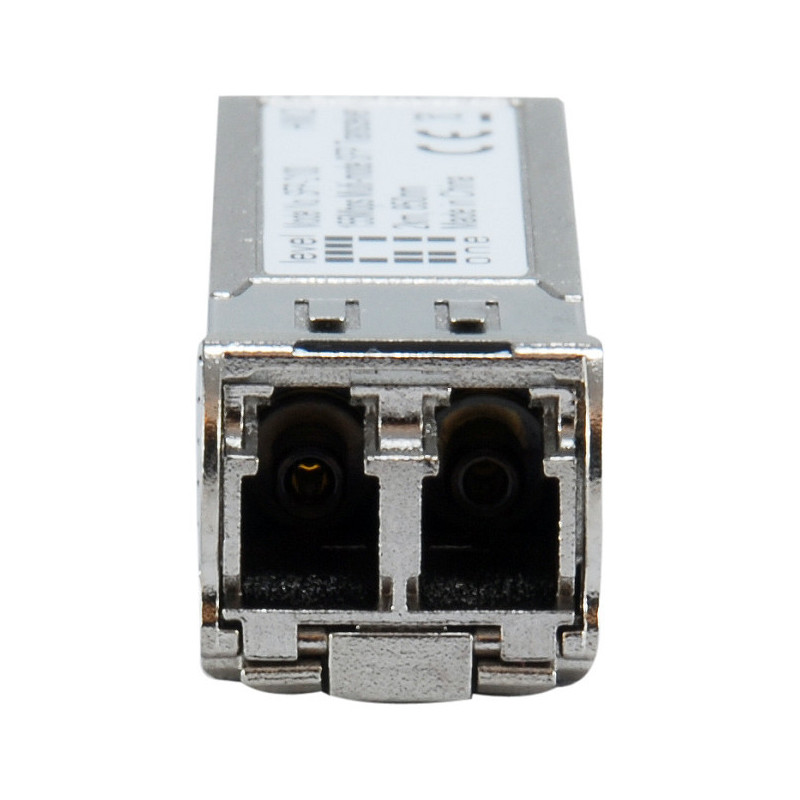

LevelOne SFP-4210 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 10km. The SFP-4210 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has an LC port.

This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Tx power (min): -9.5 dBmW
Tx power (max): -3 dBmW
Rx power (min): -25 dBmW
Rx power (max): 2 dBmW
Networking standards: IEEE 802.3z
Copper ethernet cabling technology: 1000BASE
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-swap

Power

Maximum voltage: 3.47 V
Maximum current: 0.3 A
Power consumption (typical): 0.8 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 14 mm
Depth: 57 mm
Height: 12 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Feature: User guide
Package width: 65 mm
Package depth: 106 mm
Package height: 20 mm
Package weight: 39 g
Package type: Box

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 166.9 cm
Products per pallet: 35 pc(s)
Master (outer) case width: 310 mm
Master (outer) case length: 375 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 268 mm
Master (outer) case gross weight: 6.67 kg
Products per master (outer) case: 150 pc(s)
Country of origin: China
