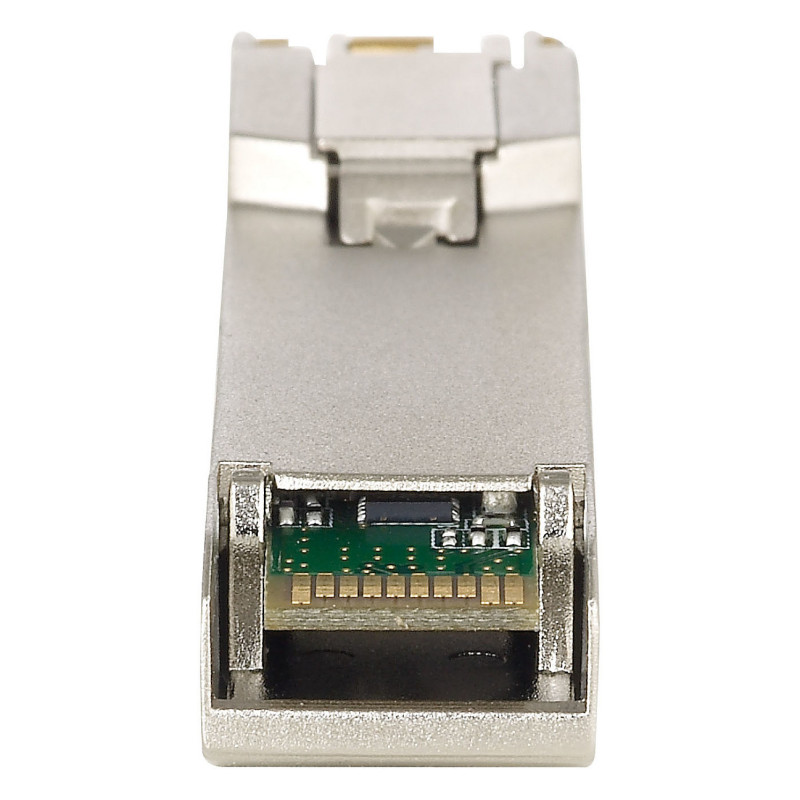

LevelOne SFP-3841 network transceiver module

LevelOne 1.25Gbps Copper SFP Transceiver, 100m, RJ45. SFP transceiver type: Copper, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 4 V, Maximum current: 0.375 A. Compliance certificates: RoHS, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Package width: 106 mm, Package depth: 20 mm, Package height: 65 mm

LevelOne SFP-3841 is a Copper SFP transceiver that provides enhanced flexibility to system designers. It converts 1000BASE-X optical Ethernet port to a copper Ethernet port (1000-BASE-T) to support a transfer rate of up to 1.25 Gbps at a distance of up to 100 meters over unshielded twisted-pair category 5 cable.

- Up to 1.25Gbps bi-directional data links
- Hot-pluggable SFP footprint
- Extended cased temperature range(0°C to +70 °C)
- Fully metallic enclosure for low EMI
- Low power dissipation (1.05 W typical)

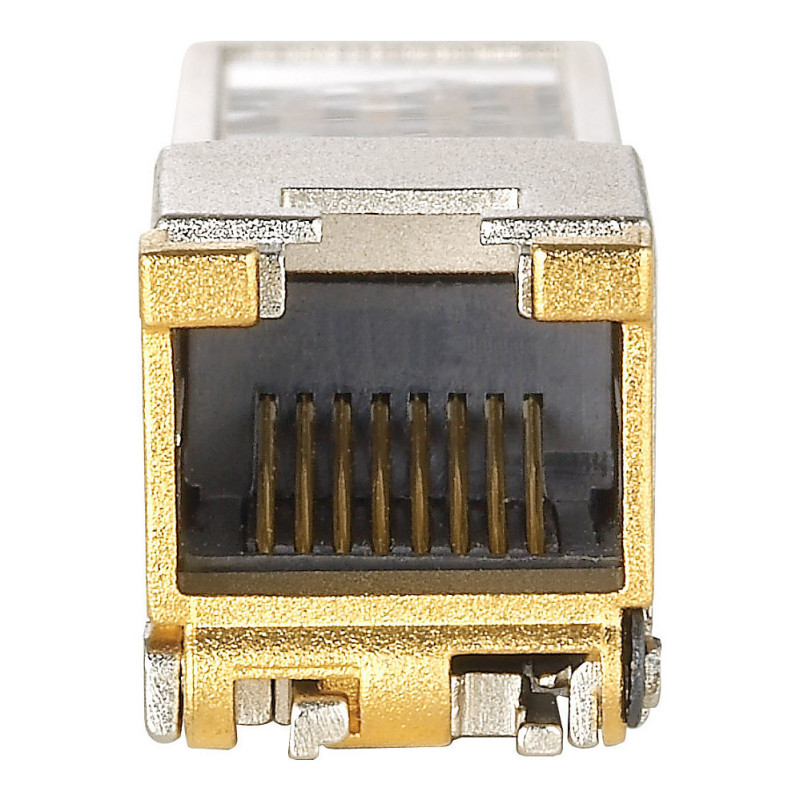

- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 1000 BASE-T operation in host systems with SERDES interface

Performance

SFP transceiver type: Copper
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Maximum transfer distance: 100 m
Networking standards: IEEE 802.3, IEEE 802.3ab
Ethernet LAN (RJ-45) ports: 1

Features

Feature: Hot-Plug support
Feature: Hot-swap

Power

Input voltage: 3.3 V
Maximum voltage: 4 V
Maximum current: 0.375 A

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 57 mm
Depth: 12 mm
Height: 13.7 mm
Weight: 20 g

Packaging data

Package width: 106 mm
Package depth: 20 mm
Package height: 65 mm
Package weight: 35 g

Logistics data

Harmonized System (HS) code: 85369010
Country of origin: China
